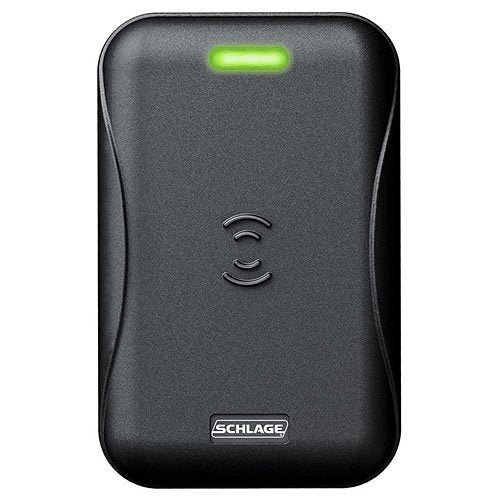

Schlage MT15 Multi-Technology Single Gang Wall Mount Reader

Product Description

The Schlage MT15 is a wall-mounted multi-technology reader designed to enhance access control systems. This device supports both 125 kHz proximity and 13.56 MHz smart cards within a single unit. An ideal solution for upgrading your system, it allows for an effortless shift from legacy technologies to newer, encrypted card technology without the need for hardware replacement.

• Supports NFC-enabled mobile devices for versatile access control.
• Incorporates a quick-connect cable for simple installation, accommodating various environments.
• Backed by a limited lifetime warranty ensuring reliability and customer satisfaction.

Product Highlights

The Schlage MT15 reader is compatible with a range of credentials including MIFARE Classic, Plus, DESFire EV1, and EV2, as well as the card serial number of other manufacturers' smart credentials. It features Wiegand and RS-485 outputs for seamless integration with most access control panels.

Color: Black
Material: PBT Polymer
Standards: ISO 14443A, 14443B, 15693

Technical Specifications

• Physical Dimensions: 5.1 inches x 3.25 inches x 0.76 inches
• Frequency: 13.56 MHz and 125 kHz
• Power: 5-16 VDC
• Operating Temperatures: -40 to 158F
• Read Range: Proximity up to 5 inches, MIFARE up to 4 inches
