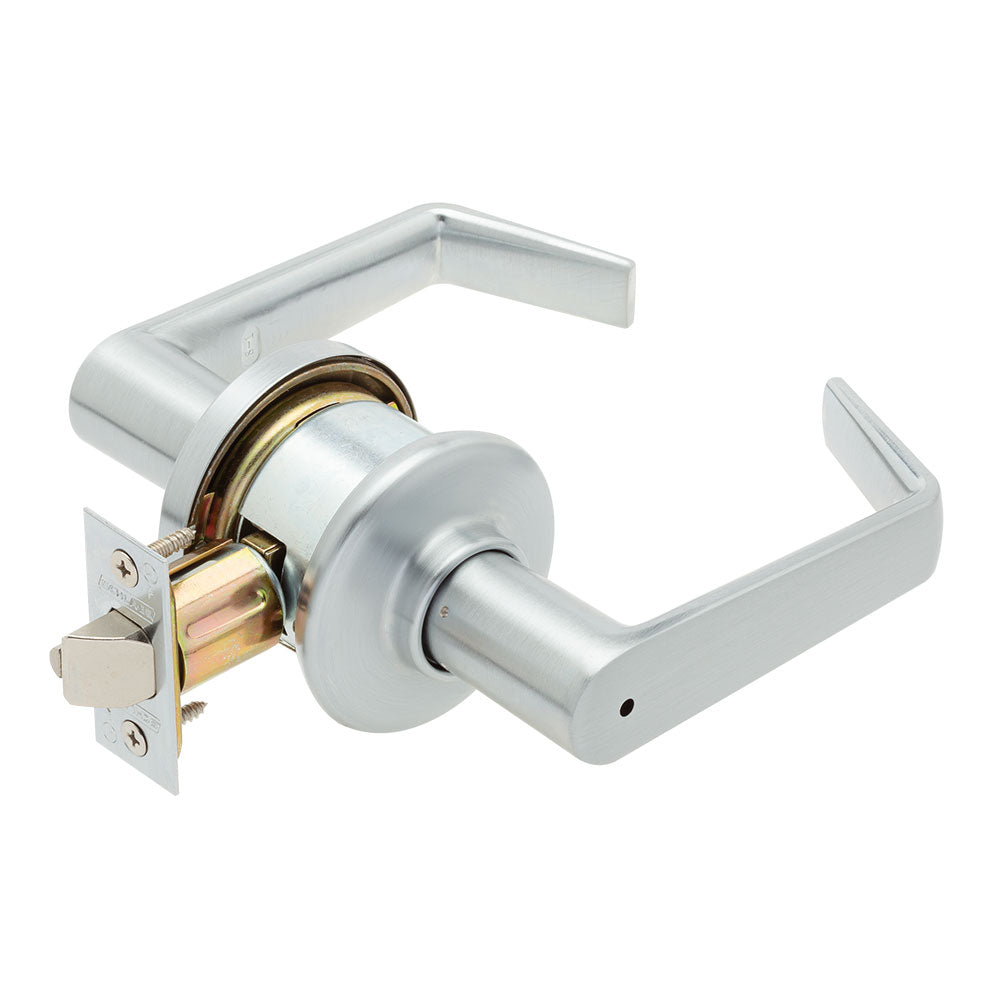

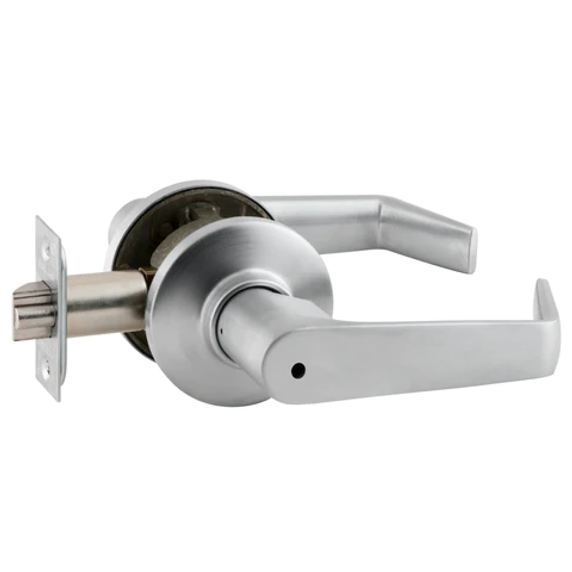

Schlage Lock S40D-SAT-626 Saturn Privacy Lever Lock

Product Description

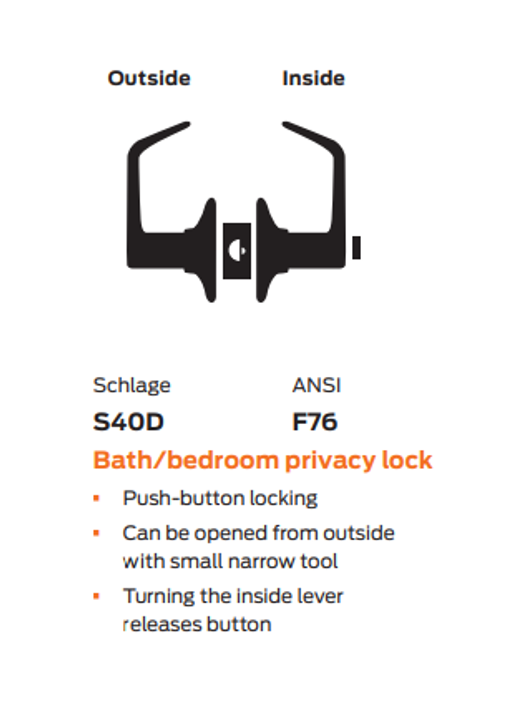

The Schlage Lock S40D-SAT-626 is a Grade 2 tubular lever lock. This lock is designed for privacy in bathrooms and bedrooms. It features a Saturn lever design with a push-button locking mechanism. This lock can be opened from the outside using a small tool. The inside lever releases the button for quick access. It is suitable for medium-duty applications.

• Exceeds ANSI/BHMA Grade 2 requirements
• UL listed for three-hour fire door compliance
• Adjustable backset fits either 2-3/8 inches or 2-3/4 inches

Product Highlights

The Schlage Lock S40D-SAT-626 offers reliable privacy and security for residential spaces. Its robust design meets various safety standards.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Privacy

Technical Specifications

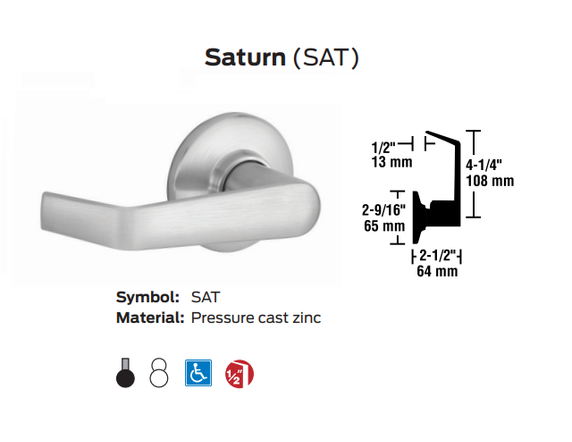

• Lever Design: SAT (Saturn)
• Backset: Adjustable from 2-3/8 inches to 2-3/4 inches
• Latch Dimensions: 1 inch x 2-1/4 inches
• Usage: Medium Duty
• ANSI/BHMA Standard: Meets or exceeds A156.2 Series 4000, Grade 2
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL/cUL listed for three hours
• Door Thickness: Fits doors from 1-3/8 inches to 1-7/8 inches
