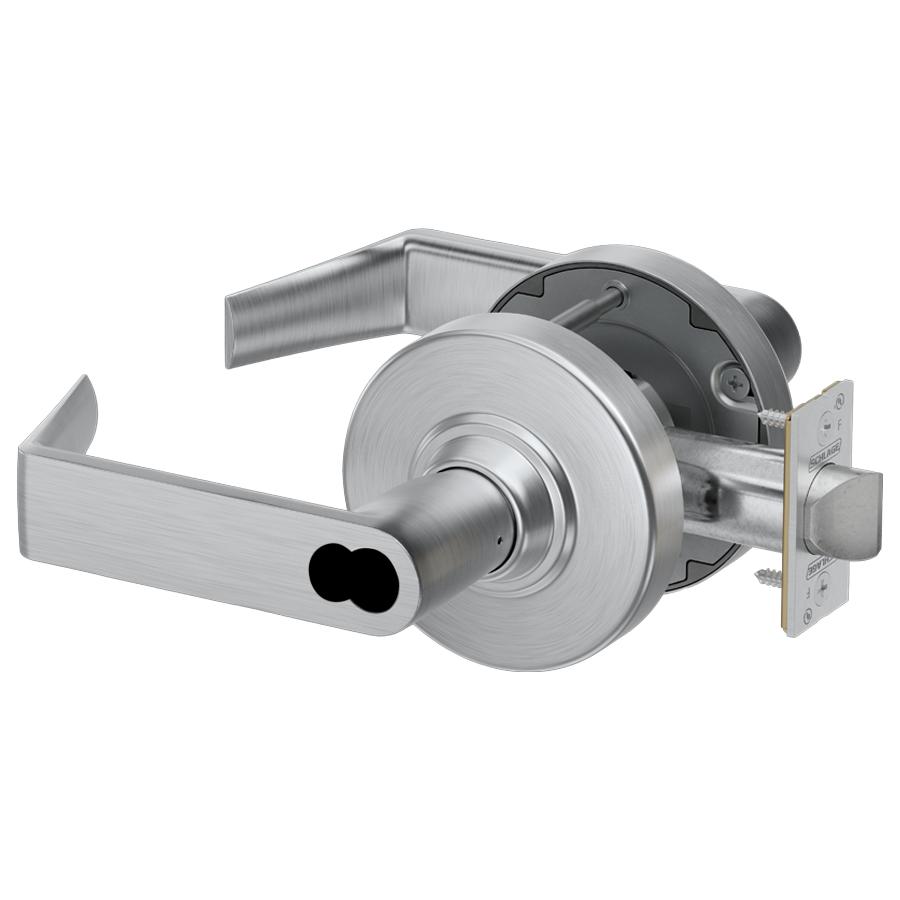

Schlage Lock PC70-B-RHO-626 Grade 1, Cylindrical Classroom Lock Rhodes Lever, SFIC Small Format IC Prep, Less Core, 2-3/4 inches Backset, ANSI Strike

Product Description

The Schlage Lock PC70-B-RHO-626 is a Grade 1 cylindrical classroom lock featuring a Rhodes lever and SFIC small format IC prep. It is designed for commercial real estate, retail, multifamily, and hospitality industries. The lock has a 2-3/4" backset and ANSI strike. PC series locks meet Schlage’s quality standards and offer aesthetic options.

• Certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication

Product Highlights

This Schlage Lock cylindrical classroom lock offers exceptional quality and style. It is easy to install and suites with other Allegion products.

Product Information

Standard Information

• Brand: SCHLAGE LOCK
• Manufacturer Part Number: PC70-B-RHO-626

Technical Specifications

• Material: Modular design of zinc and steel components plated for corrosion protection
• Door thickness: Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified
• Handing: Non-handed
• Levers: Standard: Pressure cast zinc, plated to match product finish specification in eight designs - Athens (ATH), Boardwalk (BRK), Broadway (BRW), Latitude (LAT), Longitude (LON), Rhodes (RHO), Sparta (SPA), and Tubular (TLR)
• Rose: Wrought brass, plated to match product finish specification
• Backset: Standard: 2-3/4" (70 mm). Optional: 2-3/8", 3-3/4", 5" (60, 92, 127 mm)
• Latch bolt: Standard: 1/2" (12 mm) throw spring latch or deadlatch (stainless steel). Optional: 3/4" (19 mm) throw anti-friction deadlatch available for pairs of doors
• Strike: Standard: ANSI curved lip: 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm). Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options
• Faceplate: Standard: Square corner, 1-1/8" x 2-1/4" (28 mm x 57 mm) with screws. Optional: Radius and square corner with 1" (25 mm) or 1-1/8" Front x 2-1/4" (57 mm)
• Formats: Standard: 6-pin Conventional cylinder with two patented keys. Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit Sargent. Not available on PC70 classroom function.
• Access security: Standard: 6-pin, patented Everest 29 S123 keyway. Optional: Open, restricted, Primus, master keying, and construction keying
• ANSI/BHMA: All PC series comply with A156.2-2022, series 4000 grade 1 cylindrical locks
• Finishes: 613 - Oil rubbed bronze 619 - Satin nickel 622 - Matte black 625 - Bright chrome 626 - Satin chrome 643e - Aged bronze
