Schlage Lock ND96EU-LD-RHO-626 Grade 1 Electric Lock/Unlock (EL/EU) Storeroom Vandlgard

Product Description

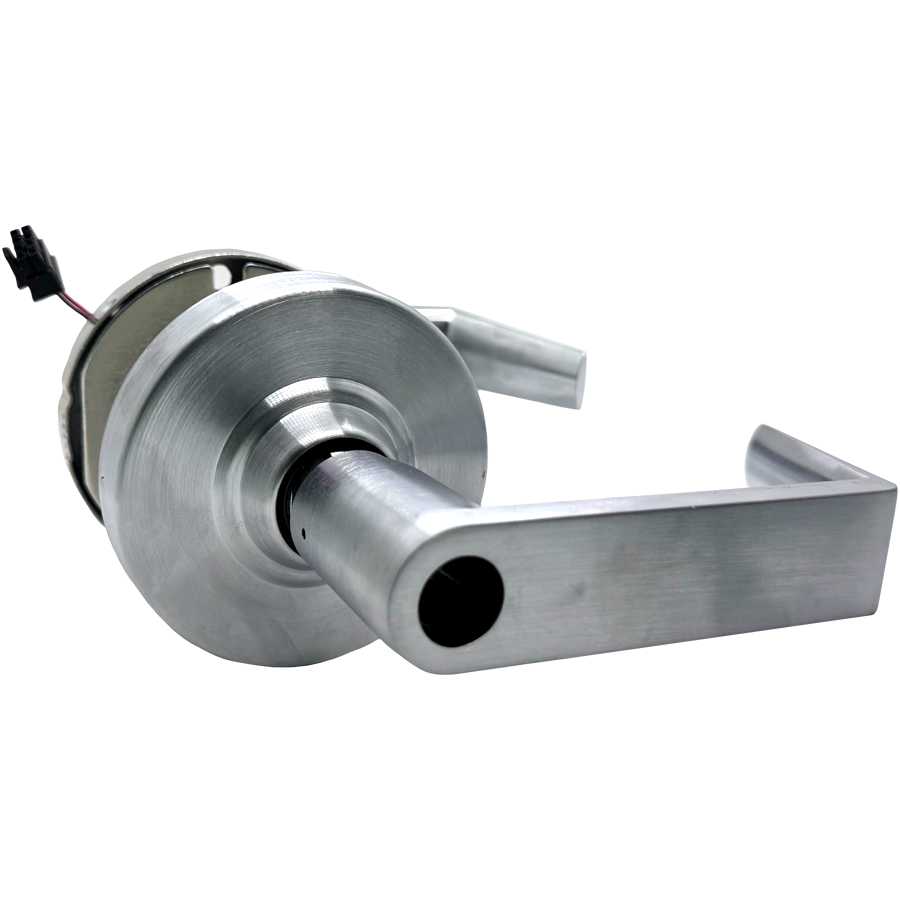

The Schlage Lock ND96EU-LD-RHO-626 is a Grade 1 electric lock designed for storeroom Vandlgard applications. This cylindrical lock features a Rhodes lever and provides secure access control. Its modular design supports various installations, making it suitable for new constructions and retrofits.

• Withstands 3,100 in-lb of leverage torque for high durability.
• Resists pry bar attacks with an offset lever pull tested up to 1,600 lbs.
• Endures near-zero droop or wobble after 16 million operational cycles.

Product Highlights

This lock is built to offer reliability and enhanced security, featuring a patented keyway and adaptable voltage settings.

Product Information

Standard Information

• Material: Zinc and steel components with corrosion-resistant plating
• Handing: Non-handed design

Technical Specifications

• Door Thickness: Standard from 1-5/8 inches to 2-1/8 inches
• Backset: Standard at 2-3/4 inches, with optional sizes available
• Latch Bolt: 1/2 inch throw spring latch or deadlatch options
• Strike Size: ANSI compliant, with various options available
• Input Voltage: Autodetecting 12-24V DC
• Operating Mode: Fail safe or fail secure
• Current Draw: 0.23 amps maximum
• Lever Styles: Multiple styles including Rhodes
