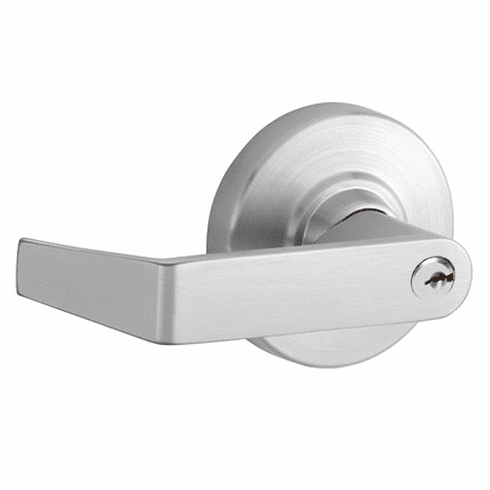

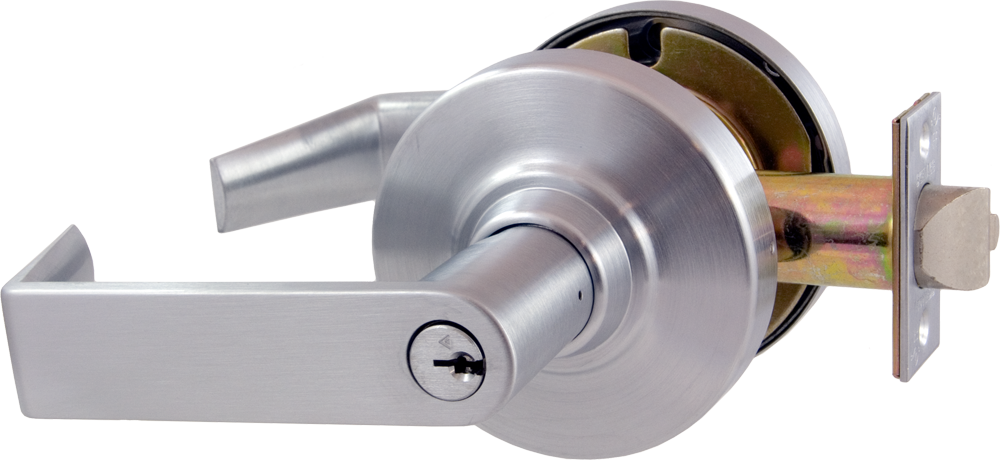

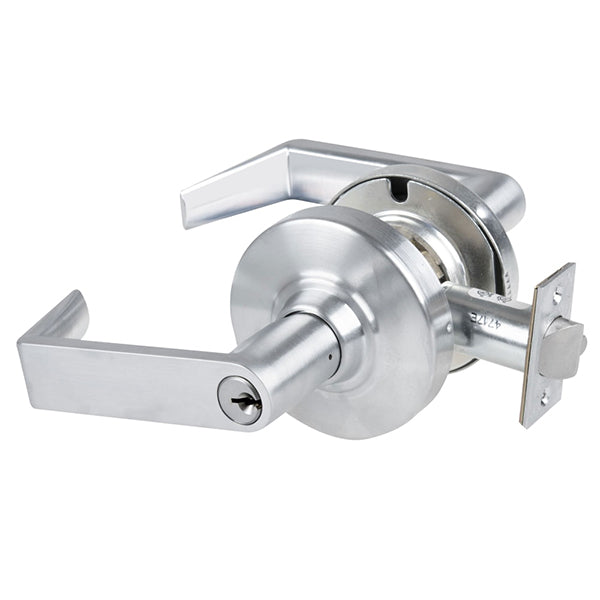

SCHLAGE LOCK ND92-PD-RHO-626 C Nd92pd-rho Entrance Vandlgard Lock

Product Description

The Schlage LOCK ND92-PD-RHO-626 C is a cylindrical entrance lock designed for secure access control. It features a Rhodes lever and is compatible with the Schlage inchCinch keyway. This Grade 1 lock offers features suitable for high-traffic environments.

• Meets ANSI/BHMA A156.2 Grade 1 standards.
• Vandlgard function enhances security by disengaging the outside spindle when locked.
• Non-handed design fits both left and right-handed doors.

Product Highlights

The ND92-PD-RHO-626 C provides robust security and ease of use for both commercial and residential applications.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND92PD RHO

Technical Specifications

• Grade: ANSI/BHMA Grade 1
• Installation: Commercial
• Origin: Mexico
• UL Listing Type: UL/cUL Listed
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours {A}
• ADA Compliance: Yes
• Function: Vandlgard Entrance
• Lever/Knob Design: RHO Rhodes Lever
• Lever Style: RHO_Rhodes
• Rose/Escutcheon Design: 3-7/16 inches Rose Diameter
• Cylinder Type: Conventional
• Num Pins: 6
• Num of Keys: 2
• Handing: Non-handed
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Std. Latch Number: 13-247
• Std. Strike Number: 10-025
