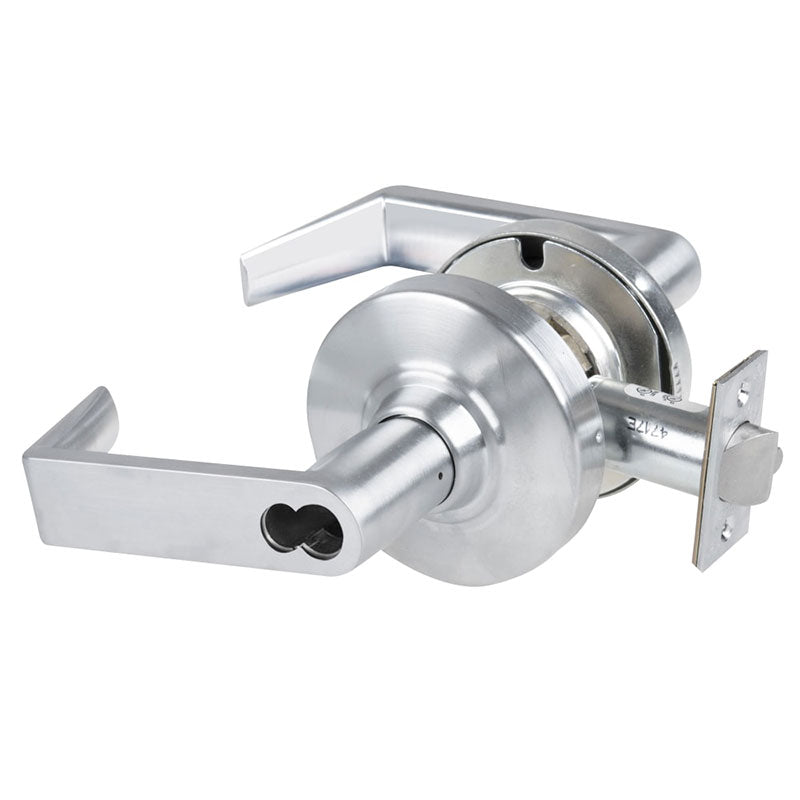

Schlage Lock ND80EU-JD-RHO-626 RX Grade 1 Electric Lock/Unlock Storeroom Rhodes Lever 12/24VDC

Product Description

The Schlage Lock ND80EU-JD-RHO-626 RX is a Grade 1 electric lock designed for storerooms. It features a Rhodes lever that operates on both twelve and twenty-four volts DC. The outside lever remains locked until released by a key or electrical signal, while the inside lever is always available for immediate exit.

• Field-selectable for EL or EU operation.
• Automatically detects voltage between 12VDC and 24VDC.
• Outside lever is continuously locked until unlocked.

Product Highlights

Reliable electric locking system with a Rhodes lever design for enhanced security in commercial applications.

Product Information

Standard Information

• Brand: Schlage
• Installation: Commercial

Technical Specifications

• Grade: Grade 1
• Height: 4.75 inches
• Length: 9.5 inches
• Width: 8.0 inches
• Function: 80 Storeroom Lock
• ADA Compliance: Yes
• Fire Rated: 3 Hours
• Lever Design: Rhodes Lever
• Strike Type: ANSI Strike
