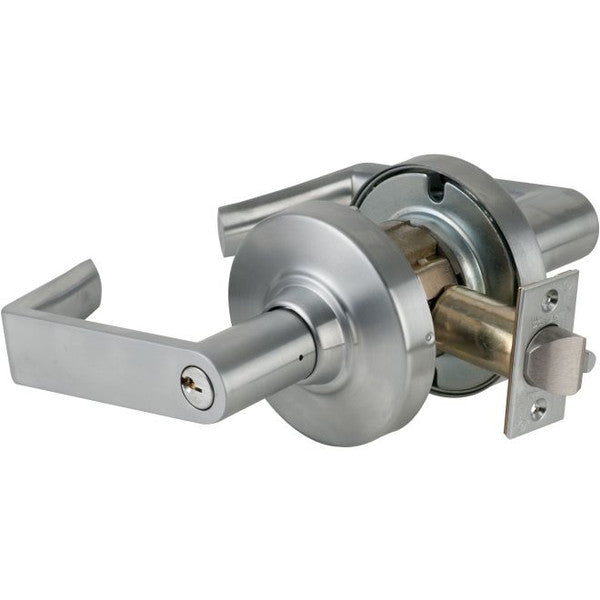

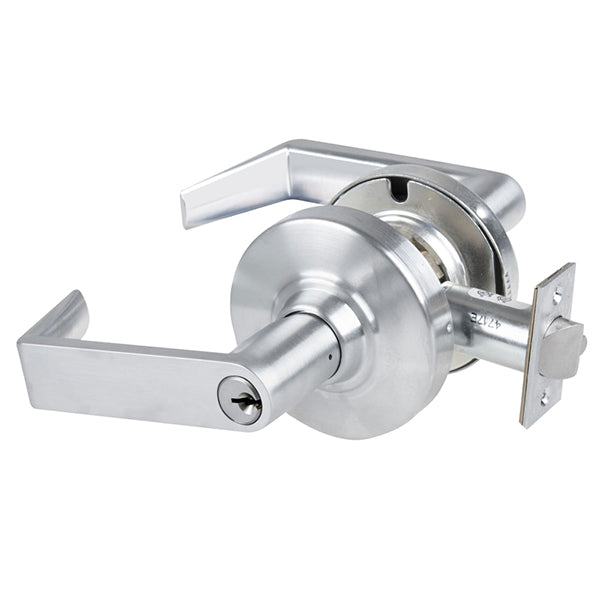

Schlage Lock ND75PDRHO626 C Classroom Security Lock Rhodes Lever

Product Description

The Schlage ND75PD-RHO-626 is a cylindrical classroom security lock designed for commercial use. This lock features a Rhodes lever and is available in Schlage C keyway or S123 keyway. Each lock comes keyed differently with two keys included. The backset measures two and three quarters inches, while the strike measures four and seven eighths inches. This is a Grade 1 lock with a six pin solid brass cylinder.

• Classroom security function: Key in either lever locks or unlocks outside lever.
• Inside lever is always unlocked.
• Exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks.

Product Highlights

This lock is ideal for educational institutions and other facilities requiring secure access control.

Product Information

Standard Information

• Manufacturer: Schlage
• Grade: Grade 1

Technical Specifications

• SKU: ND75PD RHO
• Installation: Commercial
• Origin: Mexico
• UL Listing Type: UL/cUL Listed
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours {A}
• ADA Compliance: Yes
• Function: Classroom Security Lock
• Lever Design: RHO Rhodes Lever
• Rose Diameter: 3-7/16 inches
• Cylinder Type: Cylinder
• Num Pins: 6
• Num of Keys: 2
• Handing: Non-handed
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Std. Latch Number: 13-247
• Lock Face Size: 1-1/8 inches x 2-1/4 inches
• Bolt Projection: 1/2 inches
• Bore Hole Diameter: 2-1/8 inches
• Screws: Wood/Machine Screws
• Product Type: Cylindrical Lock
• Certification: ANSI/BHMA A156.2-2003, Series 4000 Grade 1 lock
• Finish: Satin Chrome
• Series: ND Series Lever Locks
