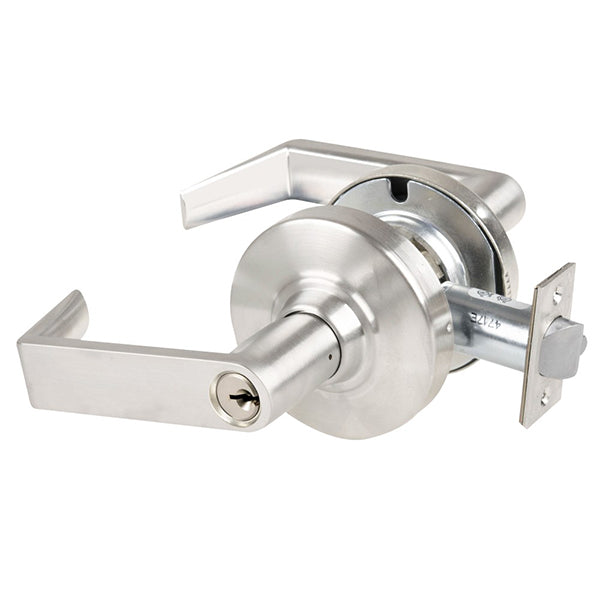

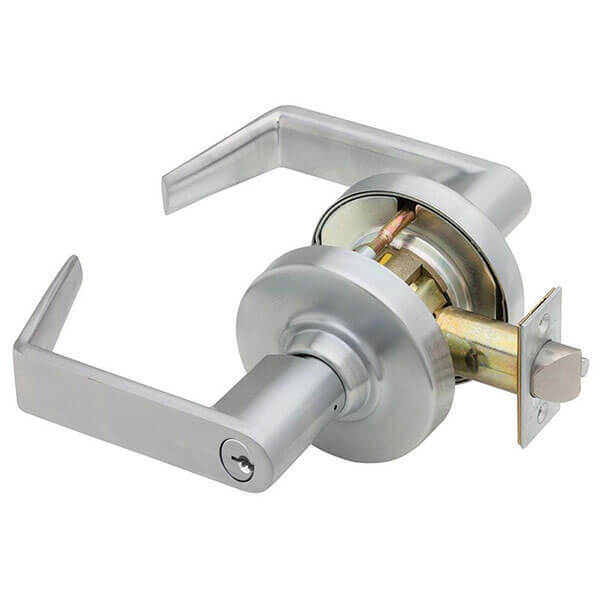

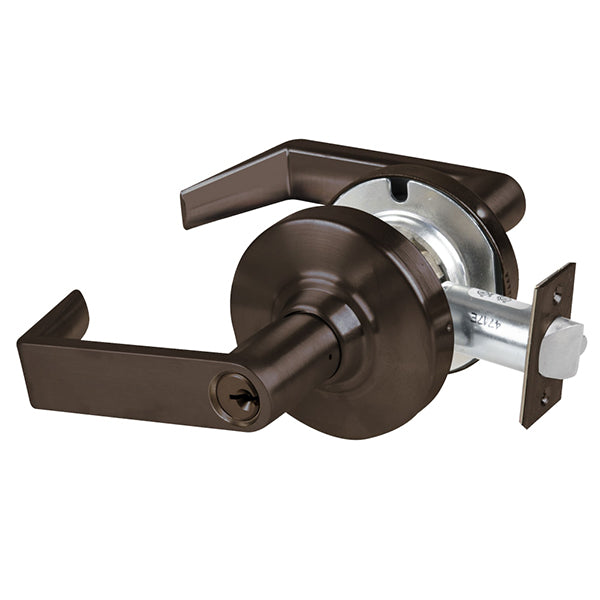

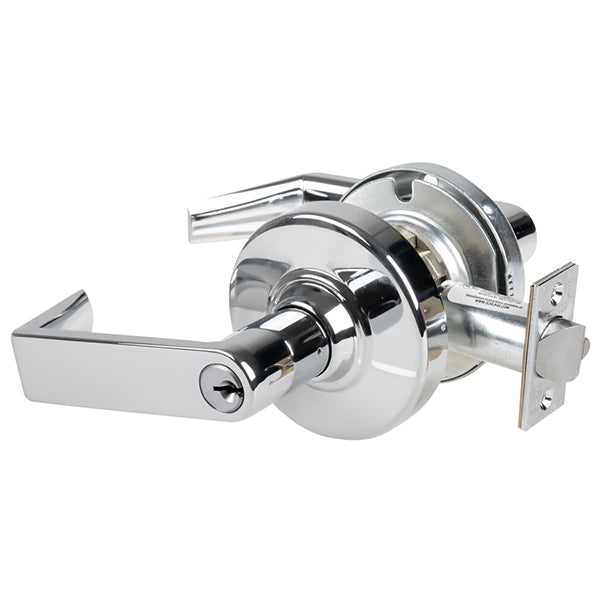

Schlage Lock ND73-PD-RHO-626 C ND73PD RHO Corridor Lever Lock

Product Description

The Schlage Lock ND73-PD-RHO-626 C is a reliable corridor lever lock designed for commercial use. This lock meets ANSI/BHMA Grade 1 standards, ensuring high durability and security for various applications. The lock can be locked or unlocked with a key from the outside, while featuring push-button locking from the inside. The inside lever remains free for immediate exit.

• Exceeds ANSI/BHMA Grade 1 requirements for security
• Withstands abusive lever torque and offset lever pull
• Shows minimal droop or wobble after extensive use

Product Highlights

This lock provides consistent performance and complies with ADA regulations, making it suitable for any heavy-duty corridor application.

Product Information

Standard Information

• Brand: Schlage
• Finishes: Satin Chrome

Technical Specifications

• Lock Function: Corridor
• Lever Design: RHO (Rhodes)
• Cylinder & Keys: 6-pin conventional, keyed different, with 2 keys
• Usage: Heavy Duty
• ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• Ada Compliance: Meets ADA requirements
• Fire Rating: UL/cUL listed up to 3 Hours
• Handing: Non-Handed
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw, deadlocking
• Strike: Standard ANSI Curved Lip
• Door Thickness: 1-3/4 inches
• Warranty: 10 Years
• Installation: Commercial
• Origin: Mexico
• Unit of Measure: Each
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
