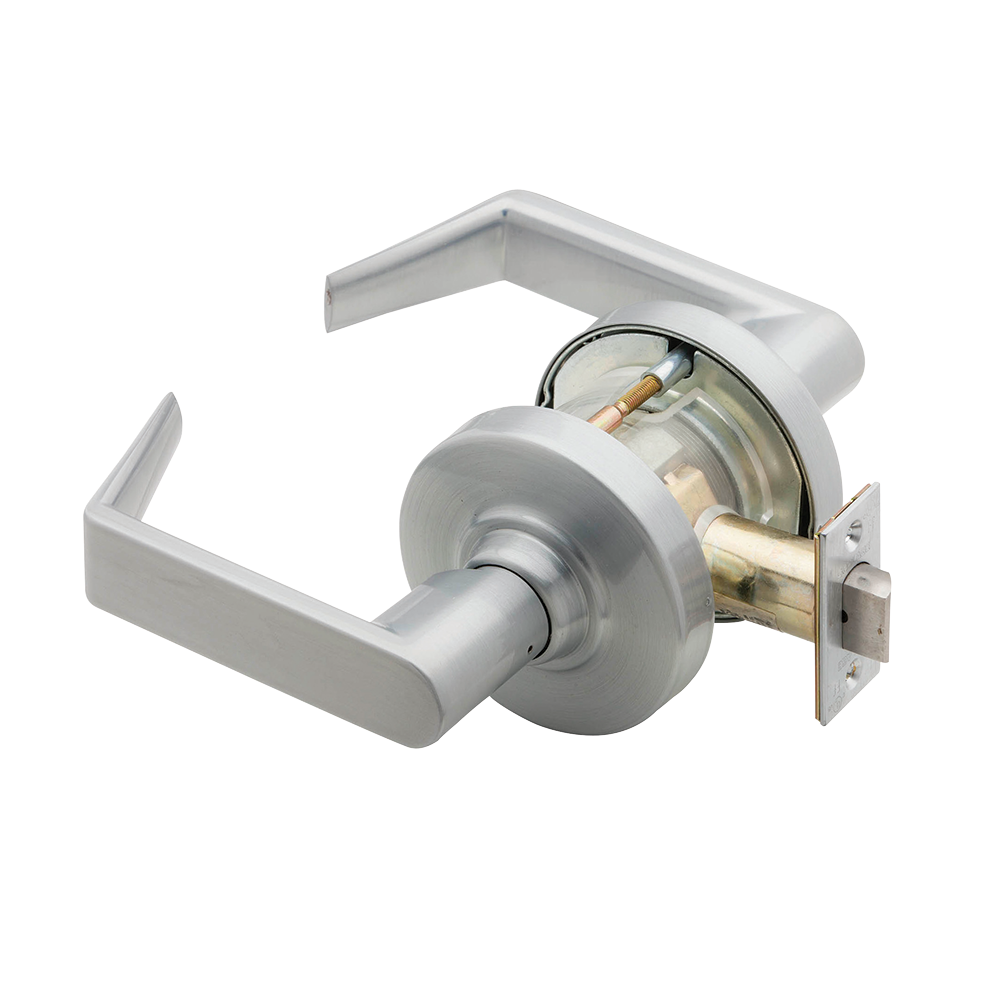

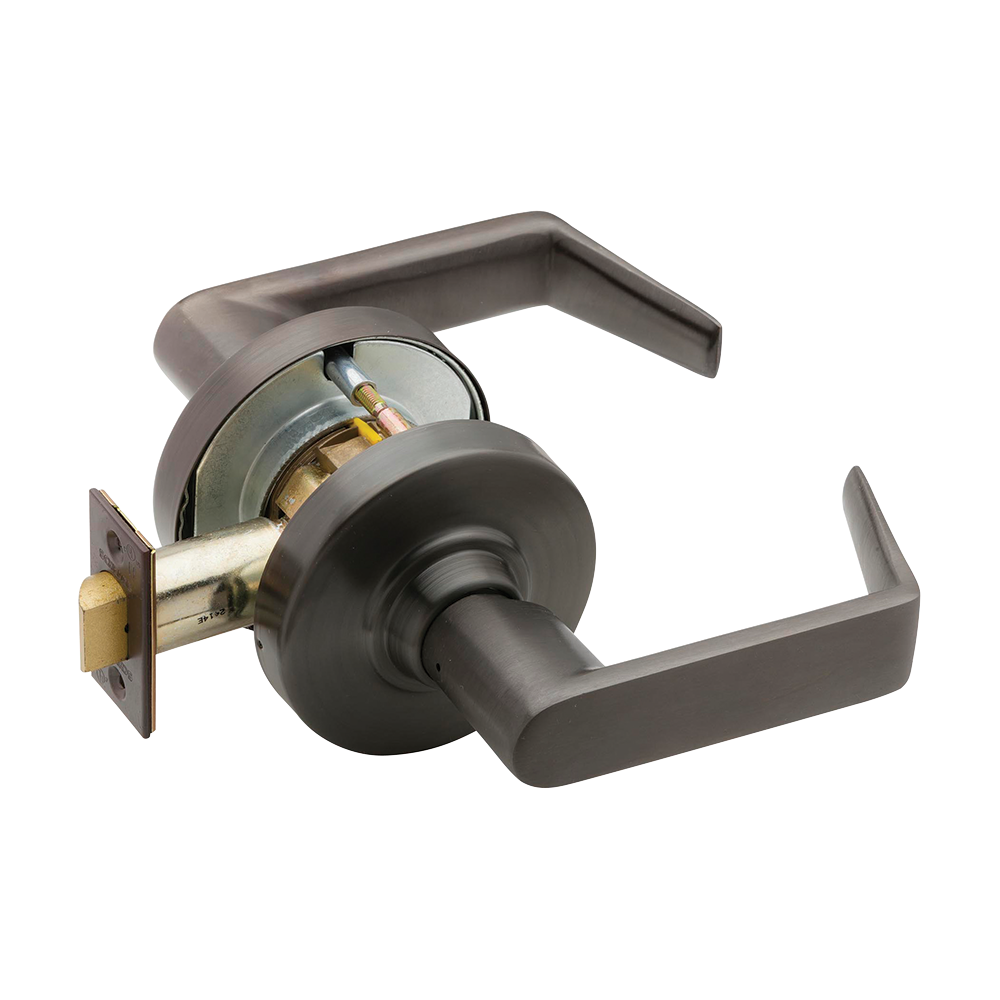

Schlage Lock ND73-LD-RHO-626 Nd Series Grade 1 Cylindrical Lock

Product Description

The Schlage Lock ND73-LD-RHO-626 Nd Series Grade 1 Cylindrical Lock is a high-performance lock designed for durability and security. It meets Grade 1 standards, making it suitable for heavy-duty applications. This lock can handle up to 3100 inch-pounds of lever torque and shows minimal wear after extensive use.

• Meets ANSI/BHMA Grade 1 operational and security standards
• UL listed for three-hour fire doors
• Vandlgard option protects against forced entry

Product Highlights

The ND Series lock is ideal for new construction and retrofit projects, providing strong security features along with ease of use.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: ND73-LD-RHO-626

Technical Specifications

• Chassis: Zinc and steel components with zinc dichromate plating
• Door thickness: One and five-eighths inches to two and one-eighths inches
• Handing: Non-handed
• Trim Options: Nine lever designs, made of pressure cast zinc
• Latches Backset: Two and three-quarters inches standard
• Latchbolt: Half-inch throw, stainless steel
• Faceplate: Square corner
• Strike: ANSI curved lip strike
