Schlage Lock ND73-JD-RHO-626 Corridor Lock Rhodes Lever FSIC Less Core

Product Description

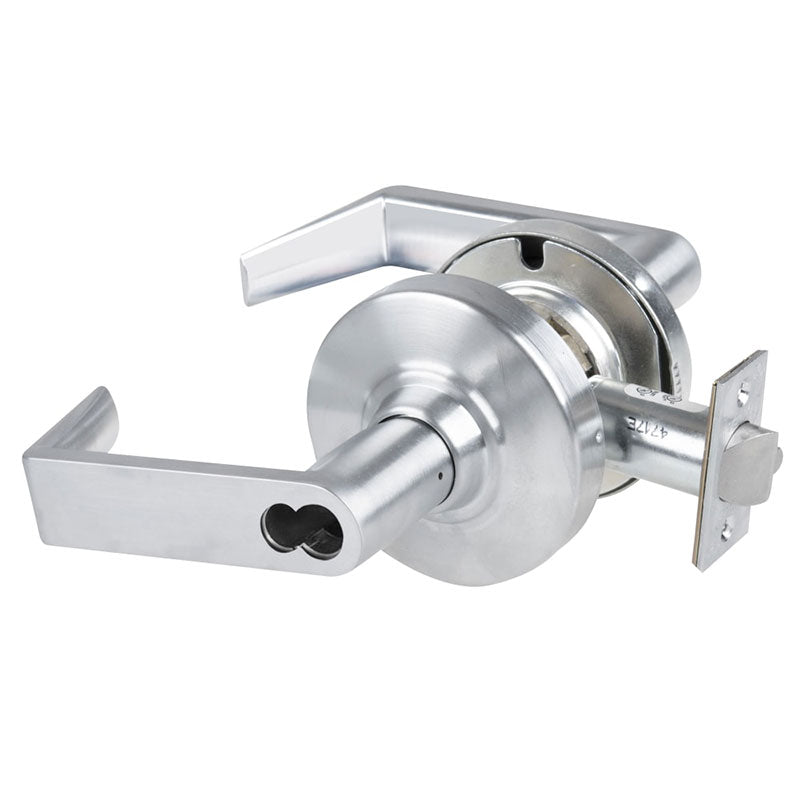

The Schlage ND73-JD-RHO-626 is a cylindrical corridor lock designed for commercial use. It features a Rhodes lever and is prepared for a Schlage FSIC large format interchangeable core, though the core is not included. The backset measures two and three-fourths inches, with a strike size of four and seven-eighths inches. This lock meets Grade 1 standards and exceeds ANSI/BHMA A156.2 requirements, ensuring strong security and reliability in high-traffic areas.

• Cylindrical corridor lock with Rhodes lever design.
• Prepped for Schlage FSIC large format interchangeable core; core not included.
• Meets ANSI/BHMA Grade 1 standards for security.

Product Highlights

The inside lever is always free for immediate egress, enhancing safety in emergency situations.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND73-JD-RHO-626

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• Origin: Mexico
• UL Listing Type: UL/cUL Listed
• ANSI Number: ANSI A156.2 Series 4000, Grade 1
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours
• ADA Compliance: Yes
• Finish: Satin Chrome (626/US26D)
• Function: 73 Corridor Lock

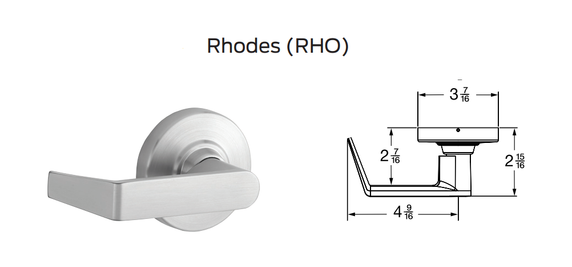

• Lever/Knob Design: Rhodes Lever
• Handing: Non-handed
• Door Thickness: 1-5/8 inches to 2-1/8 inches
• Std. Latch Type: Deadlatch
• Std. Strike Type: ANSI Strike
• Screws: Wood/Machine Screws
• Product Type: Cylindrical Lock
• Series: ND Series - Grade 1
• Lever Style: Rhodes (RHO)
