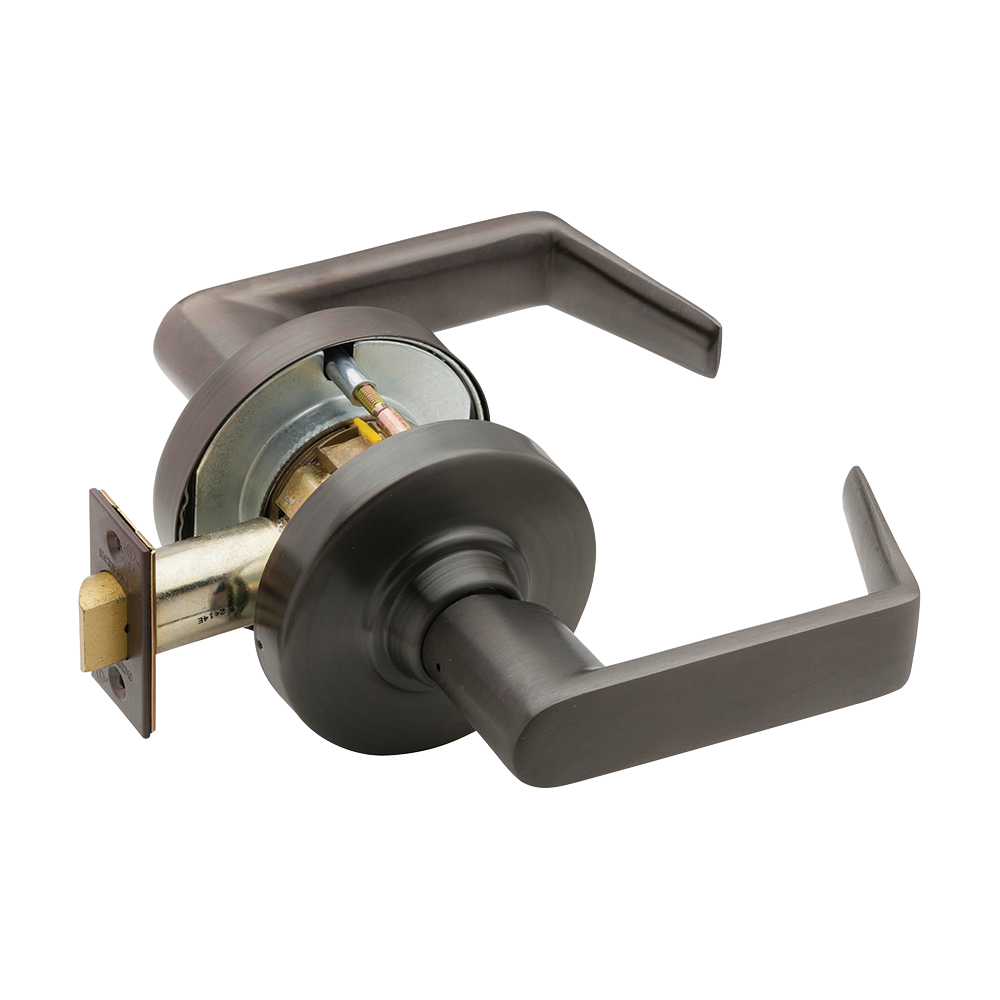

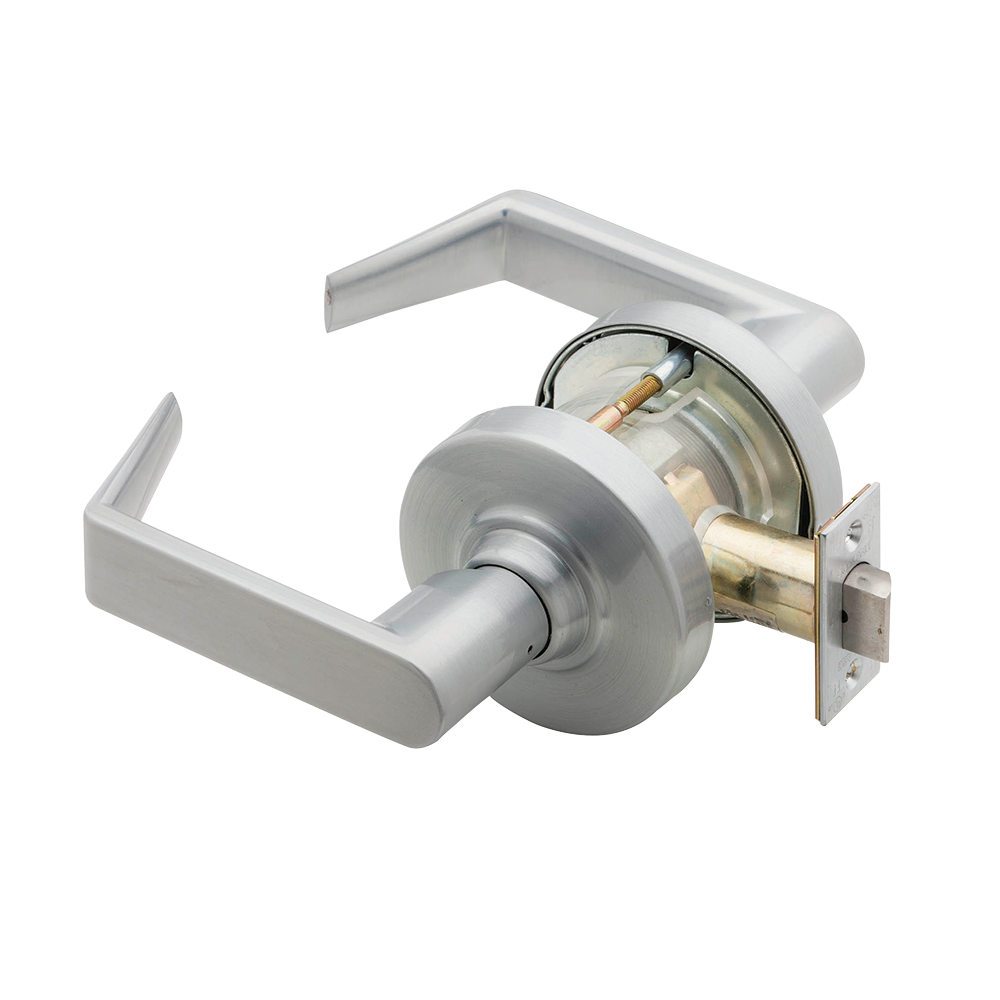

Schlage Lock ND70-LD-SPA-622 Nd Series Grade 1 Cylindrical Lock

Product Description

The Schlage Lock ND70-LD-SPA-622 is a cylindrical lock designed for Grade 1 security. This lock provides robust performance with advanced key system choices. It has been rigorously tested to endure lever torque and withstand lever attacks, making it ideal for new constructions and retrofits requiring high security.

• Exceeds ANSI/BHMA Grade 1 operational and security standards.
• UL listed for three-hour fire door applications.
• Includes Vandlgard feature to protect the outside lever from damage.

Product Highlights

This lock offers reliable operations and superior security features suited for various commercial and residential applications.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: ND70-LD-SPA-622

Technical Specifications

• Chassis: Zinc and steel with corrosion-resistant zinc dichromate plating
• Door thickness: One and five-eighths to two and one-eighth inches standard; optional for one and three-eighths up to six inches
• Handing: Non-handed
• Trim Options: Nine lever designs in pressure cast zinc
• Roses: Wrought brass, matching product finish
• Chassis lead lining: Available for X-ray or radiation-sensitive areas
• Backset: Two and three-fourths inches standard; options include two and three-eighths, three and three-fourths, and five inches
• Latchbolt: Half-inch throw, oil-impregnated stainless steel; three-quarter inch throw available
• Faceplate: Square corner one and one-eighth by two and one-fourth inches standard
• Strike: ANSI curved lip standard; optional T-strikes available
• Strike lip length: One and three-sixteenths inches standard; extended lip options available
• ANSI/BHMA: ANSI A156.2-2017 Series 4000, Grade 1
• ICC: Complies with ICC A117.1-2017
• UL/cUL: UL 10C and CAN/ULC-S104 listed
