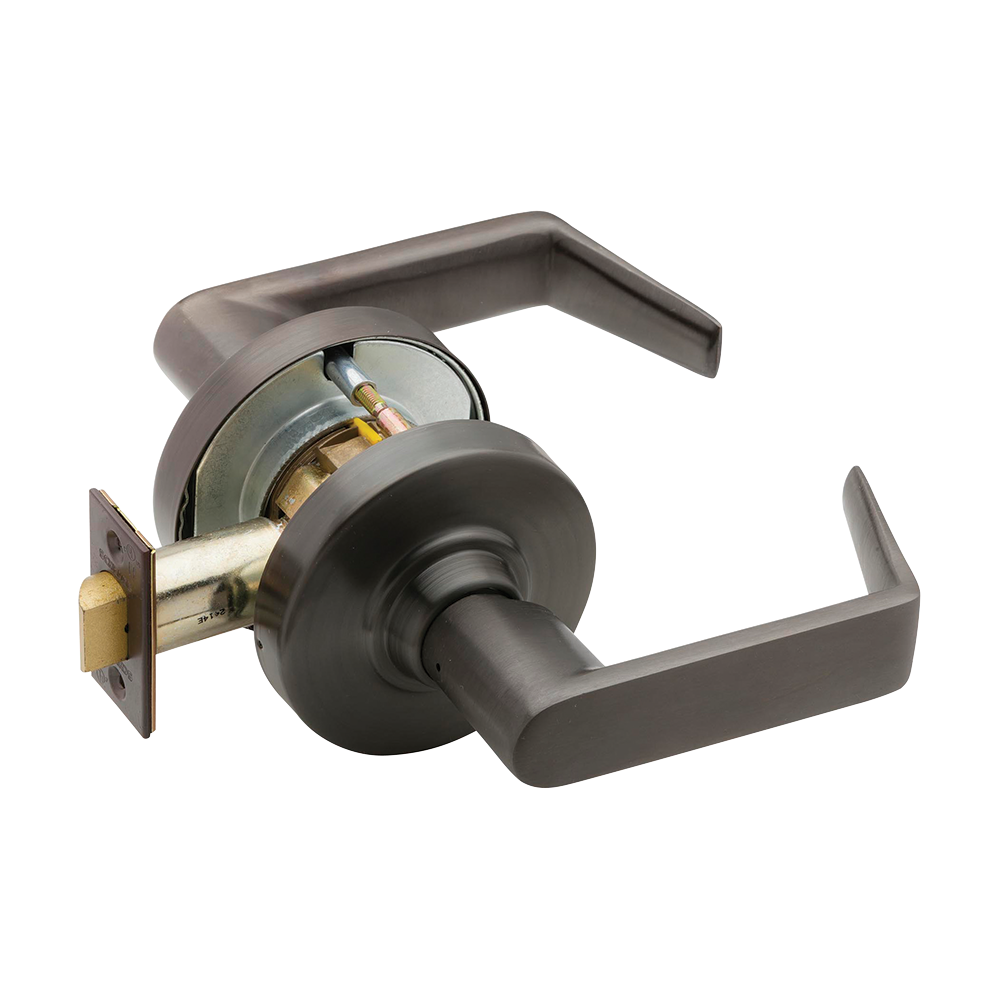

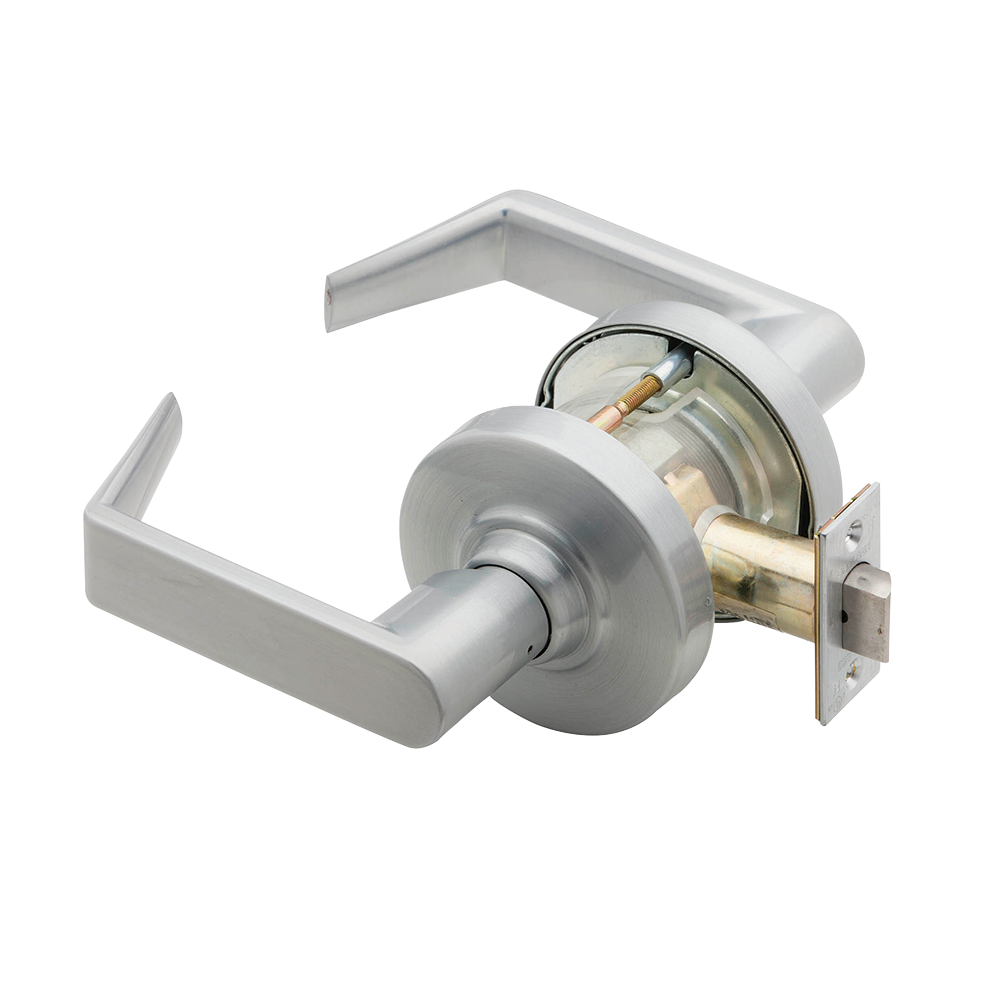

Schlage Lock ND70-LD-RHO-622 Nd Series Grade 1 Cylindrical Lock

Product Description

The Schlage Lock ND70-LD-RHO-622 is a cylindrical lock within the Nd Series, built to Grade 1 standards for high security. This lock is suitable for both new installations and retrofitting, making it versatile for various applications. It is engineered to endure tough conditions, resisting leverage attacks and offering durability. The product also supports a common cylindrical ANSI 161 door preparation, ensuring it fits various door types.

• Meets ANSI/BHMA Grade 1 operational and security standards.
• UL listed for use on three-hour fire doors.
• Vandlgard feature allows for free rotation of the outside lever.

Product Highlights

This product is designed for strength and longevity, suitable for residential and commercial doors needing robust security solutions.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: ND70-LD-RHO-622

Technical Specifications

• Chassis: Zinc and steel with corrosion-resistant plating.
• Door thickness: Fits doors from one and five-eighths inches to two and one-eighths inches; optional for one and three-eighths inches to six inches.
• Handing: Non-handed design for flexibility.
• Trim options: Nine lever designs available.
• Latchbolt: Half-inch throw with optional three-quarter inch throw for certain installations.
• Fire rating: UL listed for three-hour fire doors.
• Windstorm rating: Complies with Florida Building Commission requirements.
