Schlage Lock ND53-PD-SPA-626 C ND53PD-SPA Entrance Cylindrical Lock Sparta Lever

Product Description

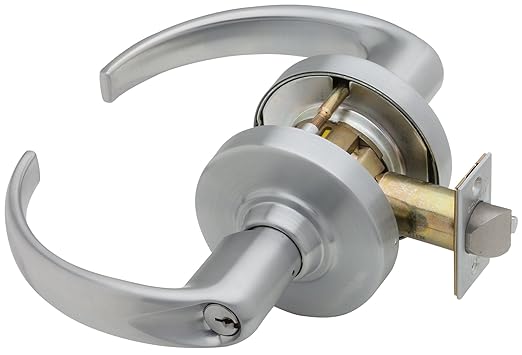

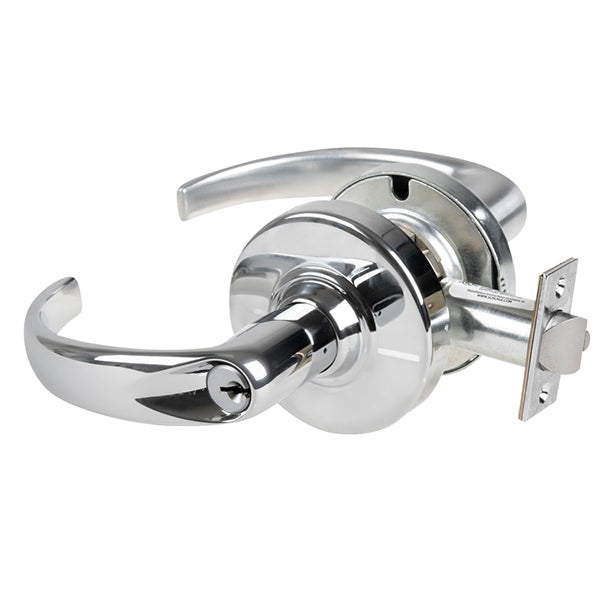

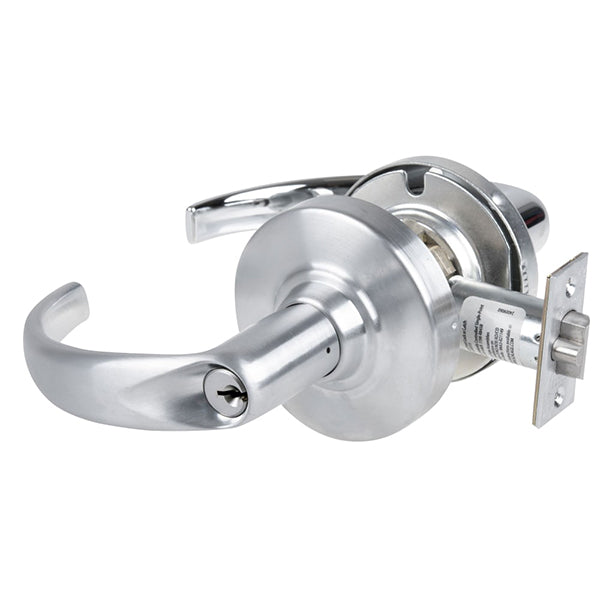

The Schlage ND53PD-SPA-626 C is a cylindrical entrance lock designed with a Sparta lever. It comes with either the Schlage C or S123 keyway and includes two keys. This lock features a two-and-three-quarter-inch backset and a four-and-seven-eighths-inch strike. It is rated Grade 1, ensuring high durability and security.

• Cylindrical entrance lock with Sparta lever
• Available in Schlage C keyway or S123 keyway
• Grade 1 rated for premium durability

Product Highlights

This lock is ideal for commercial and residential applications, including healthcare, education, and government. Its robust design supports new construction and retrofit installations.

Product Information

Standard Information

• Manufacturer: Schlage
• SKU: ND53PD-SPA

Technical Specifications

• Grade: Grade 1
• Installation: Commercial
• UL Listing Type: UL/cUL Listed
• ANSI Number: A156.2 Series 4000, Grade 1
• Limited Warranty: 10 Years
• Fire Rated: 3 Hours
• ADA Compliance: Yes
• Function: 53 Entrance Lock

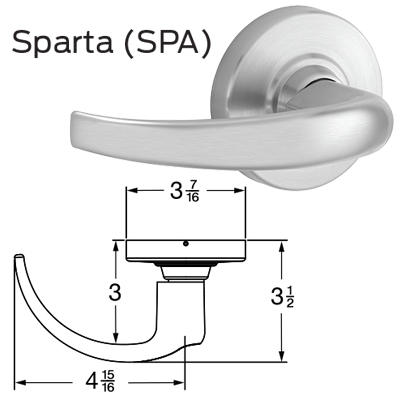

• Lever/Knob Design: SPA Sparta Lever
• Rose Diameter: 3-7/16 Inches
• Door Thickness: 1-5/8 Inches to 2-1/8 Inches
• Lock Type: Key Lock
• Material: Pressure cast zinc lever, wrought brass rose
• Strike Type: ANSI Strike
