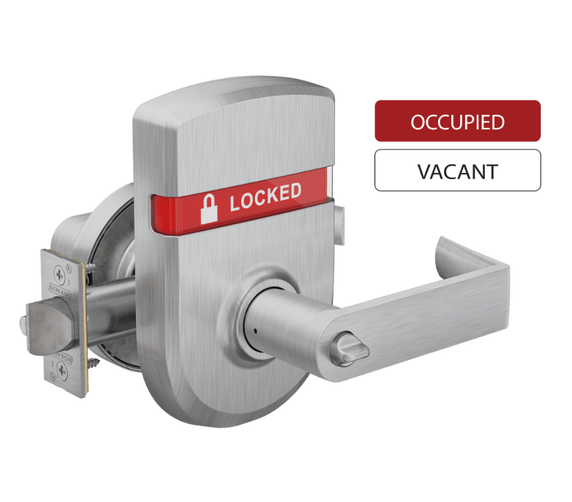

Schlage Lock ND53-LD-RHO-622 Entrance Lever Lock with Interior Vacant/Occupied Indicator

Product Description

The Schlage Lock ND53-LD-RHO-622 is a Grade 1 entrance cylindrical lock suitable for various applications. It includes an interior vacant/occupied indicator and features a Rhodes lever design. The lock operates with a push/turn button on the interior lever and utilizes a deadlatch mechanism. The design ensures that the inside lever is always free for immediate egress.

• Grade 1 entrance cylindrical lock.
• Interior vacant/occupied indicator for enhanced security.
• Designed for easy exit with immediate egress capability.

Product Highlights

This lock is essential for entry points that require both accessibility and security, making it ideal for commercial and residential use.

Product Information

Standard Information

• Series: ND Series - Grade 1
• Function: 53 - Entrance

Technical Specifications

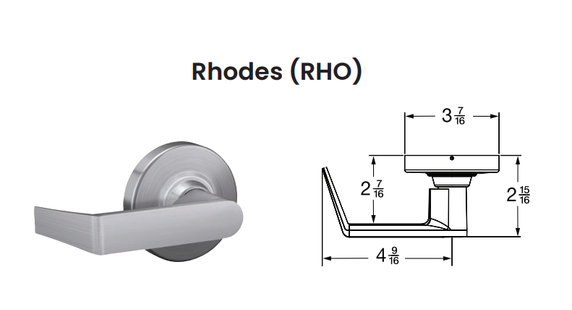

• Lever Style: RHO - Rhodes
• Cylinder: LD - Less Cylinder
• Application: Occupied/Vacant indicator for inside of door
• Door Thickness: Standard: 1-5/8 inches to 2-1/8 inches
• Levers: Pressure cast zinc
• Rose/Escutcheon: Wrought brass or zinc
• Backset: Standard: 2-3/4 inches; Optional: 2-3/8 inches
• Latch Bolt: Standard: 1/2 inches throw spring latch or deadlatch
• Strike: ANSI curved lip
• Warranty: 10 years mechanical
