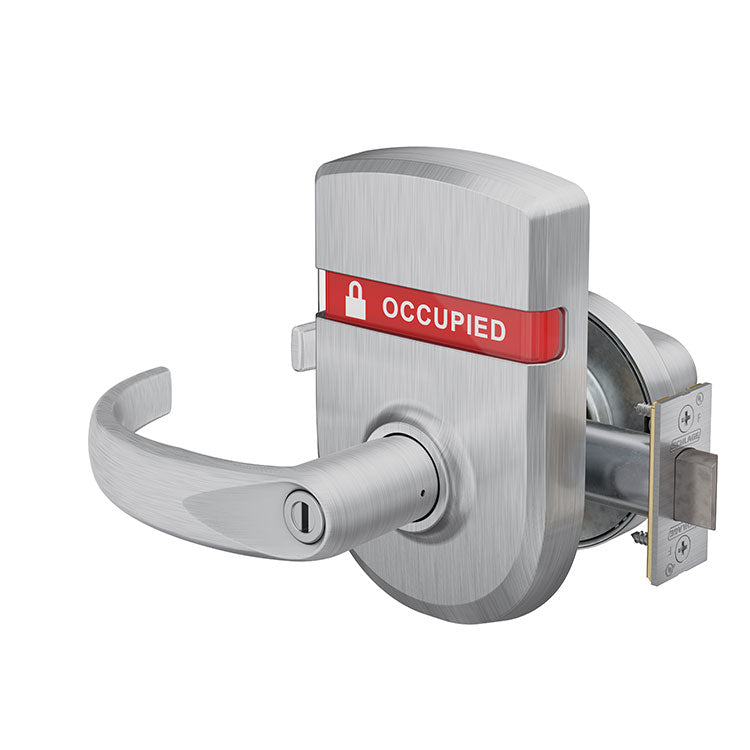

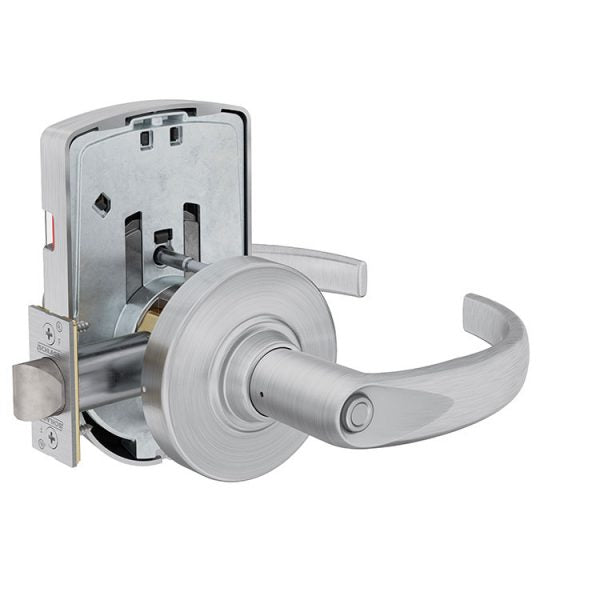

Schlage Lock ND40S-SPA-622 OS-OCC Privacy Lever Lock Sparta Lever with Outside Indicator Escutcheon Trim

Product Description

The Schlage Lock ND40S-SPA-622 OS-OCC is a Grade-1 cylindrical lever lock designed for bath and bedroom privacy. It features a Sparta lever and an outside indicator escutcheon trim. This lock is suitable for commercial use in healthcare, education, and retail settings. It meets ANSI/BHMA Grade 1 standards and is compatible with doors that are one and three-quarters inches thick, allowing for easy installation with standard door preparation.

• ANSI/BHMA Grade 1 certified, exceeding standards
• Includes an indicator window for vacancy status
• ADA compliant lever handles

Product Highlights

The Schlage ND40S-SPA-622 OS-OCC lever lock offers reliability and security, making it an ideal choice for environments requiring privacy.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Privacy with Indicator

Technical Specifications

• Lever Design: SPA (Sparta)
• Usage: Heavy Duty
• ANSI/BHMA Standard: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Fire Rating: UL/cUL listed up to 3 Hours (A Label)
• Handing: Handed – LH, RH
• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches
• Warranty: 10 Years
• Chassis Material: Modular design of zinc and steel components
• Levers: Standard: Nine designs, pressure cast zinc
• Roses: Wrought brass, bronze, or zinc
• Finishes: Available in 10 finishes (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
