Schlage Lock ND40S-RHO-626 OS-OCC Bath/Bedroom Privacy Lever Lock with Exterior Vacant/Occupied Indicator

Product Description

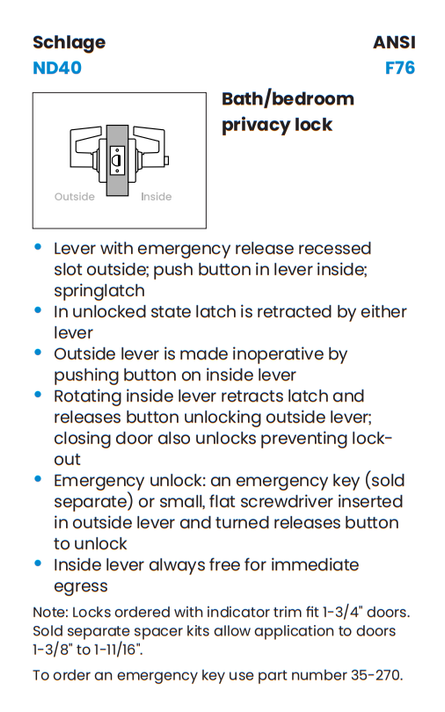

The Schlage Lock ND40S-RHO-626 OS-OCC is a Grade 1 bathroom and bedroom privacy lever lock. It features a non-keyed Rhodes lever and an exterior indicator that shows if the room is VACANT or OCCUPIED.

• Grade 1 Bed/Bathroom Privacy Lock

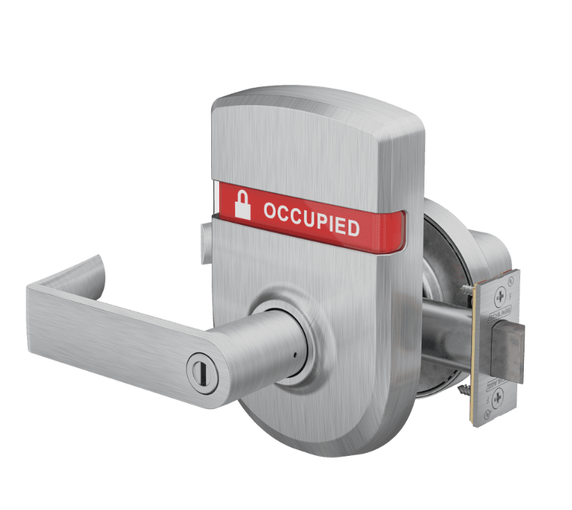

• Exterior VACANT/OCCUPIED indicator
• Emergency release slot

Product Highlights

This privacy lever lock offers a robust design for secure access control in bedrooms and bathrooms. The inside lever allows immediate egress, ensuring safety. The lock is built for durability with corrosion-resistant materials.

Product Information

Standard Information

• Series: ND Series - Grade 1
• Function: 40 - Privacy

Technical Specifications

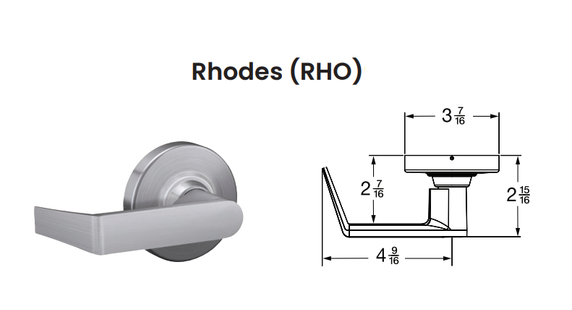

• Lever Style: RHO - Rhodes
• Application: Outside Door Indicator
• Material: Zinc and steel components
• Door thickness: 1-5/8 inches to 2-1/8 inches
• Rose/escutcheon: Wrought brass or zinc
• Backset: 2-3/4 inches
• Latch bolt: 1/2 inch throw
• Strike: ANSI curved lip dimensions
