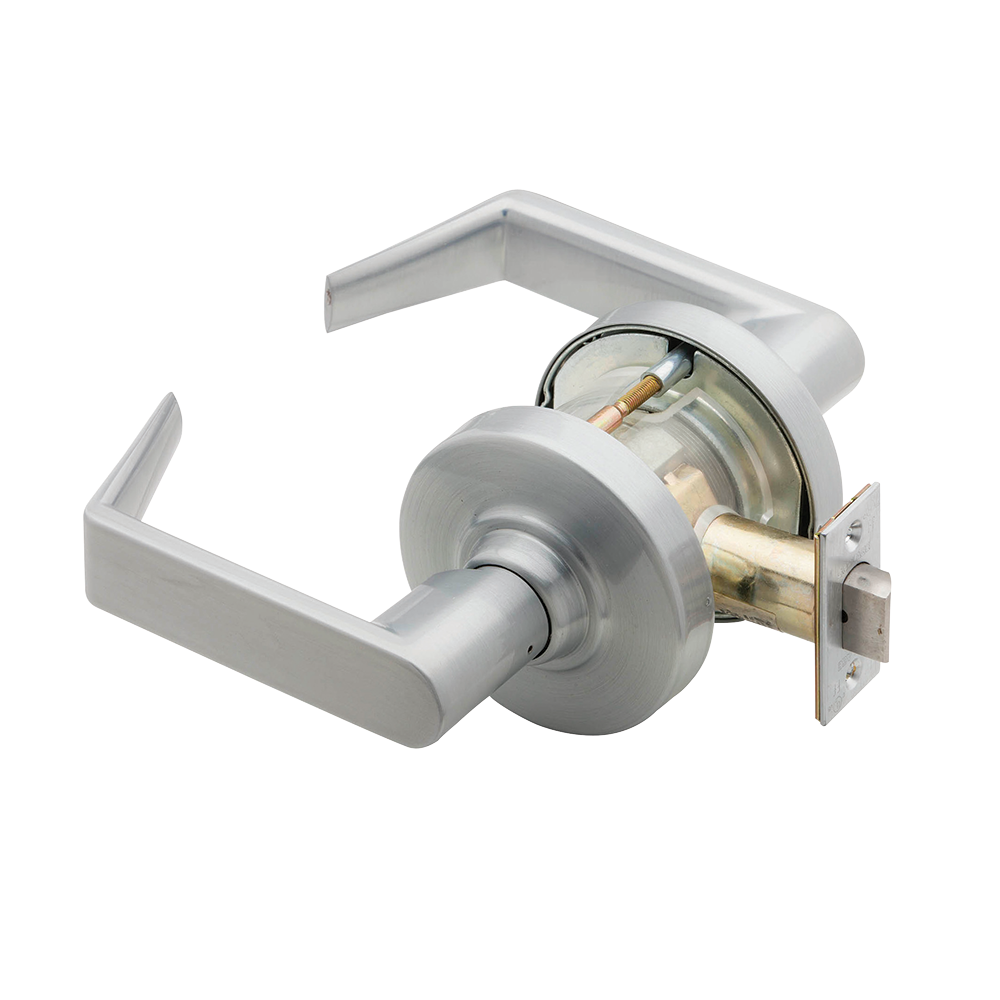

SCHLAGE LOCK ND170-RHO-622 Nd Series Grade 1 Cylindrical Lock

Product Description

The Schlage Lock ND170-RHO-622 Nd Series Grade 1 Cylindrical Lock offers a strong locking solution. This product meets ANSI/BHMA Grade 1 standards, ensuring reliable performance. It is UL listed for three-hour fire doors, making it suitable for high-security areas. The lock is designed for both new installations and retrofit applications, providing flexibility in different setups.

• Exceeds ANSI/BHMA Grade 1 operational standards
• UL listed for three-hour fire doors
• Non-handed design for versatile applications

Product Highlights

This lock features a Vandlgard option that allows the outside lever to rotate freely, preventing damage during unauthorized attempts.

Product Information

Standard Information

• Brand: Schlage
• MPN: ND170-RHO-622

Technical Specifications

• Chassis: Zinc and steel components, zinc dichromate plated for corrosion resistance
• Door Thickness: 1-5/8 inches to 2-1/8 inches (41 mm to 54 mm) standard; 1-3/8 inches up to 6 inches (35 mm up to 152 mm) optional
• Handing: Non-handed
• Trim Options: Nine lever designs made of pressure cast zinc
• Backset: 2-3/4 inches (70 mm) standard; optional sizes available
• ANSI/BHMA: ANSI A156.2-2017, Grade 1
• UL Listing: UL/cUL listed
• Windstorm Compliance: Meets Florida Building Commission requirements
