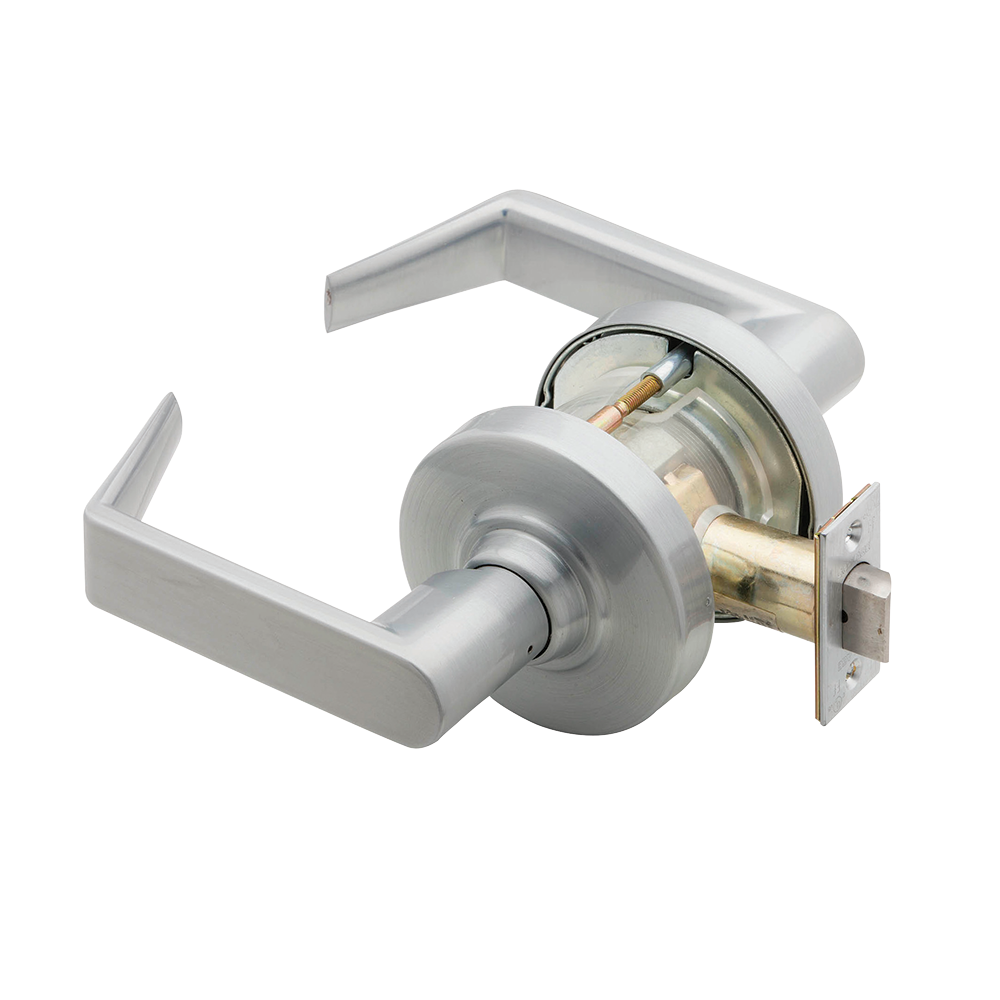

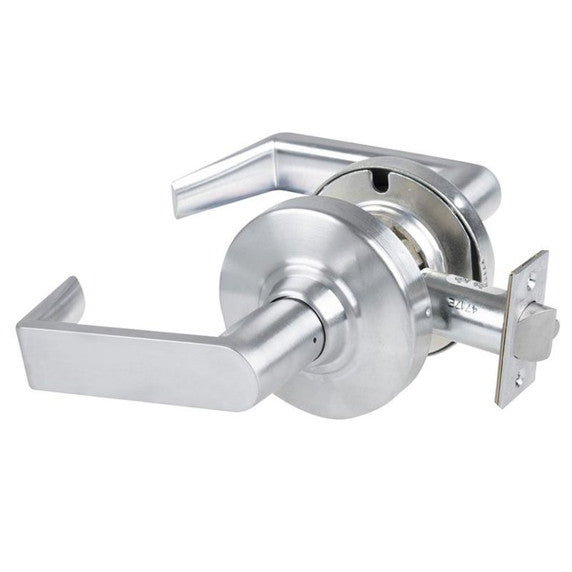

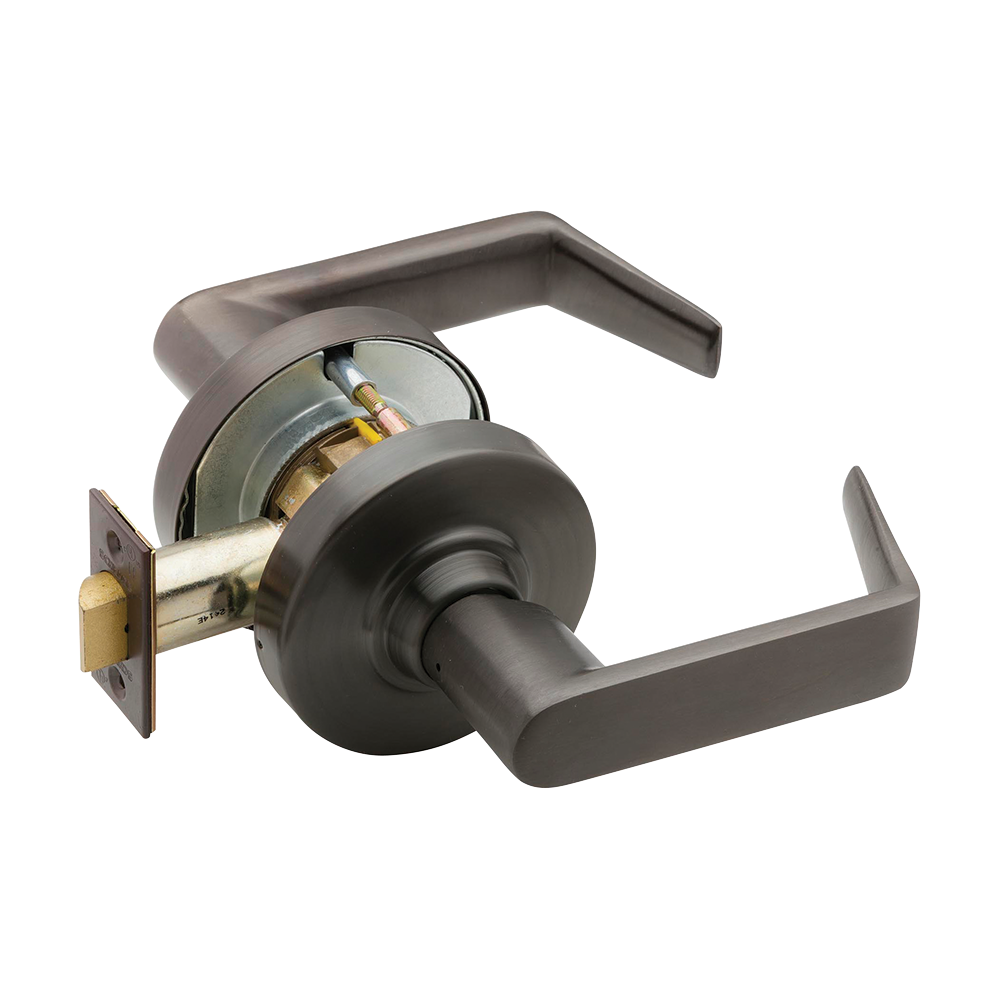

Schlage Lock ND10S-RHO-619 Nd Series Grade 1 Cylindrical Lock

Product Description

The Schlage Lock ND10S-RHO-619 Nd Series Grade 1 Cylindrical Lock is a secure solution designed for high-traffic areas. It exceeds ANSI/BHMA Grade 1 standards and holds a UL listing for three-hour fire doors. Ideal for new constructions or retrofitting, this lock is non-handed and features a Rhodes style lever, ensuring versatility and ease of installation.

• Exceeds ANSI/BHMA Grade 1 operational and security standards
• UL listed for 3-hour fire doors
• Vandlgard option prevents damage from excessive force

Product Highlights

This lock provides strong security for commercial settings while allowing easy operation for users. It is constructed from high-quality materials to endure heavy use.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: ND10S-RHO-619

Technical Specifications

• Chassis: Zinc and steel components with zinc dichromate plating for corrosion resistance
• Door Thickness: One and five eighths inches to two and one eighths inches (forty-one millimeters to fifty-four millimeters) standard; one and three eighths inches up to six inches (thirty-five millimeters up to one hundred fifty-two millimeters) optional
• Handing: Non-handed

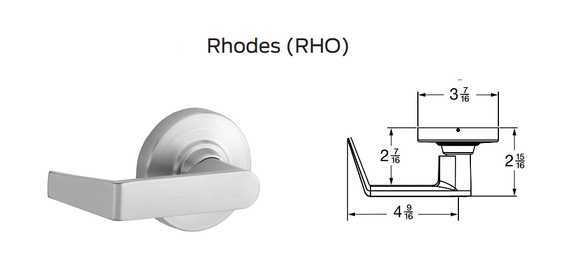

• Lever Designs: Nine designs made of pressure cast zinc
• Roses: Wrought brass plated to match finish
• Lead Lining: Available option for use in radiation concern areas
• Backset: Two and three fourths inches (seventy millimeters) standard
• Latchbolt: Half inch (thirteen millimeters) throw oil impregnated stainless steel standard
• Faceplate: Square corner one and one eighth inches by two and one fourth inches (twenty-nine millimeters by fifty-seven millimeters) standard
• Strike: ANSI curved lip strike standard and options for T-strike
• Warranty: Ten years
