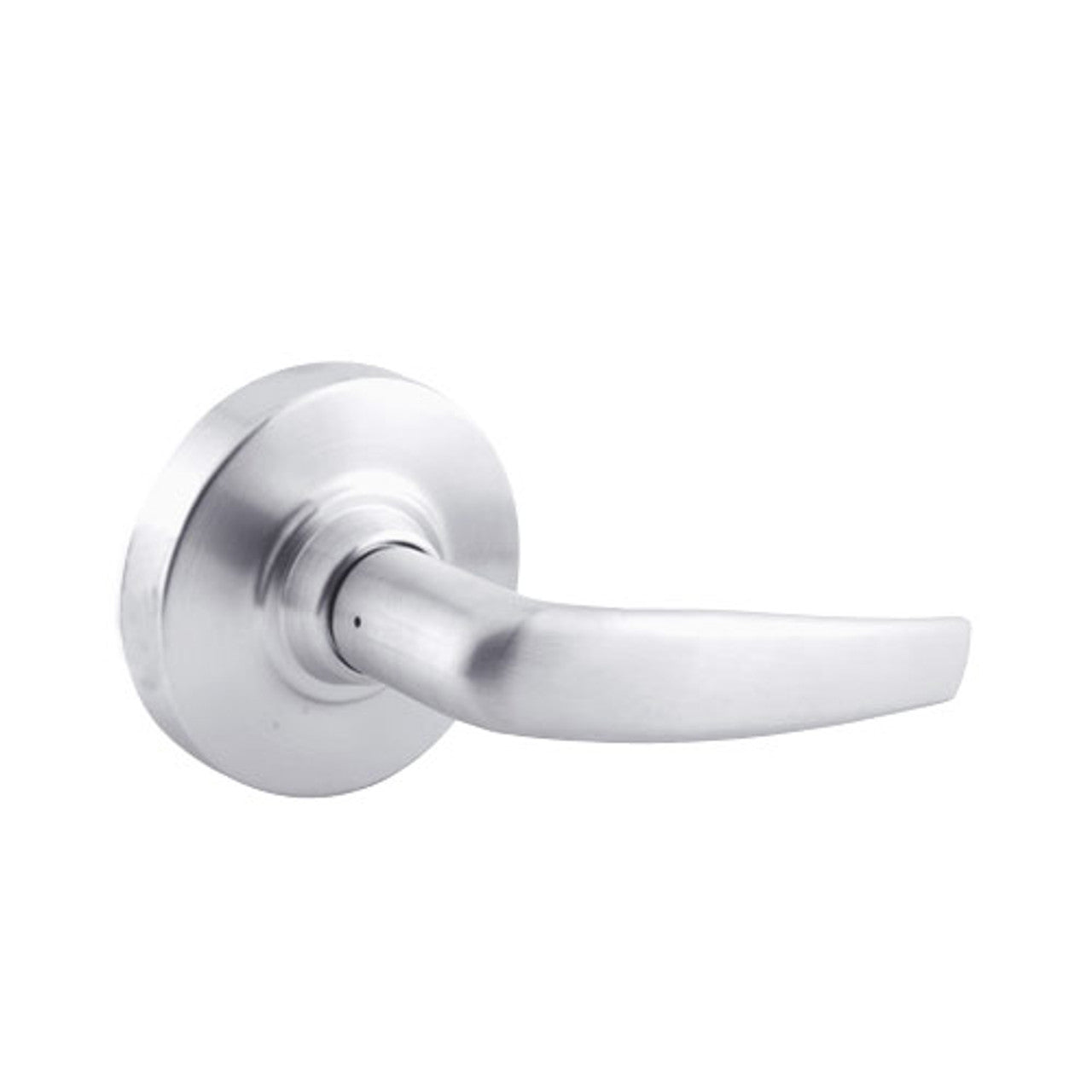

Schlage Lock ND10S-ATH-626 ND10S ATH Passage Lever

Product Description

The Schlage ND10S-ATH-626 ND Series Athens passage lever is a durable option for various commercial settings. This lever meets ANSI/BHMA Grade 1 standards, making it ideal for healthcare, educational, and retail applications. It features a plain lever design on both sides with a spring latch, ensuring the levers stay unlocked at all times. This product is UL/cUL listed for use in fire-rated doors, providing added safety.

• Meets and exceeds ANSI/BHMA Grade 1 requirements
• Designed for longevity with minimal droop after extensive use
• Constructed to ensure maximum durability in high-traffic areas

Product Highlights

The Schlage ND10S-ATH-626 is engineered for heavy-duty use, combining safety and accessibility features suitable for a range of environments.

Product Information

Standard Information

• Brand: Schlage
• Function: Passage

Technical Specifications

• ANSI/BHMA Certification: Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
• Fire Rating: UL/cUL listed up to 3 hours
• Finish: Satin Chrome
• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches
• Warranty: 10 Years
• Material: Cast Zinc
• Handle Orientation: Ambidextrous
