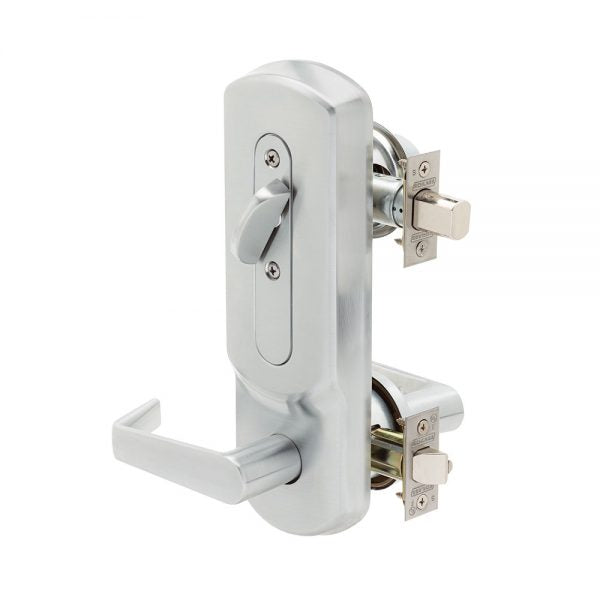

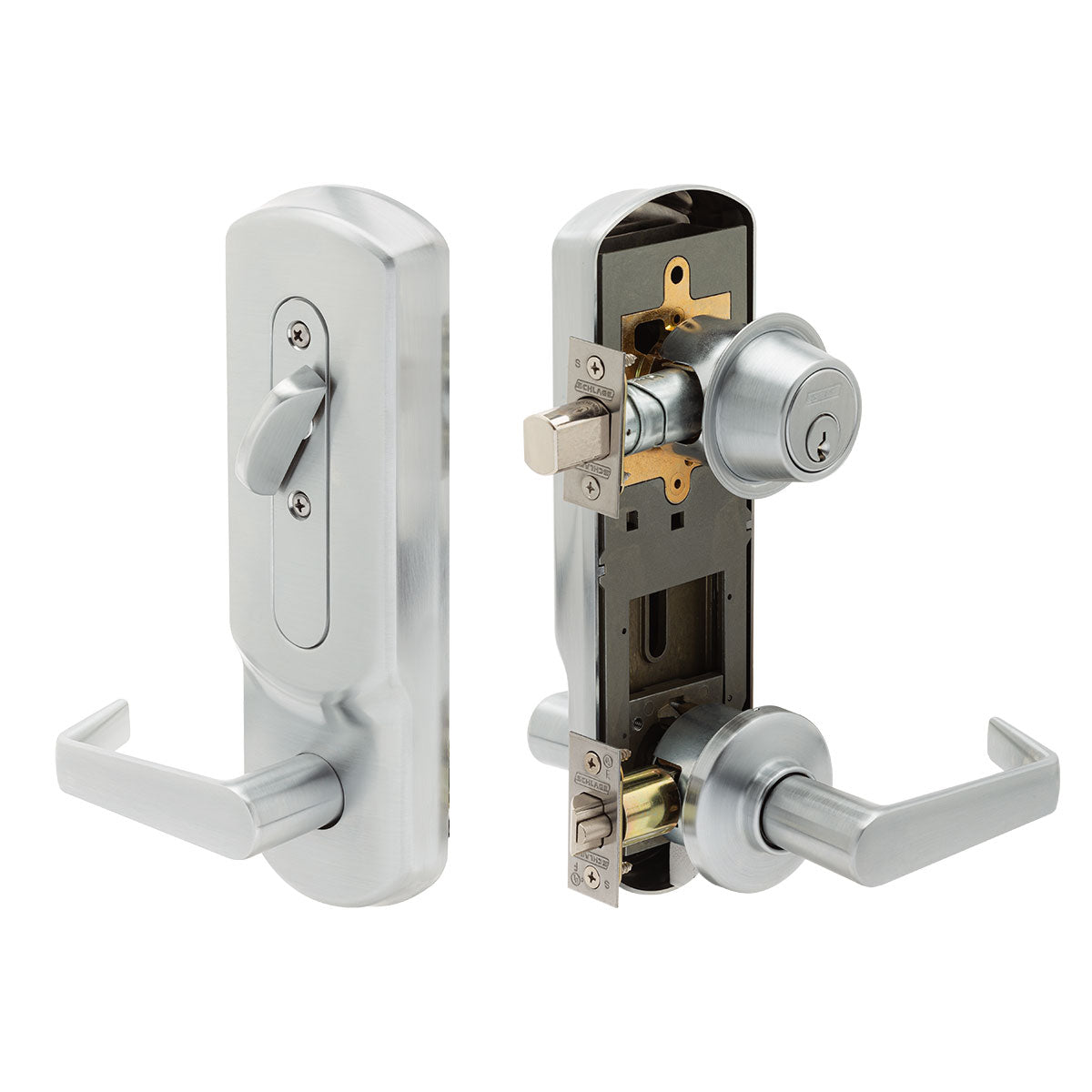

Schlage Lock CS210-B500-PD-SAT-626-PLY CS210-B500PD SAT PLY Entrance

Product Description

The Schlage Lock CS210-B500-PD-SAT-626-PLY is designed for both residential and commercial settings. This interconnected lock offers a reliable solution that meets safety standards. It allows a single motion egress by rotating the inside lever, which retracts both the latch and deadbolt. This product complies with Life and Safety codes and exceeds BHMA Grade 2 requirements.

• UL listed for three-hour fire doors
• Solid zinc bolt with hardened steel anti-saw pin
• Adjustable escutcheon for various door preps

Product Highlights

This lock is suitable for medium-duty usage and comes with a ten-year limited warranty, ensuring durability.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Single Locking Entry

Technical Specifications

• Finishes: 626 Satin Chrome
• Lever Design: Saturn
• Backset: 2-3/8 inches to 2-3/4 inches adjustable
• Latch Size: 1 inch x 2-1/4 inches
• Deadbolt Size: 1 inch x 2-1/4 inches
• Keyway: Schlage C Keyway
• Usage: Medium Duty
• ANSI/BHMA Standard: Grade 2
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL listed for up to three hours
• Handing: Non-Handed
• Door Thickness: 1-3/4 inches to 2 inches
• Keys Included: 2
• Lock Type: Interconnected
• Product Model: CS210-B500
• Product Category: Mechanical Locks
