Schlage Lock Co F60VCAMXACC716 Entrance Handleset

Product Description

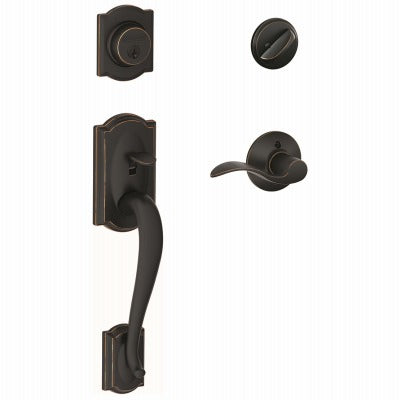

The SCHLAGE LOCK CO F60VCAMXACC716 is a single cylinder entrance handleset in an aged bronze finish, combining the Camelot exterior trim with the Accent interior lever. Designed for residential entry doors, this handleset integrates a deadbolt and a latch into one complete unit. The deadbolt is thrown or retracted by key from the outside or by a turn unit from the inside. The latch is retracted by the thumb piece from the outside or by the interior lever. It ships as a complete visual pack and is installed by a licensed locksmith or a qualified door hardware professional.

This handleset suits standard residential entry door applications. The adjustable backset accommodates both 2-3/8 inch and 2-3/4 inch backset doors, covering the most common residential framing configurations. The dual-option latch features a radius corner and drive-in design, fitting door thicknesses of 1-5/8 inches or 1-3/4 inches. The aged bronze finish coordinates with matching Schlage hardware across the Camelot and Accent product lines.

Key Features

• Single cylinder deadbolt keyed from outside, turn unit from inside
• Adjustable backset fits 2-3/8 inch or 2-3/4 inch door preparations
• Dual-option latch with radius corner and drive-in installation
• Compatible with door thicknesses of 1-5/8 inches and 1-3/4 inches
• 5-pin tumbler C keyway for standard residential keying systems
• ANSI Grade 2 rated construction
• Complete visual pack — all hardware included

Compatibility

Designed as an OEM-style replacement or new-installation handleset for standard residential entry doors with a single bore or prep cut accepting a 2-3/8 inch or 2-3/4 inch backset and a door thickness of 1-5/8 inches or 1-3/4 inches.

Installation Notes

Installation is typically performed by a licensed locksmith or experienced door hardware installer. Power down any associated electronic access systems before beginning work. Verify door prep dimensions — bore diameter and backset — before starting installation to ensure correct fit. Follow local building codes for residential egress hardware requirements when replacing or upgrading entry locksets.
