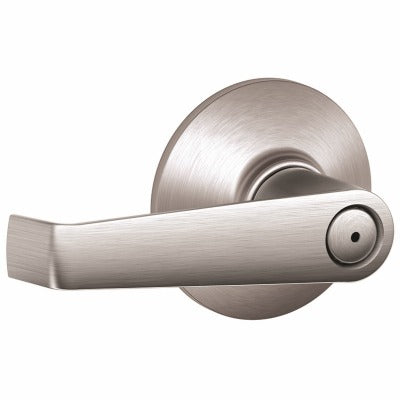

Schlage Lock Co F40CSVELA626 Privacy Lockset Satin Chrome

Product Description

The SCHLAGE LOCK CO F40CSVELA626 is a satin chrome privacy lockset designed for standard duty commercial applications. Part of the Contractor Series, it features the Elan lever design and accepts a universal backset of either 2-3/8 inches or 2-3/4 inches, making it adaptable to most standard door preparations. The lockset meets ANSI Grade 2 quality standards and the Elan lever design satisfies handicap accessibility codes. Licensed locksmiths, commercial contractors, and facility maintenance technicians typically specify and install this hardware in interior commercial door applications requiring privacy function.

This privacy lockset is suited for standard duty commercial environments such as offices, restrooms, and similar interior spaces where a push-button or turn-button privacy lock is required. The universal backset accommodates the two most common door preparations without requiring separate hardware, reducing installation complexity. The satin chrome finish provides a consistent aesthetic with other 626-finish hardware. Packaged in a visual pack with a quantity of 4 units per package, this lockset is appropriate for multi-door commercial projects and contractor installs.

Key Features

• Elan lever design meets handicap accessibility codes
• Universal backset accepts 2-3/8 inch or 2-3/4 inch door preparations
• ANSI Grade 2 quality rating for standard duty commercial use
• Satin chrome (626) finish for a clean, consistent look
• Contractor Series construction suited for commercial installation volume
• Visual pack format with 4 units per package

Compatibility

Designed as an OEM-style replacement or new-installation privacy lockset for standard duty commercial interior doors with a 2-3/8 inch or 2-3/4 inch backset preparation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware contractor in accordance with applicable building codes. Ensure the door is closed and the latch mechanism is fully retracted before tightening all mounting hardware. Verify backset measurement on the door before installation to select the correct backset position on the universal latch. Do not over-tighten through-bolts, as this can bind the lever and affect privacy function.
