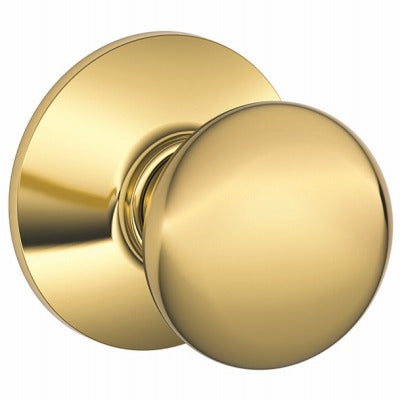

Schlage Lock Co F10V Ply 605 Passage Lockset Bright Brass

Product Description

The SCHLAGE LOCK CO F10V PLY 605 is a passage lockset in a bright brass finish, built for interior doors that require turn-free operation without a locking function. The Plymouth design features a solid brass knob and a dual-option latch that accepts both radius corner and drive-in installation styles. The universal backset accommodates 2-3/8 inches or 2-3/4 inches, covering the most common residential door preparations without requiring a separate latch purchase. It carries an ANSI Grade 2 quality rating and comes backed by a 10-year finish warranty and a lifetime mechanical warranty.

This passage lockset is suited for residential interior applications such as hallways, closets, and common-area doors where locking hardware is not required. The dual-option latch plate and universal backset make it adaptable across a wide range of standard door preps. The visual pack format is intended for retail or jobsite environments where identifying the product before opening the package is useful. Installation is straightforward for carpenters, general contractors, or experienced DIYers working on new construction or remodel projects.

Key Features

• Passage function — no locking mechanism, free rotation from both sides
• Plymouth knob design in bright brass (605) finish
• Solid brass knob construction
• Dual-option latch accepts radius corner or drive-in installation
• Universal backset fits 2-3/8 inches or 2-3/4 inches door preparations
• ANSI Grade 2 rated; 10-year finish warranty and lifetime mechanical warranty

Compatibility

Designed as an OEM-style replacement or new-installation passage lockset for standard residential interior doors with a 2-3/8 inches or 2-3/4 inches backset and a compatible bore hole diameter.

Installation Notes

Installation is typically performed by a carpenter or general contractor and requires a standard door bore kit, chisel, and screwdriver. Power down any adjacent electronic door hardware before beginning work. Verify the door thickness and backset measurement before selecting the latch position on the dual-option faceplate. Follow local building codes for interior door hardware requirements on applicable project types.
