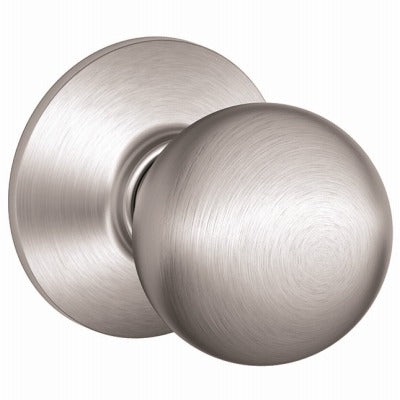

Schlage Lock Co F10CSVORB626 Passage Lockset

Product Description

The SCHLAGE LOCK CO F10CSVORB626 is a passage lockset designed for commercial and residential doors that require free passage without locking function. Built to ANSI Grade 2 standards, this unit features the Orbit design in a satin chrome finish and accepts a universal backset, fitting both 2-3/8 inch and 2-3/4 inch backset configurations. Part of the Contractor Series, it is rated for standard duty commercial applications and is sold in a visual pack format. Licensed locksmiths, general contractors, and commercial maintenance technicians are the typical installers.

This passage lockset is suited for interior doors in commercial settings such as offices, hallways, and storage rooms where access control is not required. The universal backset compatibility makes it adaptable to a wide range of standard door preparations. The Contractor Series designation indicates it is intended for volume installation projects and standard duty service environments. Each unit is packaged individually in a visual pack, with a package quantity of four units per order.

Key Features

• ANSI Grade 2 quality rating for standard duty commercial applications
• Orbit design in satin chrome finish
• Universal backset fits both 2-3/8 inch and 2-3/4 inch backset door preps
• Passage function — no locking mechanism, free rotation at all times
• Contractor Series construction for volume commercial installation
• Visual pack packaging for easy identification at point of sale or jobsite

Compatibility

Designed as an OEM-style replacement or new-installation passage lockset for standard duty commercial door preparations accepting a 2-3/8 inch or 2-3/4 inch backset.

Installation Notes

Installation is performed by licensed locksmiths or qualified contractors following standard door hardware procedures. Power down or de-energize any adjacent electronic access control components before service on adjacent hardware. Verify door prep dimensions, including backset distance and cross-bore diameter, before installation to ensure proper fit. Follow all applicable local building codes for commercial door hardware requirements.
