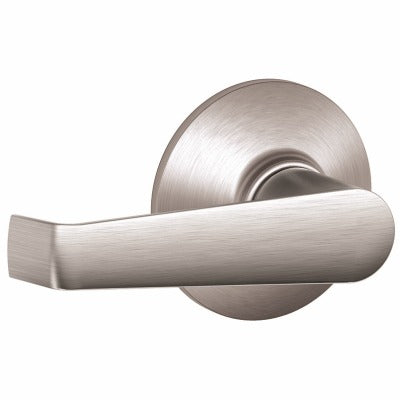

Schlage Lock Co F10CSVELA626 Passage Lockset Satin Chrome

Product Description

The SCHLAGE LOCK CO F10CSVELA626 is a satin chrome passage lockset built for standard-duty commercial applications. Featuring the Elan design, this unit uses a universal springlatch that accepts both 2-3/8 inch and 2-3/4 inch backsets, making it adaptable to a wide range of door preparations without requiring separate hardware. It carries an ANSI Grade 2 rating, placing it in the contractor-grade commercial category. This lockset is intended for passage function — meaning the latch retracts freely from either side with no locking mechanism — and is supplied in a visual pack format suitable for counter or shelf display. Installation is handled by licensed locksmiths, general contractors, or facilities maintenance personnel.

This lockset is designed for standard-duty commercial environments where passage function is required — corridors, storerooms, and interior doors that do not require a privacy or keyed lock. The Elan design offers a streamlined lever profile appropriate for light commercial and institutional settings. The unit meets applicable handicap accessibility codes, making it suitable for ADA-compliant door hardware installations. It is sold in a package quantity of 4 units per pack. For a matching privacy function in the same Elan design and satin chrome finish, refer to part 397 023.

Key Features

• Universal springlatch accepts both 2-3/8 inch and 2-3/4 inch backsets
• ANSI Grade 2 commercial quality rating
• Passage function — latch retracts freely from both sides, no locking
• Meets handicap accessibility code requirements
• Satin chrome (626) finish on Elan lever design
• Visual pack format, 4 units per package

Compatibility

Designed as an OEM-style contractor-series replacement or new-installation passage lockset for standard-duty commercial doors with a 2-3/8 inch or 2-3/4 inch backset preparation. For matching privacy function hardware, see part 397 023.

Installation Notes

Installation is performed by a licensed locksmith, carpenter, or qualified facilities technician familiar with commercial door hardware. Verify door prep dimensions — backset, cross-bore diameter, and edge-bore diameter — before installation to confirm compatibility with existing door preparation. Disconnect any electronic access control or door alarm circuits tied to the door before beginning work. Follow local building codes and ADA requirements for lever height and clearance when positioning the lockset on the door.
