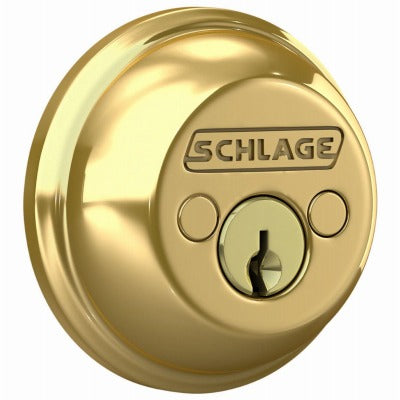

Schlage Lock Co B62NV505 Double Cylinder Deadbolt

Product Description

The SCHLAGE LOCK CO B62NV505 is a double cylinder deadbolt designed for maximum residential security applications. Both the interior and exterior sides require a key to operate, making it appropriate for doors with glass panels or sidelights where a single-cylinder deadbolt could be bypassed. The unit ships in a Bright Brass finish with the Ultima lifetime anti-tarnish coating and carries a Grade 1 security rating, the highest classification for residential door hardware. The dual-option latch accommodates a 2-3/8 inch or 2-3/4 inch backset, eliminating the need to specify backset at the time of order. It weighs 8.8 pounds and is sold in a package quantity of 4.

This deadbolt is suited for exterior residential door applications where added security is required, particularly on doors that include glass elements adjacent to the lock cylinder. The radius corner and drive-in strike plate options support compatibility with a range of standard door frame preparations. The unit of measure is each (EA), and the visual pack format allows for retail or contractor-supply display. Installation is straightforward for a licensed locksmith or general contractor working on residential or light commercial entry doors.

Key Features

• Double cylinder operation — key required on both interior and exterior sides
• Grade 1 security rating for maximum residential protection
• Universal backset adjusts to 2-3/8 inches or 2-3/4 inches
• Ultima lifetime anti-tarnish finish in Bright Brass
• Dual option latch with radius corner and drive-in strike compatibility
• Lifetime mechanical warranty included

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard residential exterior doors with a 2-3/8 inch or 2-3/4 inch backset preparation.

Installation Notes

Installation should be performed by a qualified locksmith or experienced contractor familiar with door hardware. Verify door thickness and backset measurement before installation to select the correct latch configuration. Follow local building codes regarding egress requirements when installing a double cylinder deadbolt, as some jurisdictions restrict their use on certain exit doors. Ensure all fasteners are fully seated and the deadbolt throw clears the strike plate without binding before completing the installation.
