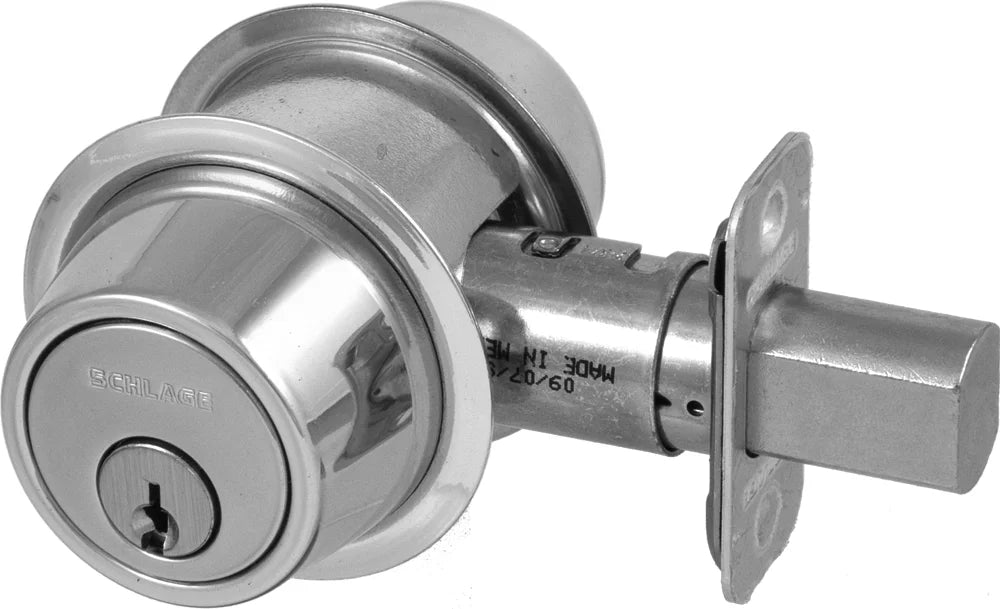

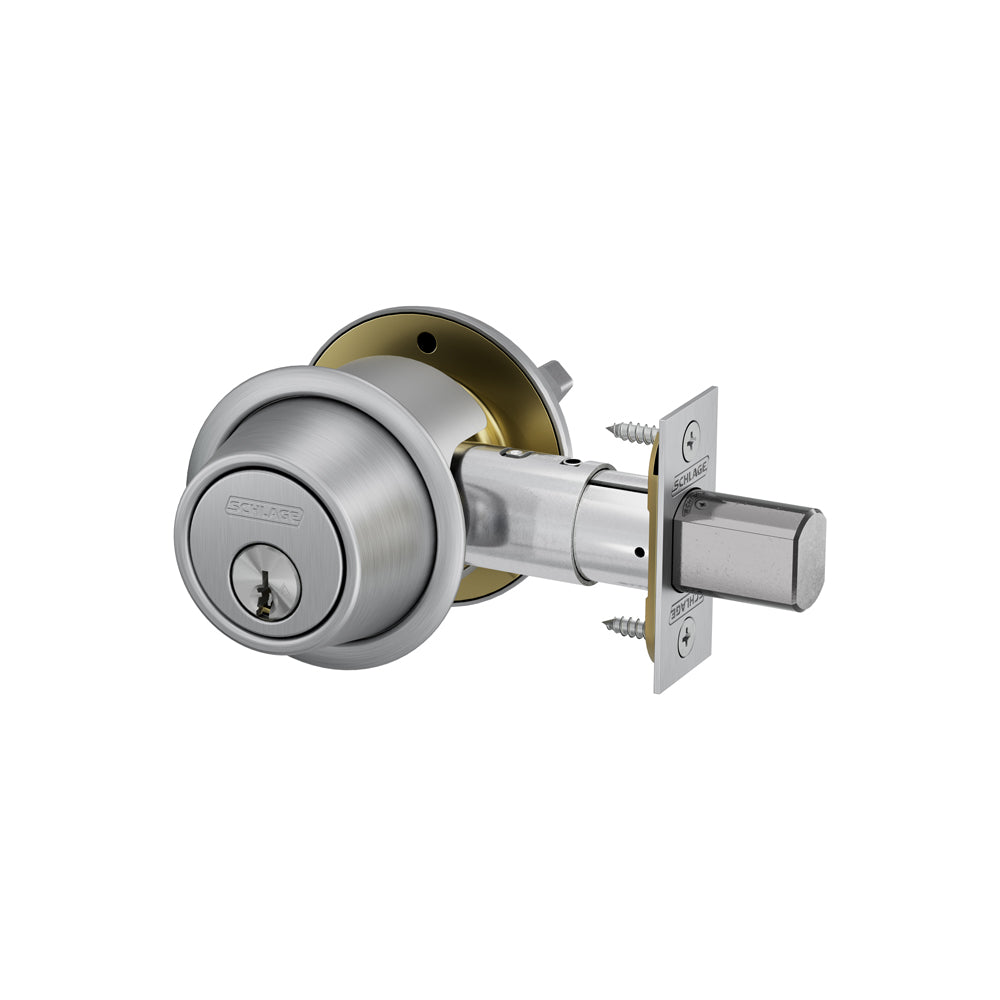

Schlage Lock B562-P6-625 KA4 C Double Cylinder Deadbolt C Keyway Keyed Alike 4 Adjustable Backset Grade 2

Product Description

The Schlage Lock B562-P6-625 KA4 C Double Cylinder Deadbolt is designed for both commercial and residential use. This Grade 2 deadbolt features a double cylinder mechanism, allowing operation by a key from either side. Constructed with solid zinc, it includes an adjustable backset and an anti-pry shield for improved security. This product meets ANSI A156.5 standards and is UL Listed for three-hour fire doors.

• Adjustable backset for easy installation.
• Anti-pry shield protects against forced entry.
• Metal dust box offers deep anchoring for added strength.

Product Highlights

The Schlage B562-P6-625 KA4 C is ideal for various applications, providing reliable security and easy implementation.

Product Information

Standard Information

• Material: Zinc, solid brass, metal dust box.
• Door Thickness: One and three-eighths inches to two and one-quarter inches.

Technical Specifications

• Deadbolt Housing Diameter: One inch.
• Throw: Zero point eight one inches x zero point six two inches x one inch.
• Backset: Adjustable for two and three-eighths inches or two and three-quarters inches.
• Faceplate: Square corner one and one-eighth inches x two and one-quarter inches.
• Strike: One and one-eighth inches x two and three-quarters inches with square corners.
• Warranty: Three-year limited mechanical warranty.
• Certifications: ANSI A156.36, grade 2.
