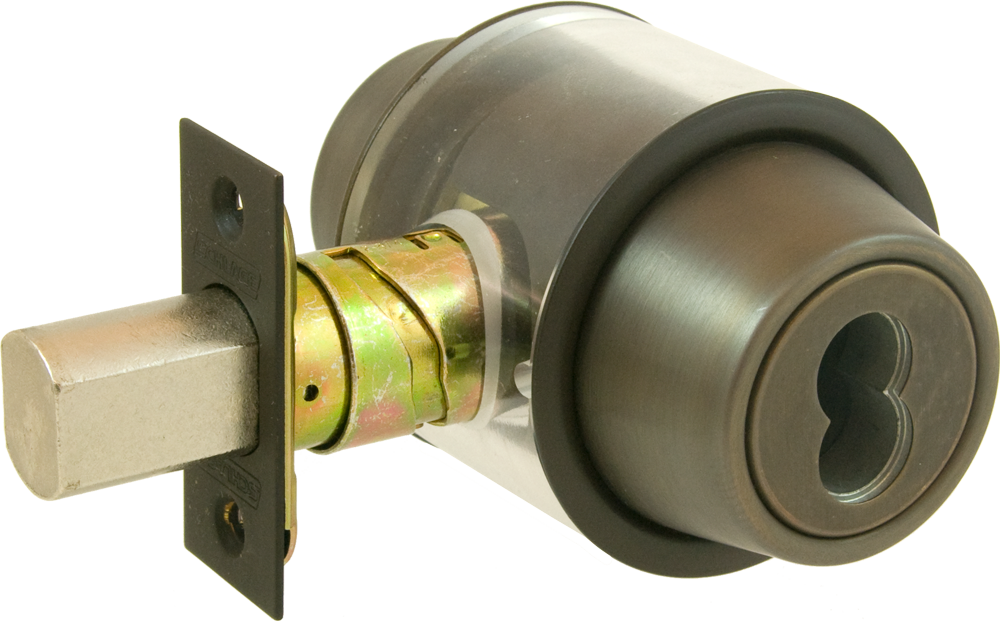

Schlage Lock B562-B-613 Deadbolt Double Cylinder, SFIC Prep, Less Core, Triple Option Adjustable Backset 2-3/8 to 2-3/4

Product Description

The Schlage Lock B562-B-613 deadbolt from the B500 series is a Grade 2 deadbolt designed for locksmiths. It accepts every Schlage cylinder format and fits most doors. This double cylinder deadbolt features enhanced lock strength and can be suited with Schlage levers and knobs. It is suitable as a primary or auxiliary lock for commercial and residential buildings.

• ANSI A156.5, 2001 grade 2
• Adjustable backset locks into place
• Metal dust box provides deep anchoring and added strength

Product Highlights

Grade 2, double cylinder deadbolt with adjustable backset and enhanced security features. Ideal for commercial and residential applications.

Product Information

Standard Information

• Brand: SCHLAGE LOCK
• Manufacturer Part Number: B562-B-613

Technical Specifications

• Material: Solid zinc cylinder housing; 1" standoff wrought brass or bronze trim ring over solid zinc spin ring.
• Door Thickness: Standard: 1-3⁄8" to 1-7⁄8" conventional cylinder or thumbturn only; 1-5⁄8" to 2" interchangeable core cylinder.
• Backset: 2-3/8"-2-3/4"
• Faceplate: 1" x 2-1⁄4", Square corner faceplate standard.
• Bolt: Solid zinc bolt with hardened steel anti-saw pin insert; 1" housing diameter, 1" throw.
• Strike: 1-1⁄8" x 2-3⁄4", Square corner, metal box.
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus security levels with available master keying and construction keying.
• Attachment: Three 3" screws anchor metal dust box to frame. 1⁄4" machine screws through bolt to firmly anchor lock to door.
• Certifications: ANSI A156.36, grade 2. When installed with SFIC cylinder, grade 3
• Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Double Cylinder, Double Cylinder (Commercial), Lock Sets
• Cylinder Type: Less Core, SFIC
• Deadbolt Functions: Double Cylinder
• Deadbolt Type: Commercial
• Door Application: Commercial Deadbolts
• Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
• Finish Code: 613
• Grade: Grade 2
• Handing: Non-Handed
• Keyway Brand: Schlage
• Latchbolt Type: Triple Option Adjustable Deadbolt
