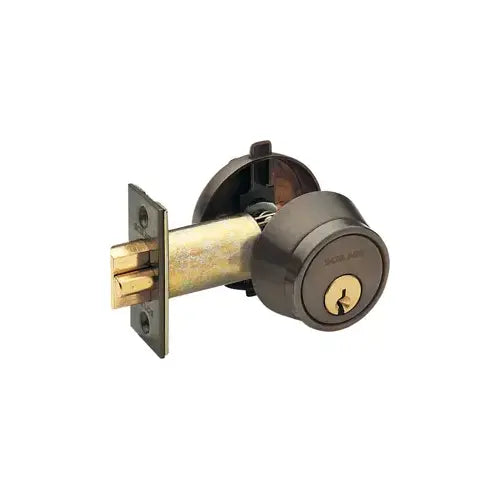

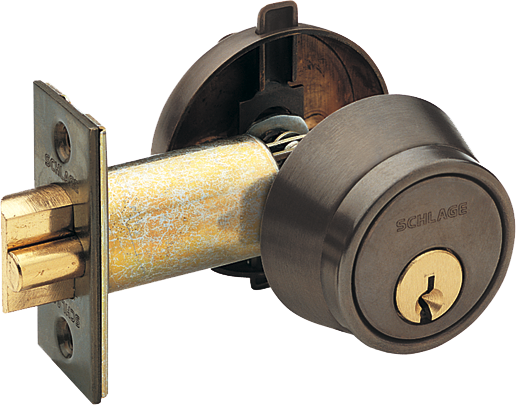

Schlage Lock B250-PD6-605 Gatelatch 2-3/8 BS

Product Description

The Schlage Lock B250-PD6-605 Gatelatch features a grade 2 security rating. This single cylinder deadlatch is retractable using a key from the outside or an inside turn unit. The hold-back feature allows the latch to remain retracted when needed. Designed specifically for gate lock applications.

• Grade 2 security rating
• Single cylinder with a six-pin cylinder, pinned five
• Deadlatch retractable by key or inside turn unit

Product Highlights

This lock offers reliable security for gates, ensuring safety and ease of use.

Product Information

Standard Information

• Brand: Schlage Lock
• Manufacturer Part Number (MPN): B250-PD6-605 2-3/8 BS

Technical Specifications

• Alternate Part Number-1: 137805
• Grade: Grade 2
• Backset: 2-3/8 inches
• Handing: Non-Handed
• Keyway: Schlage C
• Function: Single Cylinder Deadlatch
• Cylinder Included: Yes
• Cylinder Type: 6-Pin Cylinder, Pinned 5
• Strike Size: 2-3/4 inches x 1-1/8 inches
• Restricted Keyway: No
• Latch Bolt Type: Deadlatch
• Latch Bolt Faceplate Size: 2-1/4 inches x 1-1/8 inches
• Door Bore Size: 1-1/2 inches
• Lock Category: Gate Lock
• Door Thickness Min: 1-1/2 inches
• Latch Bolt Face Type: Square Corner
• Latch Bolt Throw: 9/16 inches
• Door Thickness Max: 1-3/4 inches
• Knob/Lever Style: Inside Thumbturn
• Height: 2.75
• Length: 5.75
• Width: 4.5
