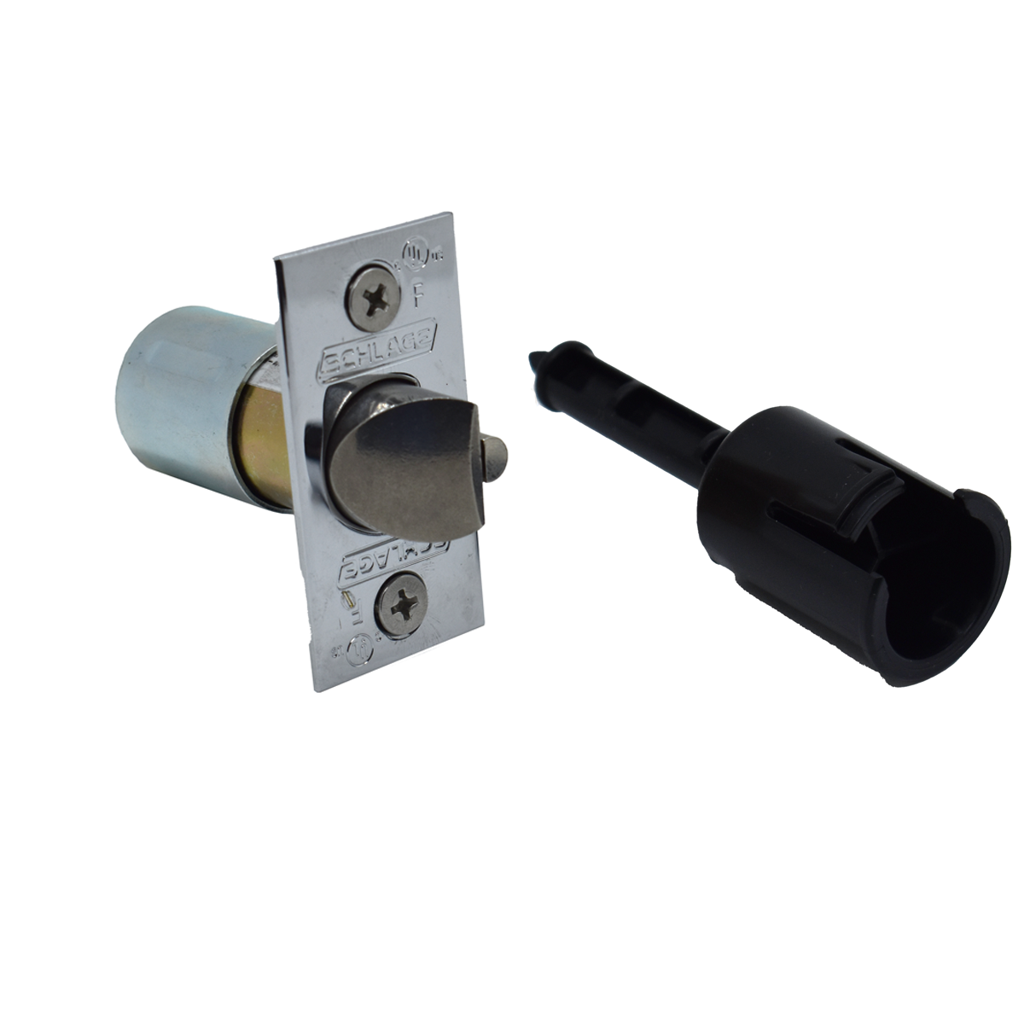

Schlage Lock ALX FK 80 626 234 Storeroom Function Kit 2-3/4-In. Backset

Product Description

The Schlage Lock ALX FK 80 626 234 is a Grade 2 modular cylindrical storeroom function kit. It is designed for durability and reliability. This kit is suitable for most door functions and cylinder applications. The ALX Series allows for setup and exchange in the field. It includes a field-selectable Vandlgard feature that enhances security.

• Compatible with doors of one and three-eighths inches to one and three-quarters inches thick.
• Includes captured screws in latch, strike, and spring cage to prevent loose parts.
• Features a Vandlgard option that can be chosen based on user needs.

Product Highlights

This function kit is ideal for commercial and residential use, meeting various security demands.

Product Information

Standard Information

• Brand: Schlage Lock
• Function: Storeroom

Technical Specifications

• For Use With: Schlage ALX Series Levers
• Door Thickness: One and three-eighths inches to one and three-quarters inches
• Grade: Grade 2
• Backset: Two and three-quarters inches
• Fire Rated: Three hours
• Origin: Mexico
• Alternate Part Number: 169823
• Finish Code: 626
• Height: One and a half inches
• Length: Six and a half inches
• Width: Three and a half inches
