Schlage Lock ALX CK 605 Chassis Kit

Product Description

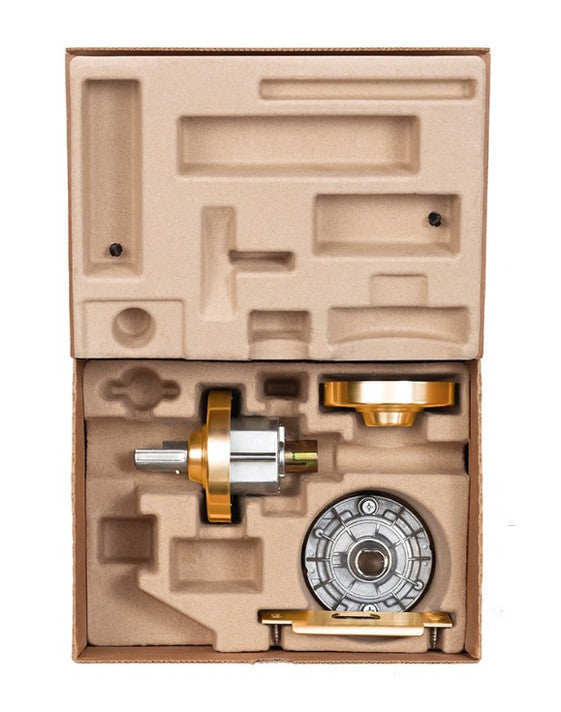

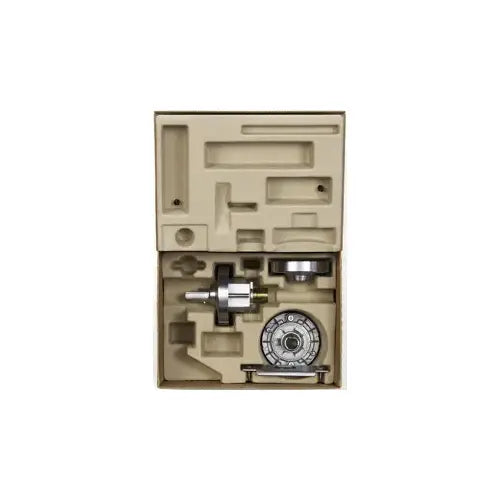

The Schlage Lock ALX CK 605 Chassis Kit includes essential components for installation. This kit comes with the chassis, inside spring cage, Rhodes rose, and ANSI strike. It is designed for Schlage ALX Series Levers and accommodates door thicknesses ranging from one and three-eighths inches to one and three-quarters inches. The product is UL 10C listed for three-hour fire doors, ensuring safety compliance. It also meets ADA standards for accessibility.

• Includes chassis, inside spring cage, Rhodes rose, and ANSI strike.
• Designed for Schlage ALX Series Levers with a door thickness of one and three-eighths to one and three-quarters inches.
• UL 10C listed for three-hour fire door and ADA compliant.

Product Highlights

This chassis kit provides the necessary components for secure door functionality while ensuring compliance with safety standards.

Product Information

Standard Information

• Grade: Grade 2
• Fire Rated: Yes

Technical Specifications

• For Use With: Schlage ALX Series Levers
• Includes: Chassis, Inside Spring Cage, Rhodes Rose, ANSI Strike
• Finish: 605 - Bright Brass
• Door Thickness: One and three-eighths to one and three-quarters inches
• ANSI Number: A156.2-2011 Series 4000, Grade 2
• ADA Compliance: Yes
• Color: Bright Brass
• Handing: Reversible
• Strike: ANSI Strike
