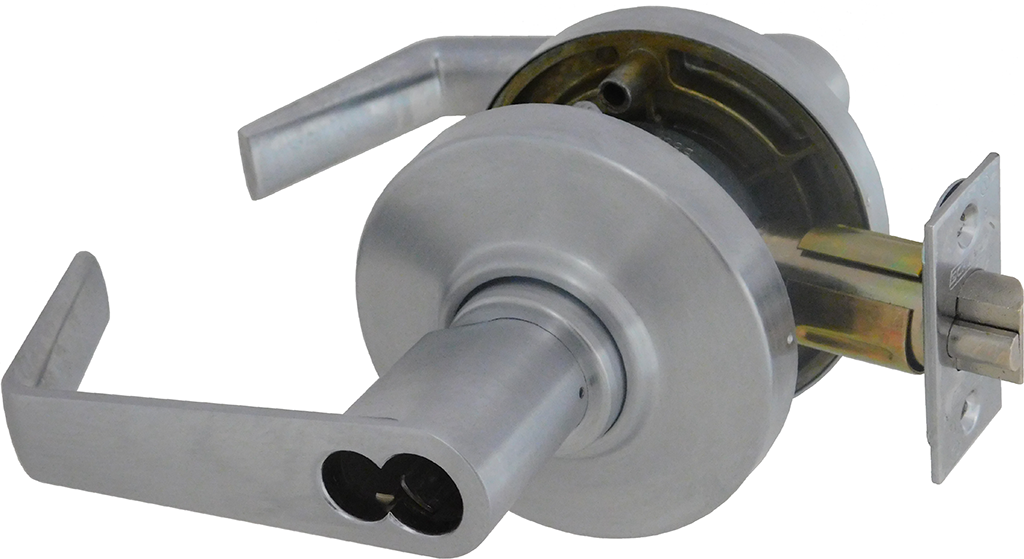

Schlage Lock AL53-JD-SAT-626 Standard Duty Entrance Lever Lock Large format IC core

Product Description

The Schlage Lock AL53-JD-SAT-626 is a standard-duty entrance lever lock designed for large format IC cores. This lockset is made from quality metals and meets ANSI 156.2 and BHMA Grade 2 certifications. It is engineered for doors with a thickness of one and three-eighths inches to one and seven-eighths inches.

• Full Size Interchangeable Core (FSIC) for easy keyway changes
• Exceeds ANSI 156.2 and BHMA Grade 2 standards
• Panic-proof design keeps inside lever always unlocked

Product Highlights

This lock is ideal for commercial and residential use, providing reliable security and functionality.

Product Information

Standard Information

• Brand: Schlage Lock
• MPN: AL53-JD-SAT-626

Technical Specifications

• Fire Rated: 3 Hours
• Warranty: 3 Year Limited Warranty
• Base Material: Brass, Bronze
• UL Listing: ANSI A156.2-2011, Series 4000, Grade 2, UL Listed
• Hand: Non-handed
• Function: Entrance Lock
• Cylinder Type: Schlage FSIC Less Core
• BAA Qualified: Yes
• Series: AL Series Lever Locks
• Finish: 626/US26D
• Country Of Origin: Mexico
• Finish Description: Satin Chrome
• Grade: Grade 2
• Backset: 2-3/8inch, 2-3/4inch, 3-3/4inch, 5inch
• Cross Bore: 2-1/8inch
• Edge Bore: 1inch
• Door Thickness: 1-3/8inch to 1-7/8inch
• Handing: Reversible
• Lever Length: 4-1/4inch
• Projection: 2-1/2inch
• Latch Faceplate: Round Corner, Square Corner, or Drive-In
• ADA Compliant: Yes
• Panic Proof: Yes
