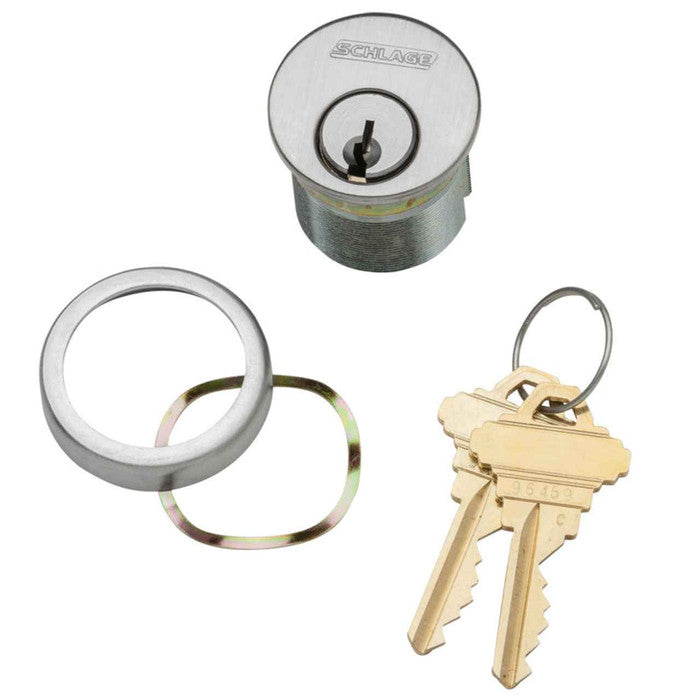

Schlage Lock 30-001-F-626-KD-118 Commercial 30-001 1-1/8 inches 6-Pin Mortise Cylinder Schlage L Cam Compression Ring & Spring

Product Description

The Schlage Lock 30-001-F-626-KD-118 is a commercial mortise cylinder measuring 1-1/8 inches and featuring a six-pin design. It includes a Schlage L cam, compression ring, and spring. This cylinder can be adapted to different types such as mortise, rim, and key-in-lever by changing its components. It is compatible with thicker doors and allows for key interchangeability among Everest 29, Primus XP, and Classic key systems.

• Converts to multiple cylinder types by altering tailpiece, cam, or rear housing.
• Accommodates thicker doors with various rear housing lengths.
• Available front housing finishes match existing locks.

Product Highlights

This product is designed for easy adaptability and compatibility, making it suitable for various locking needs in commercial settings.

Product Information

Standard Information

• SKU: 30-001 S123 118 626
• Application: Compression Ring & Spring

Technical Specifications

• Warranty: 3 Year
• Product Group: Parts and Accessories
• Subcategory: Parts and Accessories
• Product Subgroup: Cylinders
• Product Type: Cylinders
• ANSI/BHMA: BHMA certified to ANSI A156.5 2001
• Commercial/Residential: Commercial
• Cylinder and Keyways: Mortise Cylinder
• Lock Type: Mortise
• Compatibility: Schlage L Mortise Locks less L9060 Exterior
• Package Includes: Compression Ring and Spring
• Parts and Accessories Type: Replacement Parts
• Product Model: 30-001
• Door Hand Direction: Non-Handed
• Product Category: Mechanical Locks
