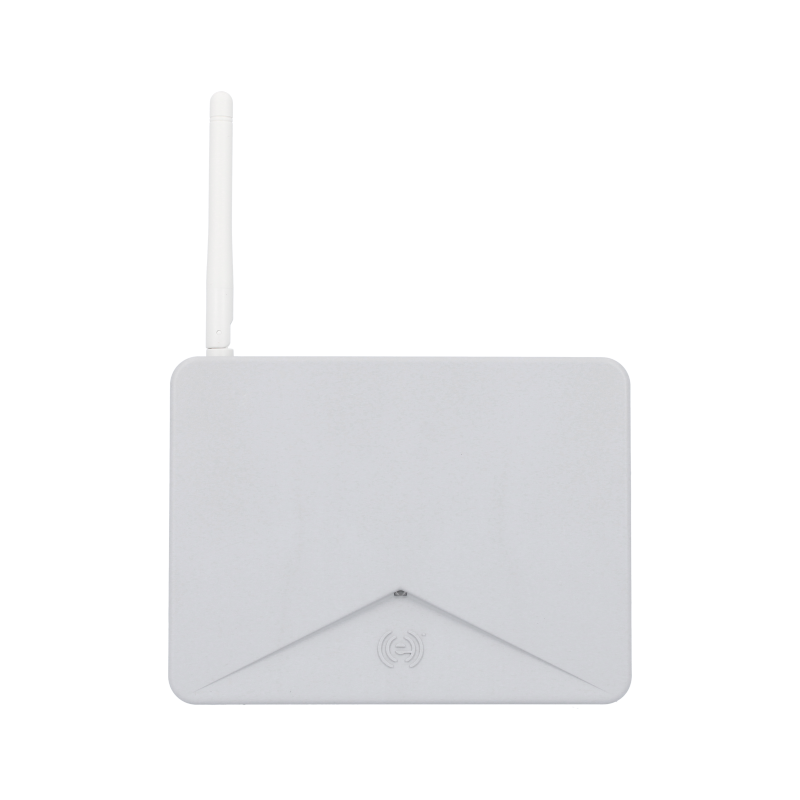

Schlage GWE2 Engage Gateway PoE 12-24V Supports up to 5 Devices

Brand: SCHLAGE
SKU: GWE2
Availability: In Stock

Ships same day if ordered by 12 pm
$500.99
$500.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Schlage GWE2 Engage Gateway (MPN GWE2) is a network gateway that links ENGAGE-enabled wireless locks and devices to access control systems using encrypted Bluetooth and IP or RS-485 connectivity. It supports real-time connectivity with controllers such as the ADH10K and can manage up to five ENGAGE devices for interior suite entries, offices, conference rooms, and other controlled areas. The gateway supports PoE or 12/24 VDC power inputs and operates between 0 and 49 degrees C.

  • Manages up to 5 ENGAGE-enabled wireless locks and devices with encrypted Bluetooth linking
  • Built-in Power over Ethernet (IEEE 802.3af) and RS-485 ports; supports 12 VDC or 24 VDC power input
  • Supports 2.4 GHz Bluetooth (BLE) communications, TLS 1.2 to IP hosts, LED status indicators, and multiple mounting options

Product Highlights

Gateway for ENGAGE platform; AES-256 encrypted Bluetooth; PoE or 12/24 VDC power; up to 5 linked devices; indoor use; 0 to 49 °C operating range.

Product Information

Standard Information

  • Brand: SCHLAGE
  • Manufacturer Part Number: GWE2
Technical Specifications
Brand
SCHLAGE
MPN
GWE2
Model
GWE2
Communication protocol
2.4 GHz Bluetooth (BLE) - Engage; Bluetooth 5.x features supported as documented (BLE, adaptive channeling)
Encryption (gateway to lock)
AES-256
Encryption (gateway to ACP or IP host)
TLS 1.2 or greater; optional AES-128 to ACP
Max linked devices
Up to 5 ENGAGE-enabled devices/locks
Power options
Power over Ethernet (PoE, IEEE 802.3af) or DC input (12 VDC or 24 VDC). Use only one power source at a time.
PoE compliance
IEEE 802.3af (Class 0 PD)
Operating current
PoE: ~60 mA @ 48 V nominal (≈2.9 W); 12 VDC: 330 mA (≈3.96 W); 24 VDC: 100 mA (≈2.4 W)
Input Voltage
12 V to 24 V DC (terminals); PoE via RJ45
Operating temperature
0 to 49 °C (32 to 120 °F)
Operating humidity
Tested to 93% RH at 32 °C; intended for indoor protected environments
Dimensions (HxWxD)
5.1 in x 6.0 in x 1.2 in (HxWxD)
Weight
0.54 lb (8.6 oz / 0.24 kg)
RS-485 wiring
2- or 4-wire RS-485 shielded twisted pair; 24 AWG recommended; max distance up to 4000 ft (1219 m)
Ethernet/PoE max distance
CAT3/CAT5/5E/CAT6 up to 328 ft (100 m)
DC power input cable spec
Belden 8760 or equivalent, 18 AWG, 2 conductor; max distance 1000 ft (305 m)
Cable specification (gateway to ACP)
24 AWG, 2 or 4 conductor shielded (Belden 9842, 9841 or equivalent) up to 4000 ft (1219 m)
Visual indicators
Status LED and Ethernet RJ45 Link/Activity and Speed LEDs
Antenna types
External whip antenna (Taoglas GW.11.A153W, max gain 2.3 dBi) or printed IFA Allegion PCB (≈1.94 dBi)
Mounting options
Desk, wall, single/double gangbox mounting
Environmental rating / Intended use
Indoor use; install within protected/ambient range (0 to 49 °C), tested humidity per documentation
UL/ULC classifications
UL294 Access Control Levels as documented; Classified per referenced ULC standard
Factory features
Factory Default Reset (FDR) supported; LED indicators for power/link/transmit/receive/commissioning
Firmware version (documented)
05.xx.xx
