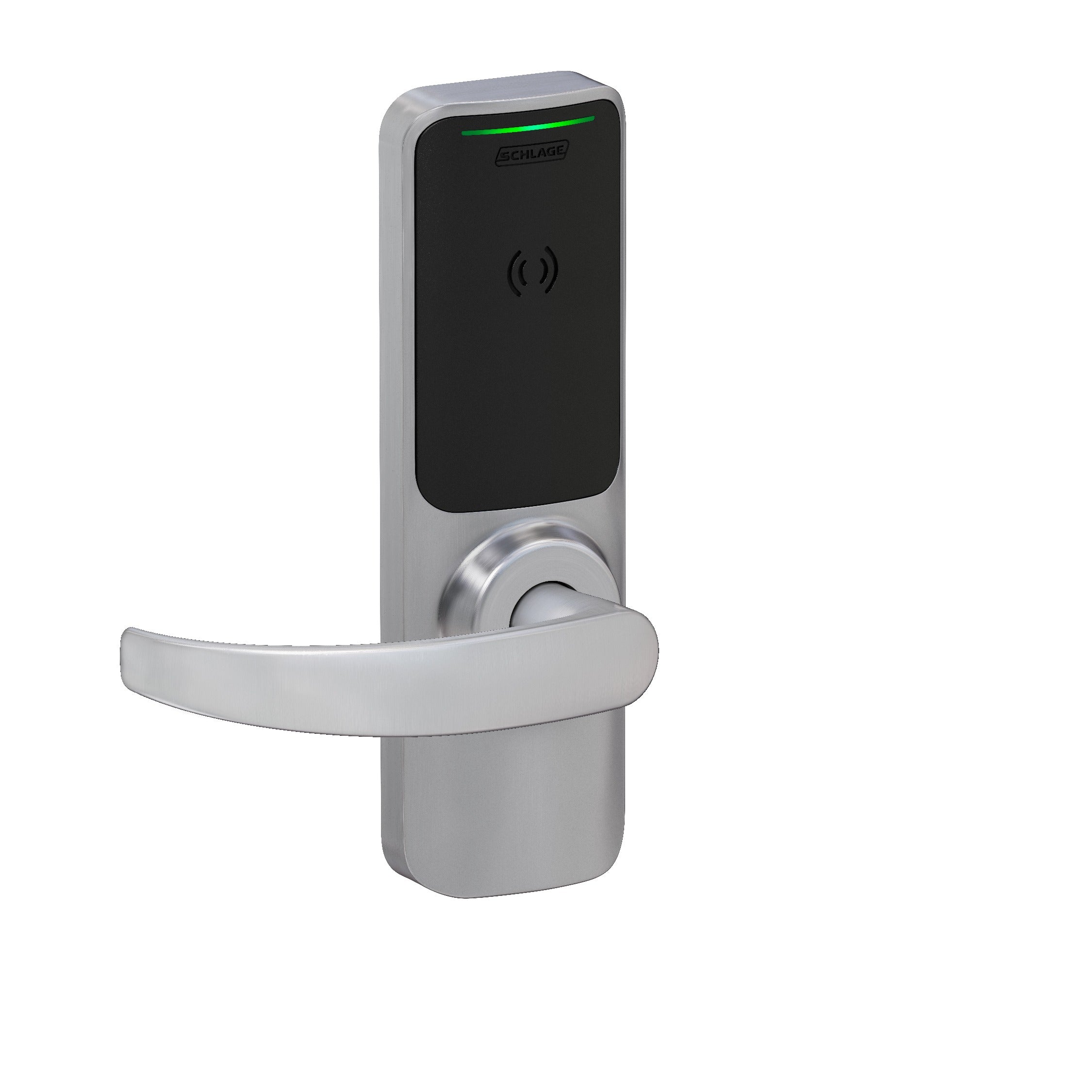

Schlage Electronics XE360TOFISMP6NEP626 Wireless Tubular Lock

Product Description

The SCHLAGE ELECTRONICS XE360TOFISMP6NEP626 is a wireless tubular lock from the XE360 Series, designed for offline access control applications in commercial and institutional buildings. It features an offline indicator function, a Smart Mobile Reader, and a Neptune lever handle. The lock is finished in satin chrome and includes a 6 pin C keyway, making it suitable for facilities that require both electronic credential management and traditional key override capability. Licensed locksmiths and commercial security technicians are the primary installers of this hardware.

The XE360 Series wireless tubular lock is built for commercial doors in office buildings, multi-family residential properties, healthcare facilities, and institutional environments where managed access control is required. The offline indicator function alerts personnel when the lock is operating outside of network connectivity, and the Smart Mobile Reader enables credential management via mobile device. The Neptune lever meets standard commercial door prep requirements and the satin chrome finish suits a wide range of door hardware configurations.

Key Features

• Wireless tubular lock design for offline access control environments
• Offline indicator function signals network disconnection status
• Smart Mobile Reader enables mobile credential management
• Neptune lever handle with satin chrome finish
• 6 pin C keyway provides mechanical key override capability
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement and standard installation option for commercial tubular lock applications within the XE360 Series product family.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial security technician familiar with electronic access control hardware. Power down or disable the access control system before servicing or replacing the lock assembly. Follow the door manufacturer specifications for proper bore and prep dimensions before mounting. Local building and fire codes may govern egress hardware requirements and should be consulted prior to installation.
