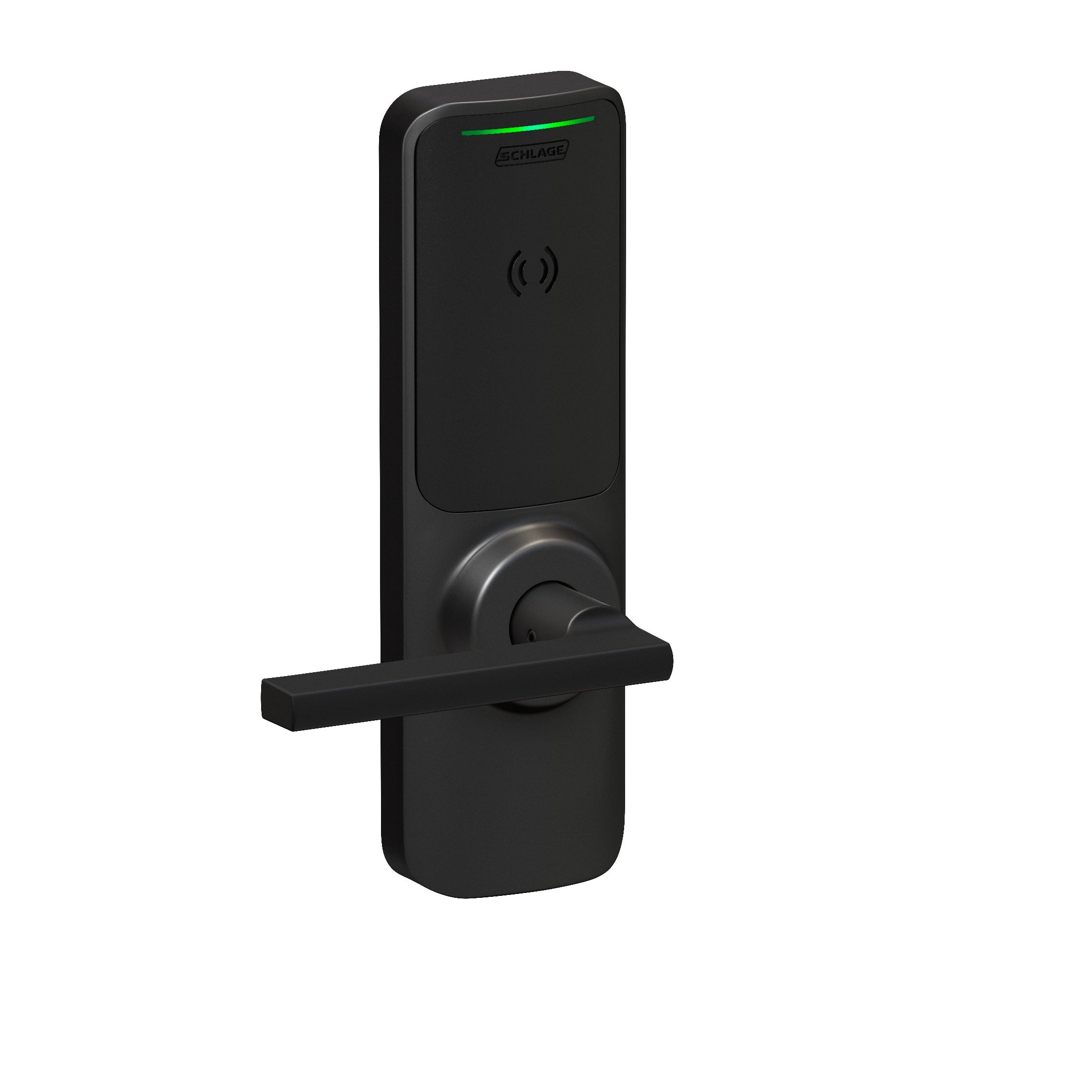

Schlage Electronics XE360MOFISMP6LAT622 Wireless Mortise Lock

Product Description

The SCHLAGE ELECTRONICS XE360MOFISMP6LAT622 is a wireless mortise lock from the XE360 Series, engineered for offline access control applications in commercial and institutional settings. It combines an offline indicator function with a Smart Mobile Reader, allowing credential management without a continuous network connection. The Latitude lever handle provides a clean, professional profile suited to high-traffic entryways. A 6 Pin C Keyway cylinder is integrated for mechanical key override capability. At 9.1 pounds, the unit is a full-assembly mortise package designed for installation by qualified security hardware technicians or licensed locksmiths.

This lock is intended for commercial, institutional, and multi-family residential applications where offline wireless access control is required. Typical install scenarios include interior corridor doors, office suites, and secured areas where a hardwired access control network is not present or practical. The Smart Mobile Reader supports mobile credential use, making it appropriate for facilities adopting smartphone-based access management. The Matte Black finish suits modern commercial interior door hardware standards.

Key Features

• Offline indicator function enables access control operation without continuous network connectivity
• Smart Mobile Reader supports mobile credential authentication at the door
• Latitude lever handle with Matte Black finish for commercial-grade aesthetics
• 6 Pin C Keyway cylinder provides mechanical key override capability
• Full mortise lock assembly supplied as a single unit — Order Qty: 1 EA

Compatibility

Designed as an OEM-style replacement and new-installation mortise lock for commercial and institutional door hardware applications requiring offline wireless access control with mortise lock prep.

Installation Notes

Installation should be performed by a licensed locksmith or qualified security hardware technician familiar with mortise lock prep and low-voltage electronic hardware. Ensure door power is disconnected and any building access control system is placed in an appropriate service mode before beginning work. Door preparation must conform to the mortise pocket dimensions specified in the manufacturer installation template. Consult applicable local building and fire codes regarding hardware requirements for rated door assemblies.
