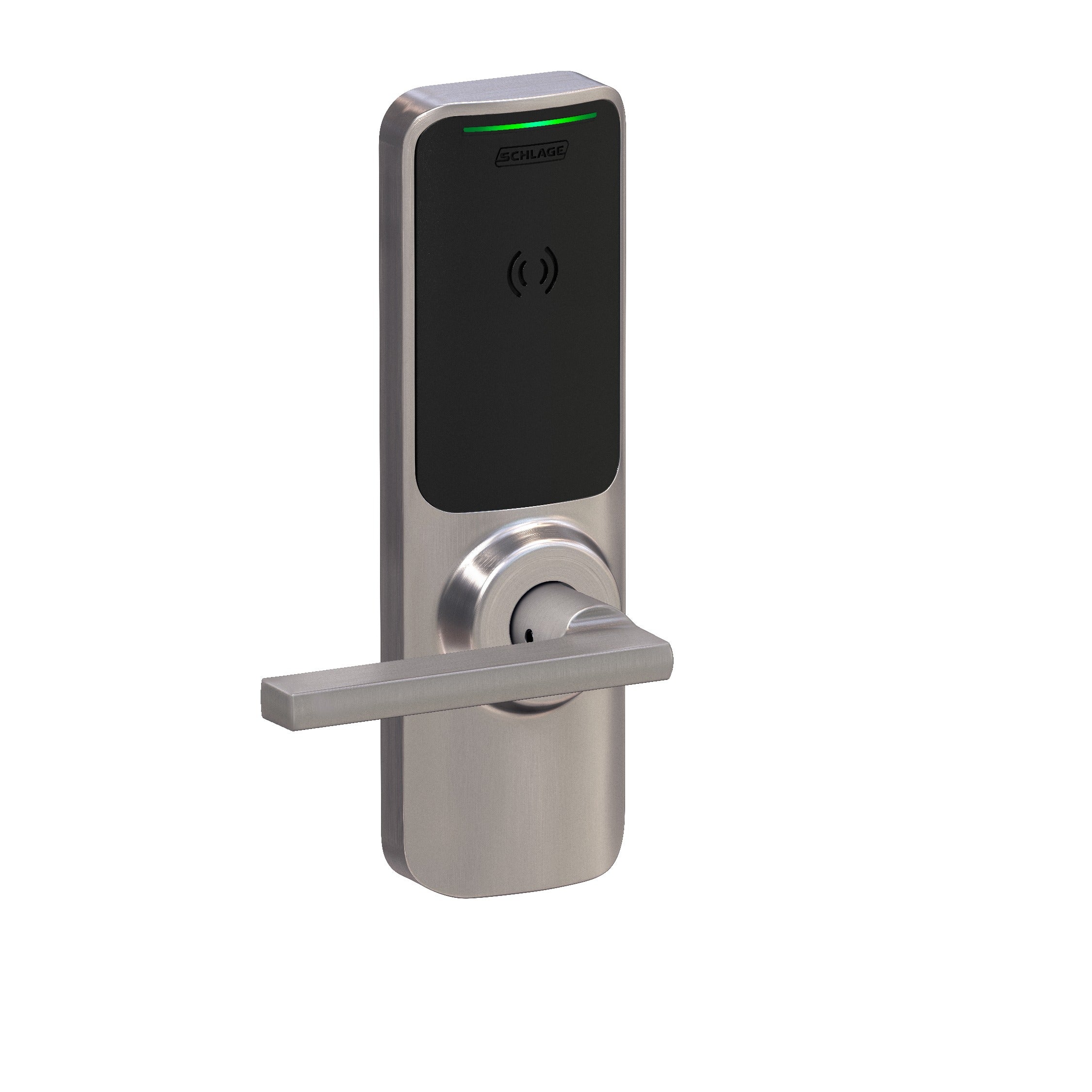

Schlage Electronics XE360MOFDSMP6LAT619 Wireless Mortise Lock

Product Description

The SCHLAGE ELECTRONICS XE360MOFDSMP6LAT619 is a wireless mortise lock from the XE360 Series, designed for offline deadbolt function with integrated smart mobile reader capability. This unit mounts in a standard mortise pocket and delivers electronic access control without a hardwired network connection, making it well suited for doors where wiring runs are impractical. It ships with the Latitude lever trim and a 6-pin C keyway cylinder in a Satin Nickel finish. Licensed locksmiths, commercial door hardware installers, and access control technicians are the primary trades that specify and install this hardware.

This lock is intended for commercial, multi-family, and institutional applications where offline credential management is required. The smart mobile reader supports mobile credential presentation, reducing dependence on traditional card or fob-based systems. The Latitude lever style is a common commercial trim profile appropriate for office corridors, apartment entry doors, and institutional interior doors requiring controlled access. The 6-pin C keyway cylinder allows keying into existing master key systems that use the C keyway profile.

Key Features

• Offline deadbolt function operates without a continuous network connection
• Integrated smart mobile reader supports mobile credential access
• Mortise lock body fits standard commercial mortise door preparations
• Latitude lever trim in Satin Nickel finish suits commercial and multi-family aesthetics
• 6-pin C keyway cylinder supports integration with existing master key systems
• Sold as a single unit (EA), complete assembly

Compatibility

Designed as an OEM-style replacement or new-installation mortise lock for commercial and institutional door applications requiring offline wireless access control with mortise lock body preparation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician familiar with commercial mortise lock preparation and electronic hardware programming. Verify the door thickness, backset, and mortise pocket dimensions match the lock body requirements before installation. De-energize any existing access control wiring and follow all applicable local building and fire codes, including NFPA 80 requirements for rated door assemblies where applicable. Do not force the mortise case into an undersized pocket, as damage to the electronic components may result.
