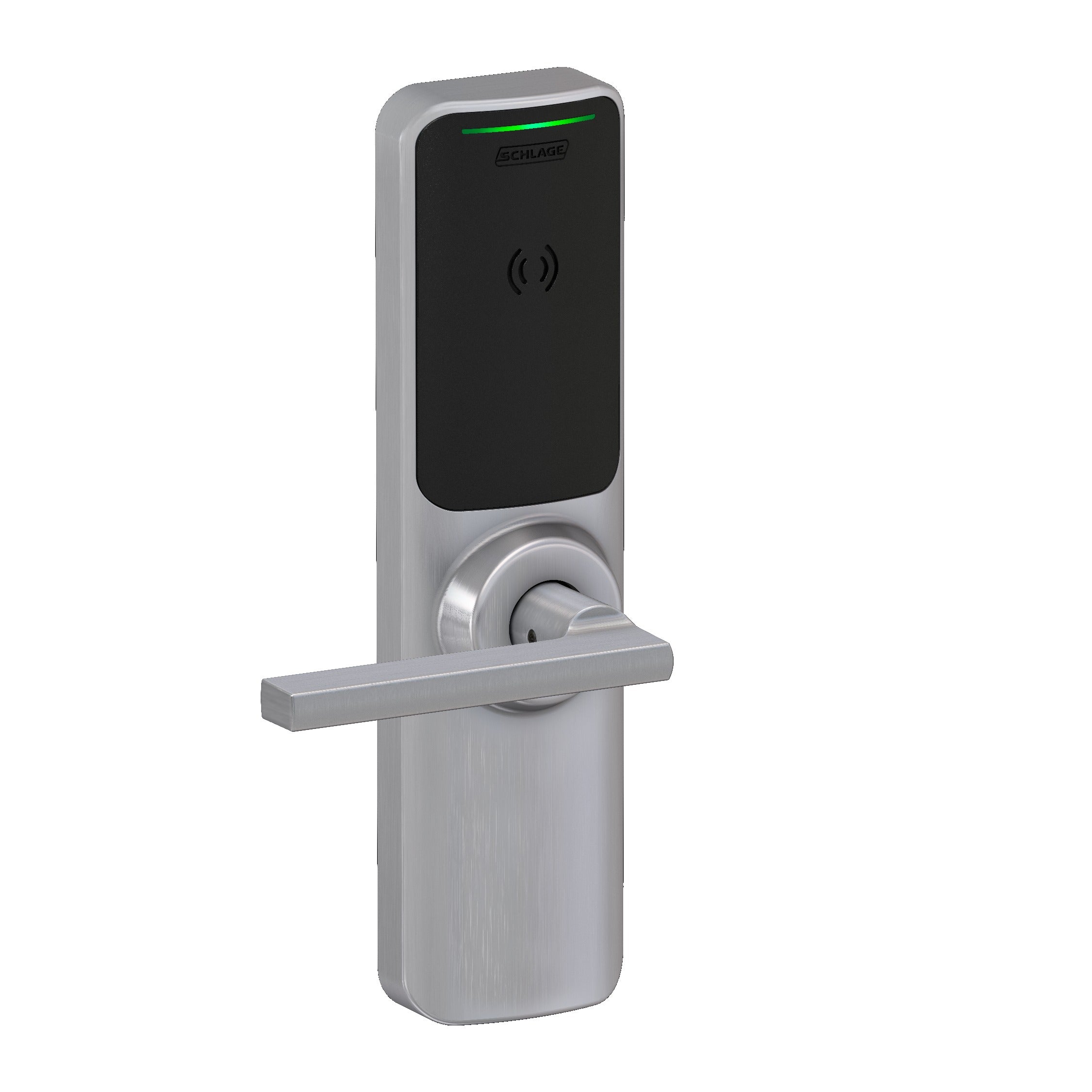

Schlage Electronics XE360EW99ROFISMP6LAT626 Wireless Exit Trim

Product Description

The SCHLAGE ELECTRONICS XE360EW99ROFISMP6LAT626 is a wireless exit trim unit designed for commercial and institutional door hardware applications. Part of the XE360 Series, it features a wide escutcheon plate, a Latitude lever, and a Smart Mobile Reader with offline indicator function. The unit ships in a Satin Chrome finish and accepts a 6 Pin C keyway cylinder. At 6 pounds and measuring 15.75 inches long by 12 inches wide by 4 inches tall, this is a substantial assembly intended for professional installation on exit device-equipped doors.

This trim is engineered to pair with Von Duprin 98/99 Rim devices and provides wireless access control capability without requiring hardwired connections at the door. The offline indicator function alerts technicians when the device is operating outside network communication. The Smart Mobile Reader supports credential management via mobile devices, making it appropriate for commercial buildings, institutional facilities, and multi-tenant properties where flexible access control administration is required.

Key Features

• XE360 Series wireless exit trim with wide escutcheon for Von Duprin 98/99 Rim devices
• Smart Mobile Reader supports mobile credential management and access control administration
• Offline indicator function provides visual status when device is off-network
• Latitude lever design in Satin Chrome finish
• 6 Pin C keyway cylinder compatibility for keyed entry control
• Sold individually as a single assembly

Compatibility

Designed for use with Von Duprin 98/99 Rim exit devices. Consult door hardware specifications to confirm backset, handing, and door prep requirements before ordering.

Installation Notes

Installation of electronic exit trim should be performed by a licensed door hardware specialist or qualified access control technician familiar with ANSI/BHMA standards and local fire egress codes. Disconnect power to the access control system before servicing or mounting hardware. Confirm the Von Duprin 98/99 Rim device is correctly mounted and the door is properly prepared before attaching the trim assembly. Wireless network configuration and credential programming should follow the manufacturer setup documentation after mechanical installation is complete.
