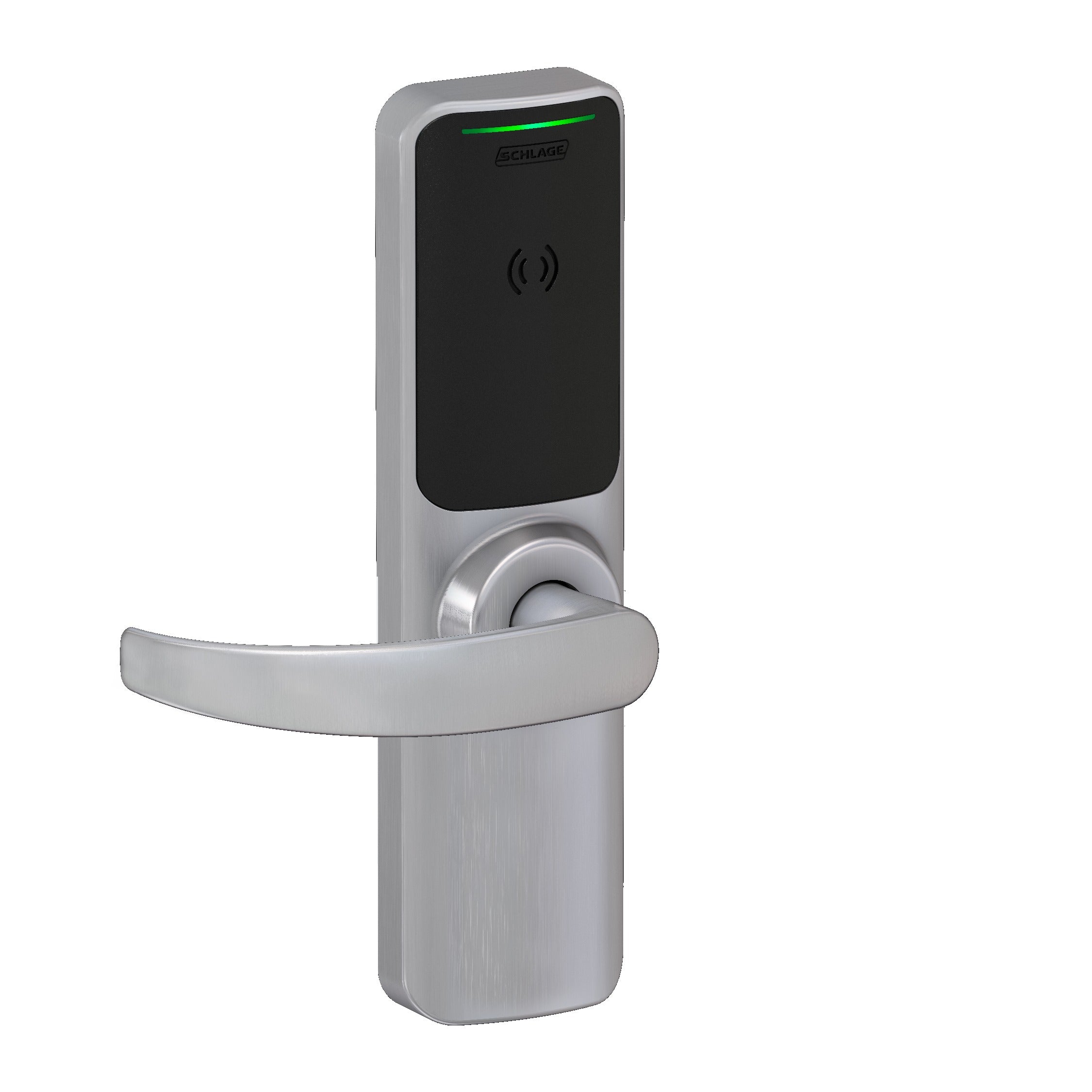

Schlage Electronics XE360EW25ROFISMP6NEP626 Wireless Exit Trim

Product Description

The SCHLAGE ELECTRONICS XE360EW25ROFISMP6NEP626 is a wireless exit trim unit from the XE360 Series, designed for use with the Falcon 25 Rim exit device. It features a wide escutcheon format and integrates an offline indicator function alongside a Smart Mobile Reader for credential-based access control. The Neptune lever handle and 6-pin C keyway provide mechanical key override capability. Finished in satin chrome (626), this trim is engineered for commercial and institutional door applications where both electronic access control and emergency egress must coexist on a single door assembly. Licensed security integrators and commercial locksmiths are the primary installers.

This exit trim is suited for commercial and institutional buildings requiring controlled egress points — such as schools, healthcare facilities, office buildings, and multi-tenant properties. The XE360 Series wireless platform eliminates the need for hardwired power to the door trim, simplifying installation on doors where running wire is impractical. The offline indicator function provides a local status signal when the reader is operating outside of network connectivity. The Smart Mobile Reader supports mobile credential technology for modern access control deployments. Compatible model and system pairings are as specified by the Falcon 25 Rim device configuration.

Key Features

• XE360 Series wireless exit trim — no hardwired power required at the door
• Wide escutcheon format designed for use with the Falcon 25 Rim exit device
• Integrated Smart Mobile Reader supports mobile credential access
• Offline indicator function provides local status feedback without network connectivity
• Neptune lever handle with 6-pin C keyway for mechanical key override
• Satin chrome (626) finish for standard commercial hardware coordination

Compatibility

Designed for use with the Falcon 25 Rim exit device. Specific compatible access control panels, software platforms, and credential types should be confirmed against the XE360 Series product documentation prior to ordering.

Installation Notes

Installation should be performed by a licensed commercial locksmith or certified security integrator familiar with electrified hardware and access control systems. Power down or de-energize any connected access control panel circuits before wiring or pairing the reader. Verify door prep dimensions and rim device compatibility before mounting the trim assembly. Consult local building codes and AHJ requirements for egress hardware compliance prior to installation.
