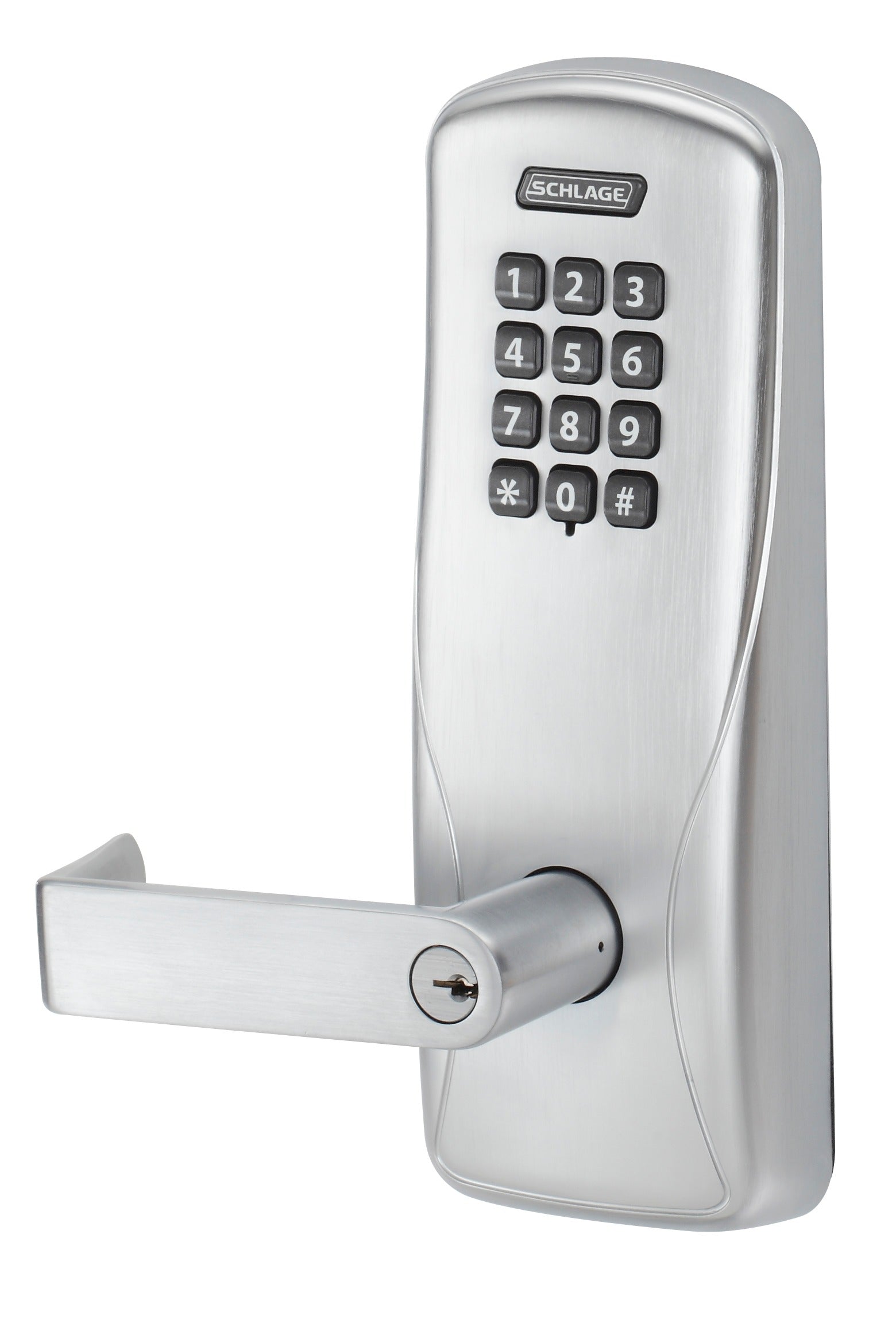

Schlage Electronics CO100MS70KPRHO626 Electronic Mortise Lock

Product Description

The SCHLAGE ELECTRONICS CO100MS70KPRHO626 is a standalone keypad programmable electronic mortise lock designed for classroom and storeroom applications in commercial and institutional buildings. The unit features a Rhodes lever handle, a C keyway cylinder, and a satin chrome (626) finish. It operates as a self-contained access control solution, requiring no external controller or network connection to manage user credentials. Licensed locksmiths, security contractors, and commercial door hardware installers are the primary trades that specify and install this lock. The mortise body integrates the lock mechanism directly into the door prep, providing a robust foundation for high-traffic openings.

This lock is suited for commercial and institutional environments where classroom or storeroom function is required — securing a space so it can only be entered by presenting a valid keypad code, while allowing free egress at all times. Typical applications include K-12 schools, universities, healthcare facilities, and government buildings. The Rhodes lever profile meets ADA lever requirements for accessible hardware. The satin chrome finish coordinates with standard commercial door hardware families.

Key Features

• Standalone keypad operation — no external access control panel or network required
• Mortise lock body for high-security, high-traffic commercial door preps
• Classroom and storeroom function: keypad entry, free egress
• Rhodes lever handle with C keyway cylinder for key override capability
• Satin chrome (626) finish for corrosion resistance and commercial aesthetics
• Programmable credentials manageable directly at the keypad

Compatibility

Designed as an OEM-style standalone electronic mortise lock for commercial and institutional doors prepared for standard mortise lock chassis; verify door prep dimensions and backset requirements before ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with mortise lock prep requirements. Ensure the door is properly prepared for the mortise pocket dimensions before fitting the lock body. Disconnect or verify no power is present in any integrated electrified components before wiring. Follow ANSI and local building code requirements for accessibility and egress hardware on the applicable door type.
