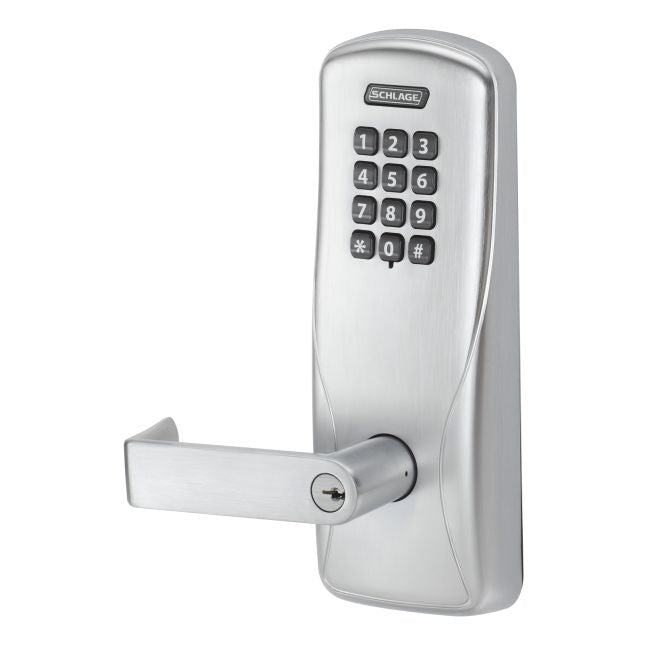

Schlage Electronics CO100CY50KPRHO626J Cylindrical Keypad Lock

Product Description

The SCHLAGE ELECTRONICS CO100CY50KPRHO626J is a standalone programmable electronic cylindrical lock designed for commercial and institutional access control applications. It features a keypad entry interface paired with the Rhodes lever trim in a satin chrome (626) finish. The large format less core (LFIC) cylinder option allows facilities to integrate this lock into existing master key systems without a proprietary core installed at the factory. The unit ships ready for field core installation by a licensed locksmith or security technician. The keypad allows credential-free card access by entering programmed PIN codes directly at the door, making it a practical solution where key management is a priority.

This lock is suited for office and commercial interior or exterior door applications requiring standalone electronic access without a networked access control panel. The cylindrical form factor fits standard door preparations common in commercial construction. The office function allows free egress at all times while controlling entry via keypad. It is typically installed on office doors, storage rooms, server rooms, and similar spaces in commercial, institutional, or multi-family settings where keypad PIN access is preferred over mechanical keys.

Key Features

• Standalone keypad operation — no network or controller required for basic programming
• Large Format Less Core (LFIC) design accepts field-installed interchangeable cores for master key integration
• Office function — free egress at all times, keypad-controlled entry
• Rhodes lever trim in satin chrome (626) finish for commercial aesthetics
• Cylindrical form factor fits standard commercial door preparations
• Programmable access codes for multi-user credential management

Compatibility

Designed as a standalone cylindrical electronic keypad lock for standard commercial door preparations requiring large format interchangeable core (LFIC) compatibility. Specific compatible core brands and model numbers should be confirmed with the manufacturer or a licensed locksmith prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician familiar with commercial cylindrical lock hardware. Power down or remove batteries before servicing or swapping cores. The LFIC cylinder must be sourced and installed separately in the field — do not force a core that does not match the large format specification. Verify door thickness, backset, and door prep dimensions against manufacturer requirements before installation.
