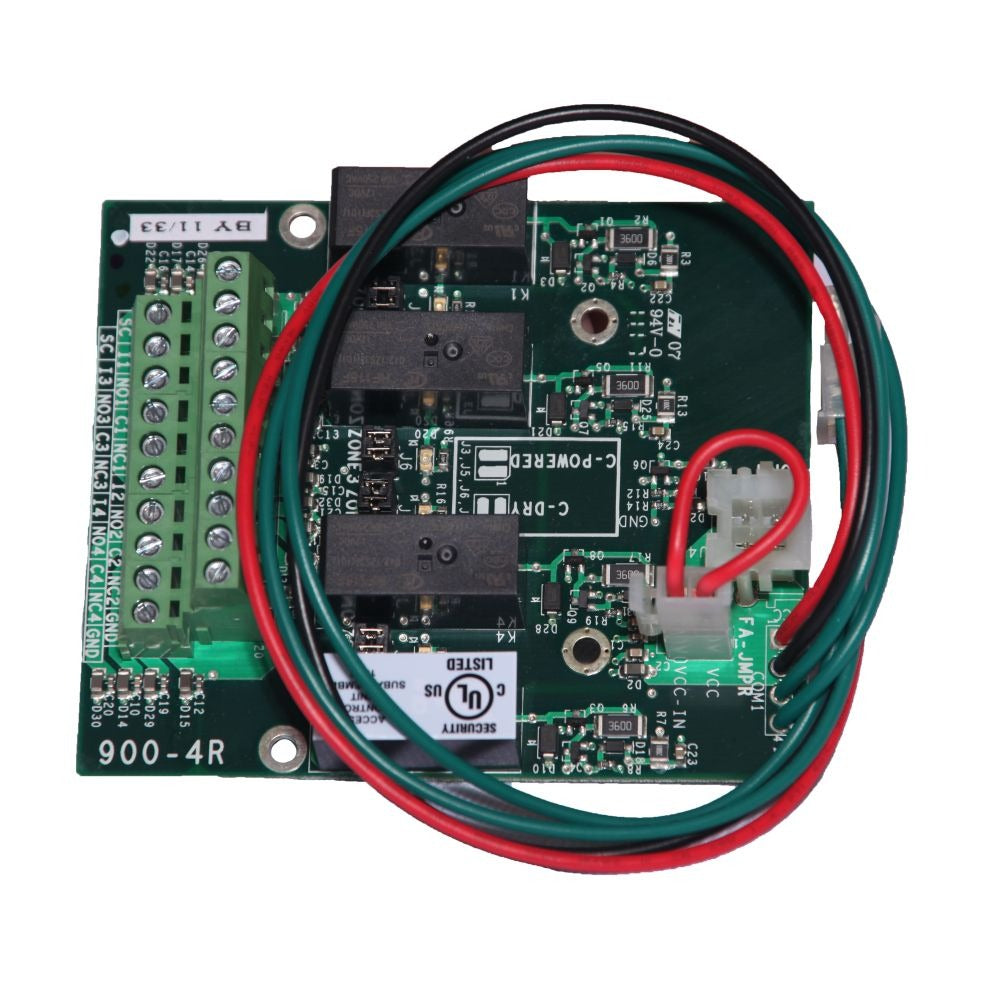

Schlage Electronics 9004R 4-relay Access Control Module

Product Description

The SCHLAGE ELECTRONICS 9004R is a four-relay access control module designed to provide independently switched outputs for electronic security and access control systems. Each of the four relays operates independently, allowing installers to trigger separate doors, gates, locks, or ancillary devices from a single unit. The module measures 7.3 inches in length, 4.4 inches in width, and 2.8 inches in height, making it compact enough for installation inside standard enclosures or control panels. Licensed security integrators and commercial electricians are the primary installers of this type of hardware.

The 9004R is suited for commercial, multi-family, and institutional access control installations where multiple independently controlled outputs are required from one control point. Typical applications include door strike control, gate operators, alarm shunting, and auxiliary device switching across multiple entry points. It is sold as a single unit and is intended for integration into a broader electronic access control system rather than as a standalone device.

Key Features

• Four independently controlled relay outputs allow separate triggering of multiple devices
• Compact form factor at 7.3 x 4.4 x 2.8 inches fits inside standard control enclosures
• Lightweight construction at 0.5 pounds simplifies panel mounting
• Single-unit quantity packaging supports straightforward procurement and inventory management
• Designed for commercial, multi-family, and institutional access control environments

Compatibility

Designed as an OEM-style relay expansion module for use within compatible electronic access control systems. No specific model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed security integrator or commercial electrician familiar with low-voltage access control wiring practices. De-energize the entire access control panel before connecting or disconnecting any relay module. Follow all applicable NEC low-voltage wiring requirements and the system manufacturer documentation for relay output wiring. Do not exceed the rated switching capacity of each relay output.
