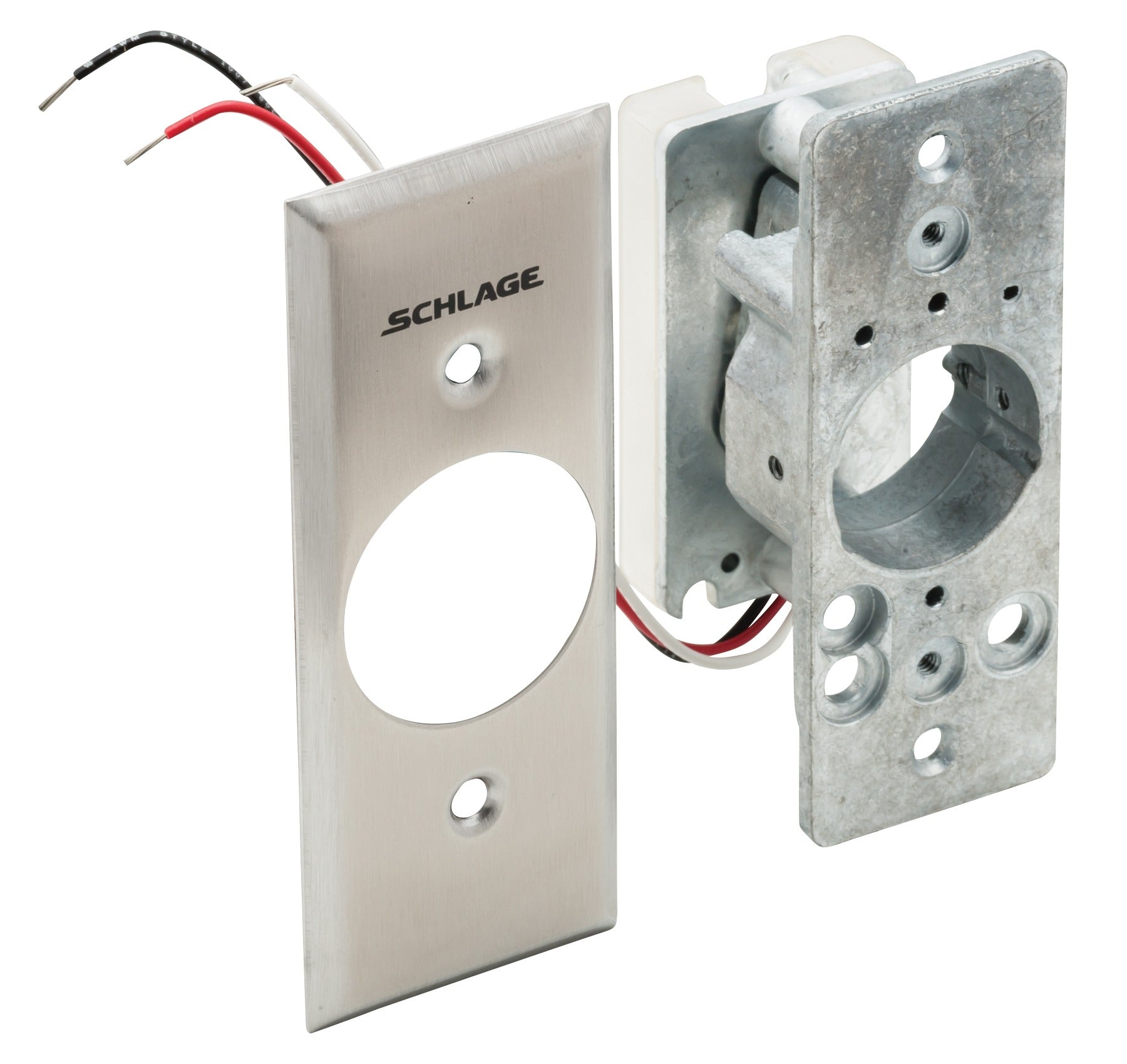

Schlage Electronics 65305NS Narrow Stile Keyswitch Spdt

Product Description

The SCHLAGE ELECTRONICS 65305NS is a heavy-duty narrow stile keyswitch designed for commercial and institutional access control applications. It operates on a single-pole double-throw (SPDT) momentary contact configuration in a single direction, making it well suited for controlling electric strikes, magnetic locks, and other access control hardware. The unit ships in a satin stainless steel finish that withstands heavy use in high-traffic entry points. Licensed security and low-voltage installers typically specify this keyswitch where a keyed manual override or entry control point is required at a narrow stile door frame.

This keyswitch is intended for narrow stile door applications common in commercial storefronts, institutional corridors, and multi-family entry systems. The SPDT momentary output allows integration with a wide range of access control panels and electric locking hardware. Its heavy-duty construction makes it appropriate for locations that see frequent daily operation, such as lobby entries, stairwell doors, and secured perimeter access points.

Key Features

• SPDT momentary contact output for compatibility with common access control panels and electric locking devices
• Single-direction operation for straightforward wiring and predictable switching behavior
• Narrow stile form factor fits standard commercial door frames where space is limited
• Heavy-duty construction rated for high-cycle, high-traffic installations
• Satin stainless steel finish provides corrosion resistance and a neutral aesthetic for commercial environments

Compatibility

Designed as an OEM-style replacement or new-installation keyswitch for narrow stile commercial access control door assemblies where an SPDT momentary keyswitch is specified.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes and NFPA 70 (NEC) requirements. Disconnect and de-energize all connected access control hardware and lock power supplies before wiring or mounting the keyswitch. Confirm that the door frame stile width is compatible with the unit dimensions prior to cutting or drilling. Do not exceed the contact rating of the SPDT switch when connecting to locking devices or control panels.
