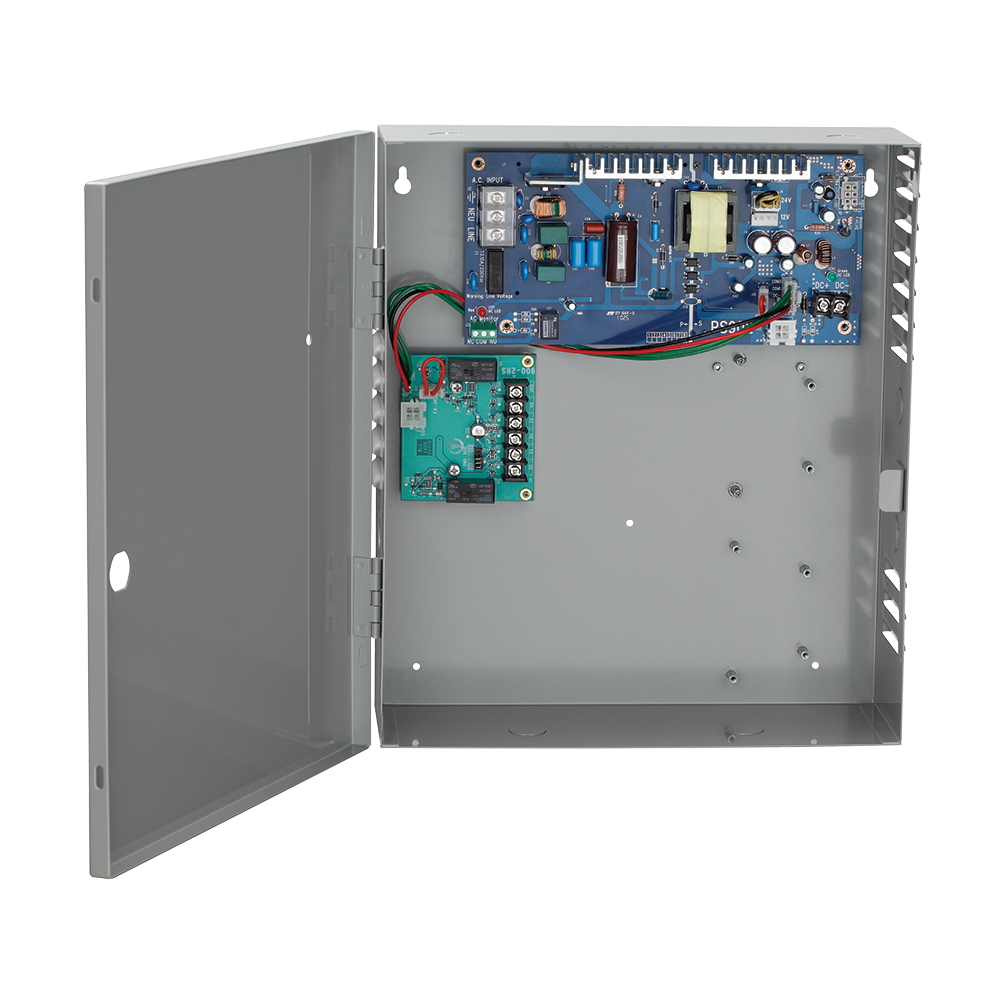

Schlage electronic security PS902 power supplies 2 amp

Product Description

The Schlage Electronic Security PS902 is a 2-amp power supply designed for access control systems. It provides a regulated and filtered output, which protects sensitive devices connected downstream. The unit is configurable for both factory and field use, allowing for tailored application. It includes a separate battery management system to extend battery life while maintaining consistent power output.

• Delivers clean power for sensitive circuitry
• Features overload protection to avoid excessive current
• Selectable 12/24 VDC output for flexibility

Product Highlights

Suitable for various access control applications, the PS902 offers reliable performance with multiple safety features.

Product Information

Standard Information

• Model: PS902
• Brand: Schlage Electronic Security

Technical Specifications

• Input Voltage: 120/240 VAC, 50/60 Hz
• Output Voltage: 12 or 24 VDC, field selectable
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Dimensions: 14 inches H x 12 inches W x 4 inches D
• Weight: 9 pounds
• Output Wattage: 90 Watts
• Compatible Devices: Access control systems
• Fuse Size: AC primary T3.15A, 250VAC
