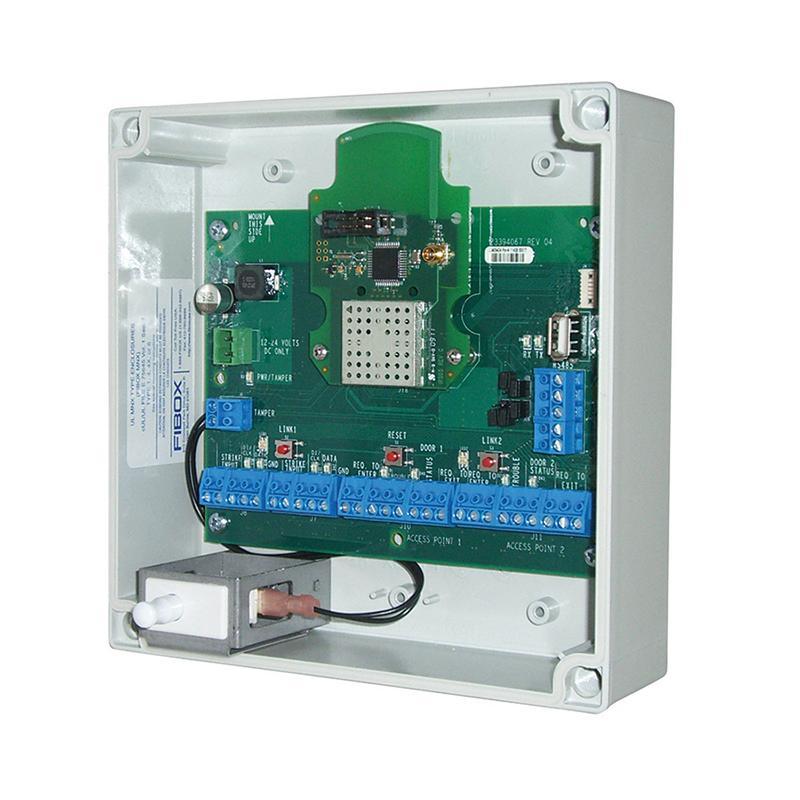

Schlage Electronic Security PIM400-TD2 Panel Interface Board Supports 2 Doors

Product Description

The Schlage Electronic Security PIM400-TD2 Panel Interface Board enables a hardwired access control system without the need for extensive wiring and supports two doors. It integrates smoothly with access control panels using Wiegand or Clock & Data protocols, compatible with up to two wireless devices like AD-400 series locks. The communication is reliable through 900 MHz spread spectrum technology and built-in error detection algorithms.

• Key benefits of a hardwired system without wiring.
• Supports two AD-Series wireless devices.
• Automatic linking to remote wireless access points with ten frequency channels.

Product Highlights

This interface board is ideal for enhancing security frameworks by providing wireless capabilities while retaining the advantages of traditional hardwiring.

Product Information

Standard Information

• Brand: Schlage Electronic Security
• MPN: PIM400-TD2

Technical Specifications

• Frequency Range: 902-928 MHz
• Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
• RF Interference Avoidance: Optional Dynamic Channel Switching
• Transmission/Encryption: AES-128 bit Key (optional)
• Credential Verification Time: < 1 second
• Communication Range: Up to 200 ft (61 m) with obstructions, Up to 1000 ft (305 m) clear line of sight, Up to 2000 ft (609 m) with high gain antenna on PIM400, Up to 4000 ft (1219 m) with high gain antennas on PIM400 and WRI400
• Visual/Audible Communications: 13 LEDs for Status Indicators
• System Interface: Wiegand (data1/data0) or Magnetic Stripe (Clock & Data)
• Power Supply: 12 VDC or 24 VDC
• Voltage Range: 9.5 VDC to 26 VDC
• Max Current Requirement: Up to 250 mA
• Operating Temperature: -31°F to 151°F (-35°C to 66°C)
• Operating Humidity: 0 - 100% condensing
• Data Rate: RF: 40 kbps
• Certifications: NEMA 1, 4, 4X, 6; UL 294, FCC Part 15; Canada RSS 210, RoHS
