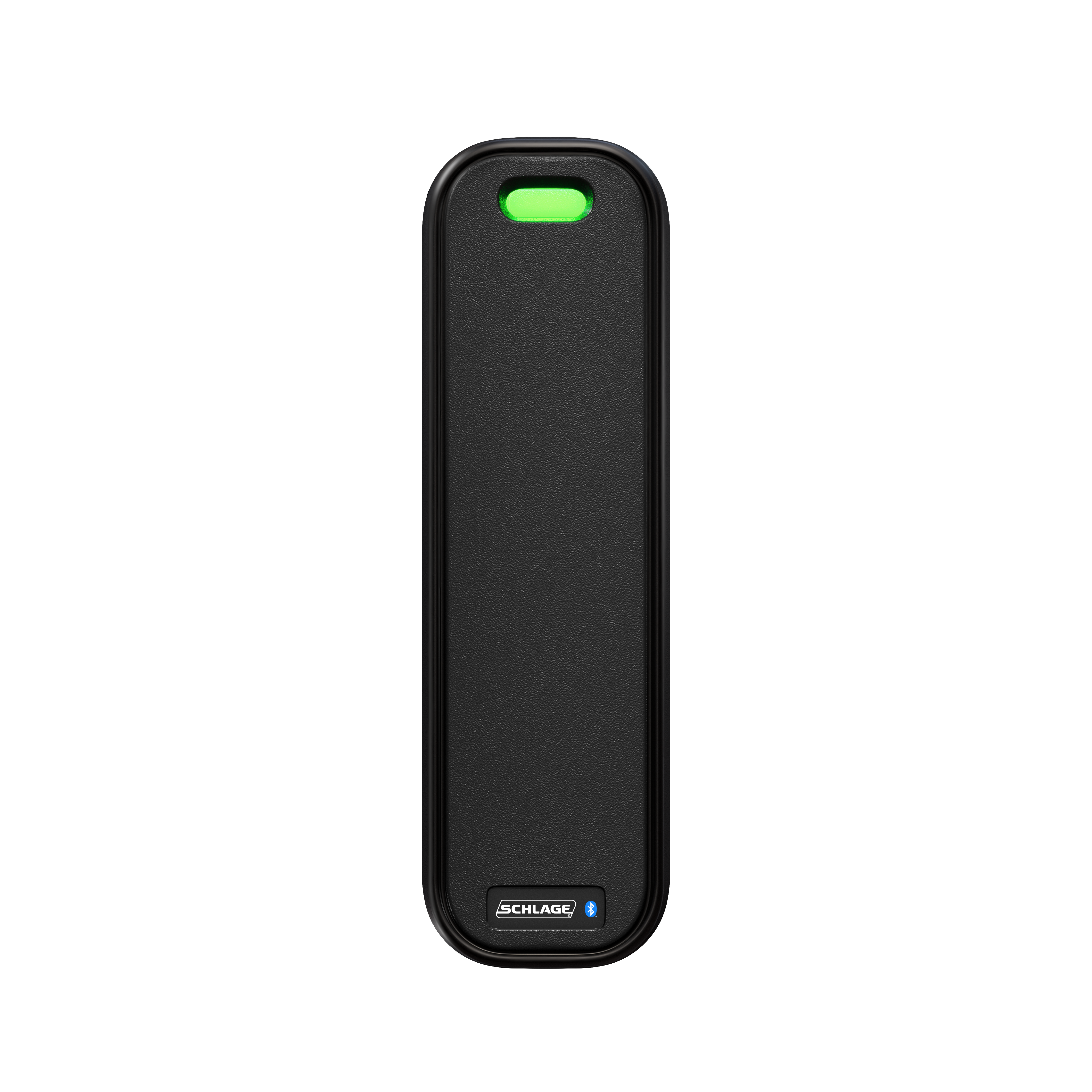

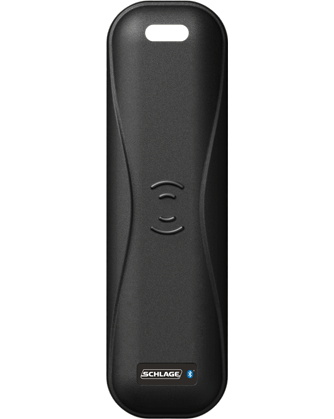

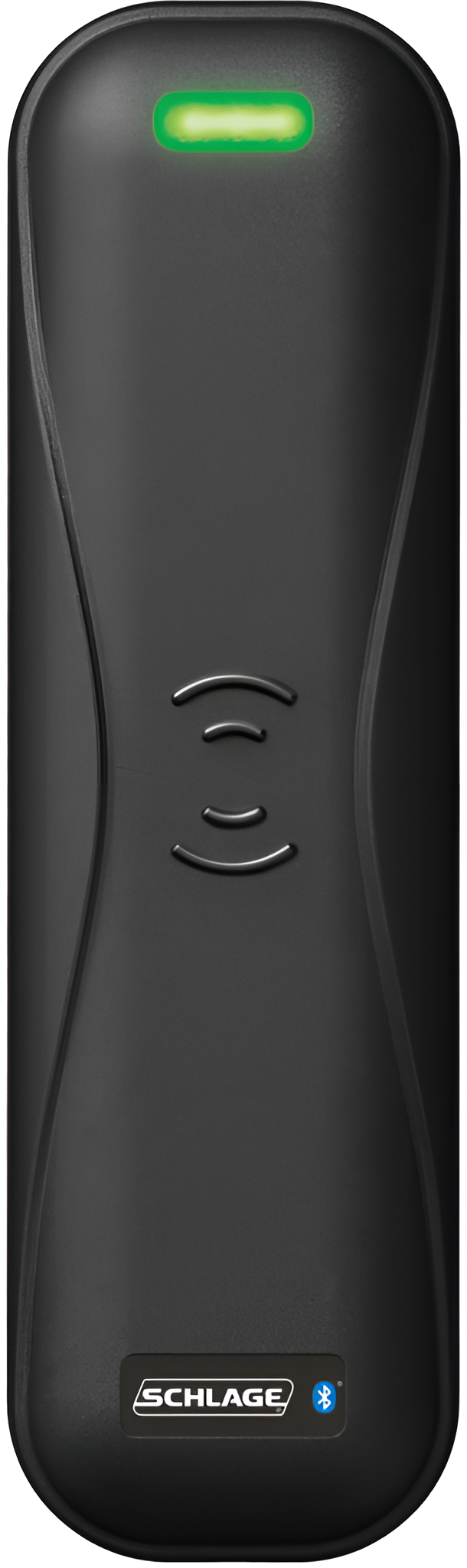

Schlage Electronic Security MTB11-BLK-C1 Mtb11 Mobile Enabled Multi-Technology Mullion Reader

Product Description

The Schlage Electronic Security MTB11-BLK-C1 is a mobile-enabled mullion reader designed for advanced access control. This reader supports multiple technologies, including Bluetooth and NFC, allowing it to read both proximity and smart credentials.

• Supports Schlage Mobile Bluetooth Credentials (BLE) and NFC
• Includes out-of-the-box support for OSDP for secure communication
• Compatible with 125 kHz proximity and 13.56 MHz smart technologies

Product Highlights

This reader enables a shift to more secure credential options, facilitating transitions within access control systems.

Product Information

Standard Information

• Weight: 1 pound
• Dimensions: 5.91 inches x 1.72 inches x 0.81 inches

Technical Specifications

• Frequency: 2.4 GHz, 13.56 MHz, 125 kHz
• System interface: Wiegand / Clock & Data / OSDP
• Power: 5-28 VDC
• Wiring: 22 AWG, 12 conductor, 12 inches length
• Operating temperatures: -31°F to 151°F
• LED indicator: Red, green, or amber with audio feedback
• Material: PBT Polymer
