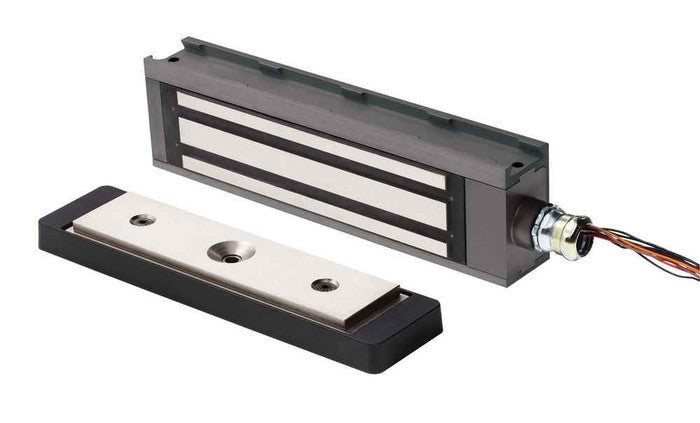

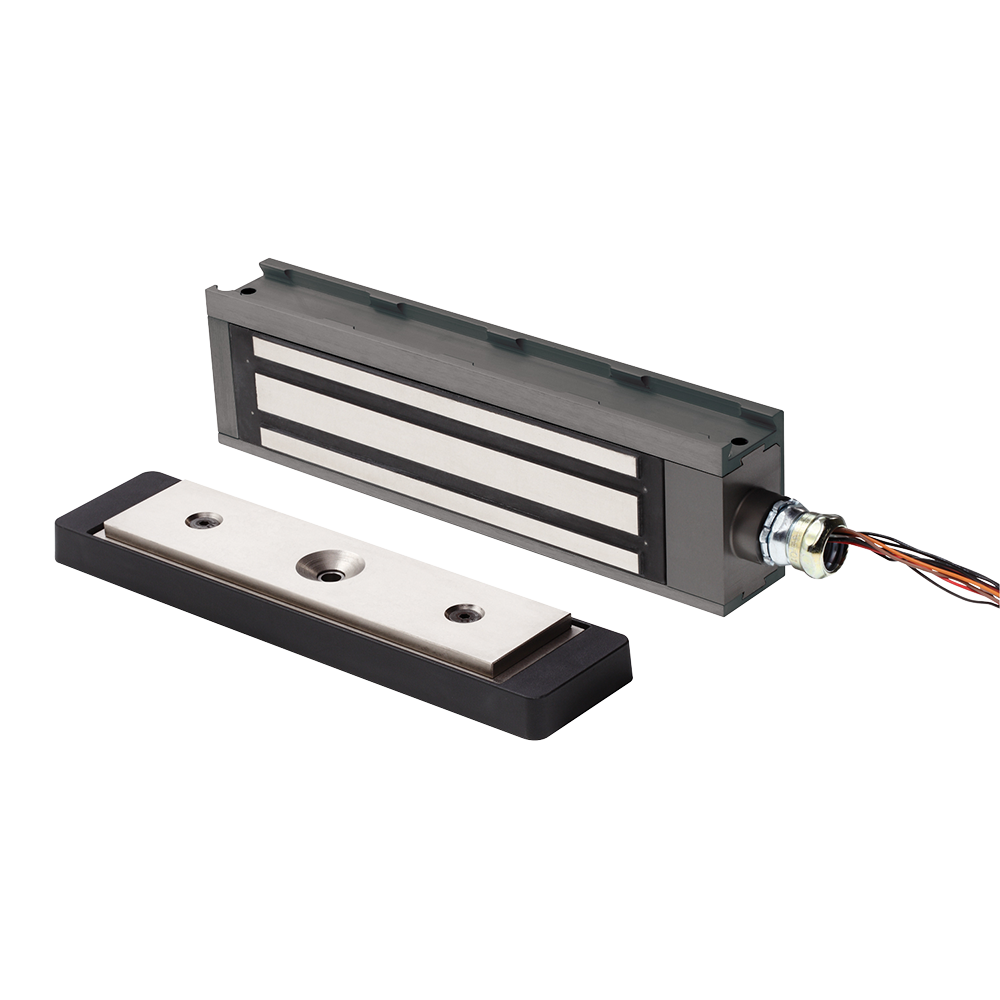

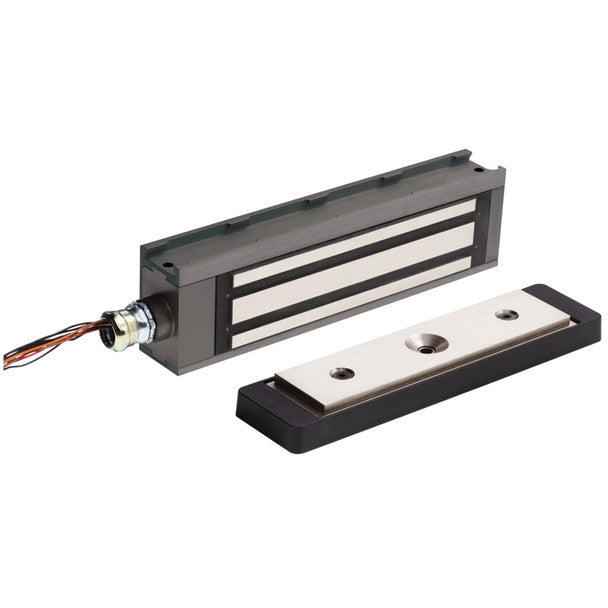

Schlage Electronic Security M490G-628 M490G Magnetic Gate Locks 12/24 VDC

Product Description

The Schlage Electronic Security M490G-628 is an electromagnetic lock designed for outdoor use on both sliding and swinging gates. This lock operates on field-selectable twelve or twenty-four VDC power and is equipped with standard features such as a magnetic bond sensor (MBS) and a door position switch (DPS). It is suitable for environments with high salt exposure and extreme temperatures, ensuring reliable performance.

• Heavy-duty design for a rated hold force of one thousand five hundred pounds
• Universal mounting brackets suitable for various gate types
• Low maintenance with no moving parts and a robust construction

Product Highlights

This lock features a corrosion-resistant finish and is designed for easy installation while accommodating misalignment issues.

Product Information

Standard Information

• Model: M490G
• Voltage: 12/24 VDC

Technical Specifications

• Features: Built-in voltage spike suppressor
• Mounting: Universal brackets for swinging/sliding gates
• Hold Force: 1500 lb
• Current Draw: .65A at 12 VDC, .35A at 24 VDC
• Operating Temperature: -35 degrees to 66 degrees C
• Finish: Electroless nickel plated
• Wire Gauge: 14-22 AWG
• Certification: ANSI/BHMA A156.23 outdoor rated
