Schlage Electronic Security CO100-MS70KP-RHO626 JD CO-100 Standalone Classroom Electronic Mortise Lock

Product Description

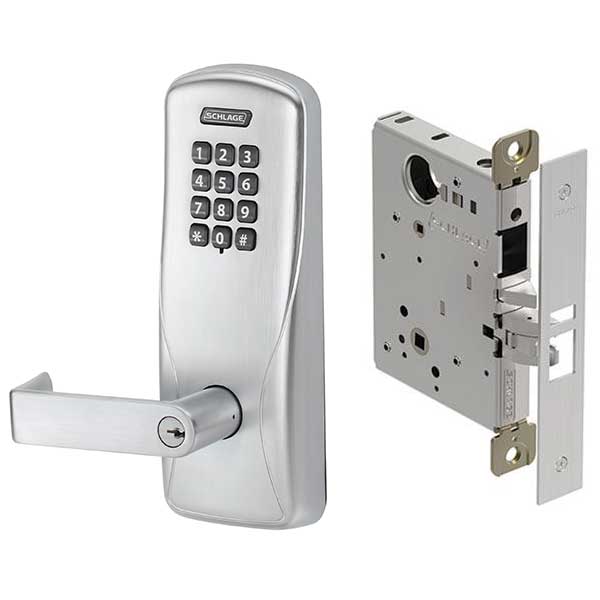

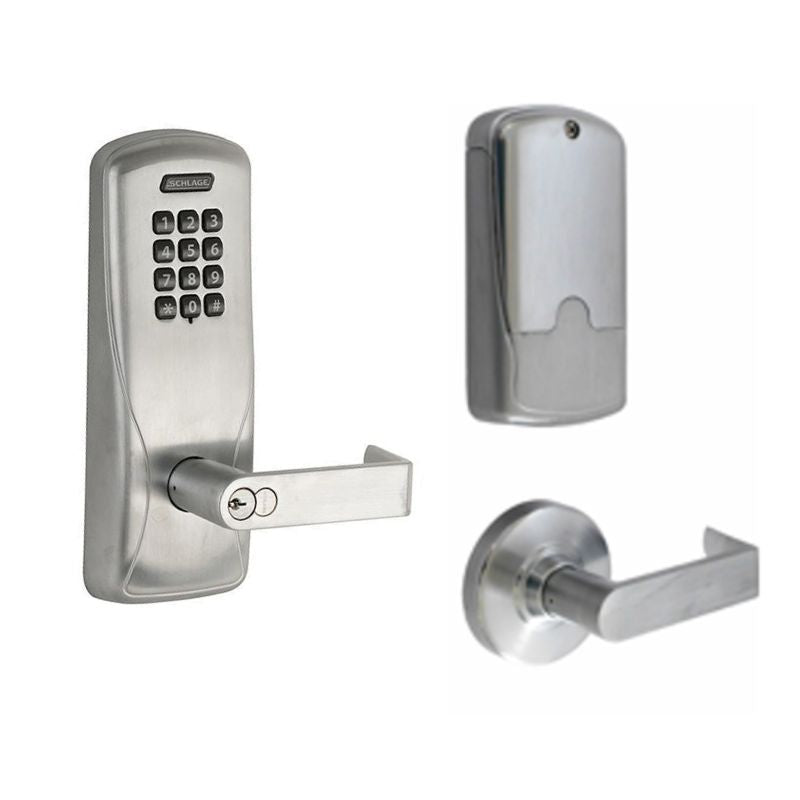

The Schlage Electronic Security CO100-MS70KP-RHO626 JD is a standalone electronic mortise lock suitable for classrooms. This lock allows manual programming for user rights with unique PIN codes, reducing the need for multiple mechanical keys. It enhances key system security by granting access through easily managed PIN codes directly at the door.

• Standalone lock for classroom use
• Manually programmable PIN codes
• Stores user rights on the lock

Product Highlights

Product Information

Standard Information

• Brand: Schlage

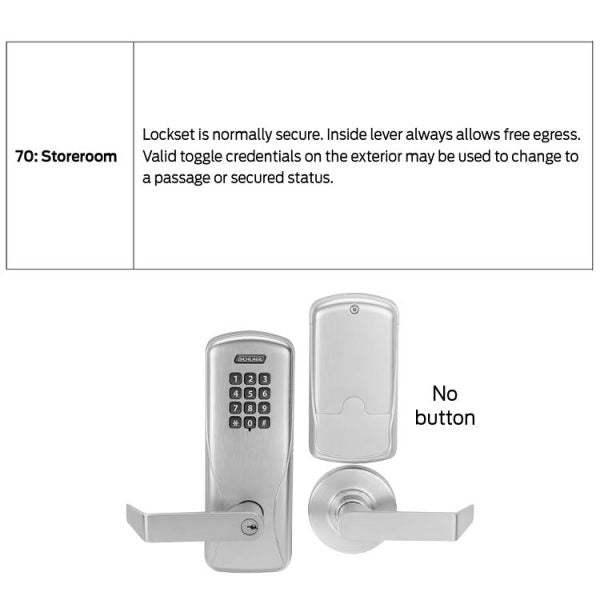

• Lock Function: Storeroom

Technical Specifications

• Lever Design: RHO (Rhodes)
• Cylinder & Keys: 6-pin conventional, keyed different, with 2 keys
• Keyway: Schlage C Keyway, Schlage S123 Keyway
• Latchbolt: 3.5 inches throw stainless steel latch with anti-friction tongue
• Backset: 2-3/4 inches
• Case Size: 4-7/16 inches x 6-1/16 inches x 1 inch
• Armored Front: 1-1/4 inches x 5 19/32 inches x 7/32 inches
• Strike: 4-7/8 inches x 1-1/4 inches ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294
• Handing: Handed – Field Reversible
• Door Thickness: 1-3/4 inches
• Users: Up to 500
• Power: 4 AA batteries
• Battery Life: Up to 2 years with 4 AA batteries
• Door Applications: Interior or exterior doors – ANSI/BHMA A156.25 full outdoor
• Warranty: 1 Year
