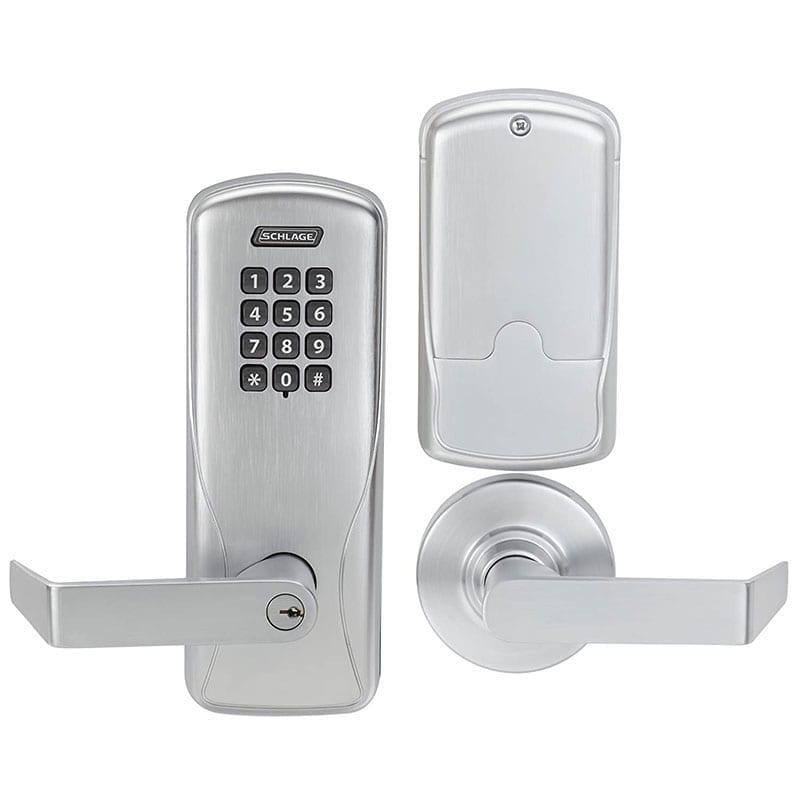

Schlage Electronic Security CO100-CY70KP-RHO643E Grade 1 Standalone Electronic Cylindrical Lock

Product Description

The Schlage Electronic Security CO100-CY70KP-RHO643E is a standalone keypad-entry lock suitable for up to five hundred unique users through the use of PIN codes. This lock’s design helps reduce reliance on mechanical keys by enabling user rights to be stored directly on the lock. Administrator-level users can easily manage the lock functions and user PINs directly via the keypad. The device also features a storeroom function and comes with four AA batteries that provide an extended battery life of up to two years.

• Standalone keypad lock accommodating up to five hundred users.
• Ideal option for reducing key distribution.
• Compliant with ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certification, and UL 294 Listing.

Product Highlights

Versatile keypad entry lock for enhanced security in residential and commercial settings.

Product Information

Standard Information

• Brand: Schlage
• Usage: Heavy Duty

Technical Specifications

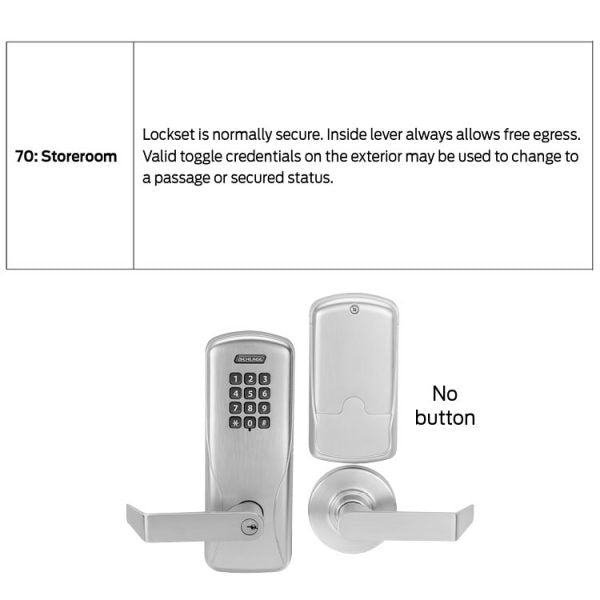

• Lock Function: Storeroom
• Lever Design: RHO (Rhodes)
• Cylinder & Keys: 6-pin conventional, keyed different, includes two keys
• Keyway: Schlage C Keyway, Schlage S123 Keyway
• Latch: Half-inch throw, deadlocking, faceplate dimensions are one and one-eighth inches by two and one-quarter inches
• Backset: Two and three-quarter inches
• Strike: Four and seven-eighths inches by one and one-quarter inches ASA/ANSI strike with curved lip
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294
• Handing: Non-Handed
• Door Thickness: One and three-quarter inches
• Power: Four AA batteries
• Battery Life: Up to two years with four AA batteries
• Door Applications: Suitable for interior or exterior doors; meets ANSI/BHMA A156.25 full outdoor standards
• Warranty: One Year
