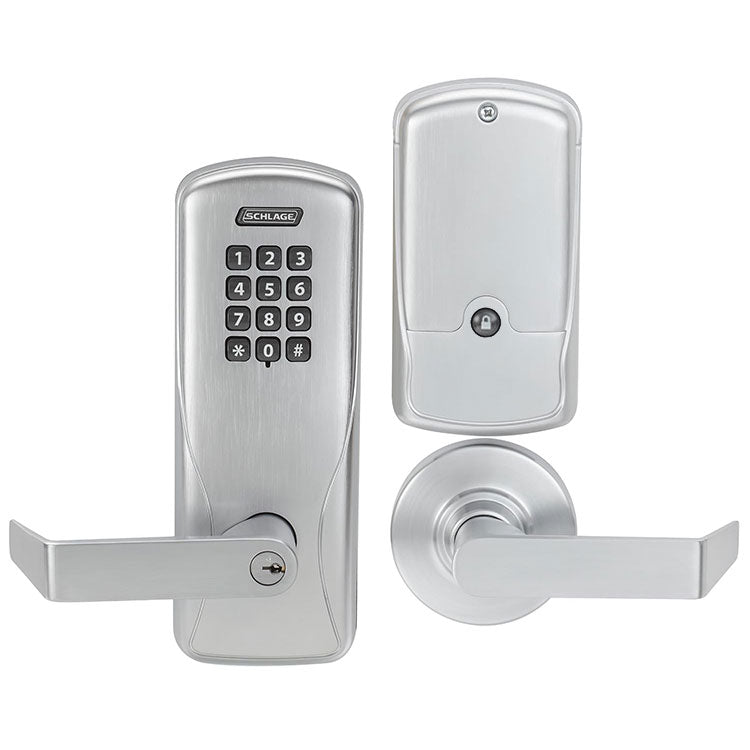

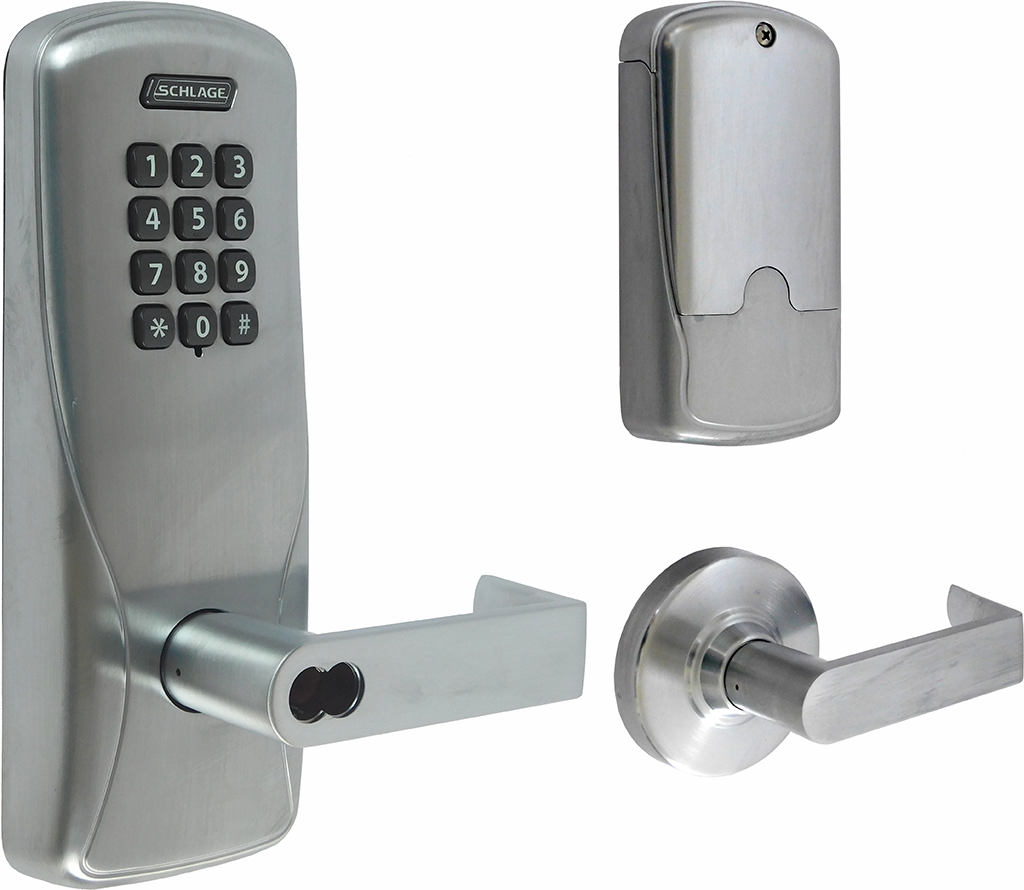

Schlage Electronic Security CO100-CY40KP-RHO626 BD Electronic Keypad Lock Privacy Function Rhodes Lever

Product Description

The Schlage Electronic Security CO100-CY40KP-RHO626 BD is an electronic keypad lock designed for privacy functions. This Grade 1 standalone cylindrical lock features a Rhodes lever and supports up to five hundred unique users through PIN codes. Administrators can program the lock directly at the door to manage user PINs and settings.

• Up to five hundred unique 3 to 6 digit PIN codes

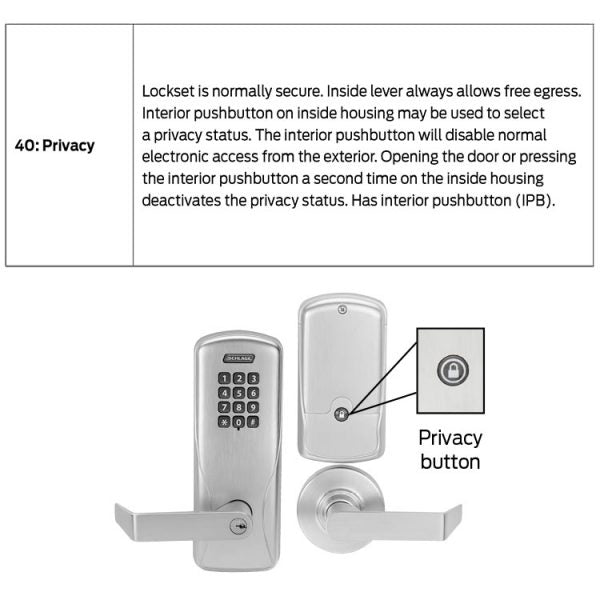

• Interior pushbutton for privacy access control
• Certified ANSI/BHMA A156.25 and Grade 1

Product Highlights

The Schlage Electronic Keypad Lock offers secure access control with its high-grade locking mechanism and user-friendly keypad.

Product Information

Standard Information

• Brand: Schlage
• Lock Function: Privacy

Technical Specifications

• Lever Design: RHO (Rhodes)
• Cylinder & Keys: 6-pin conventional, keyed different, with two keys
• Keyway: Schlage C Keyway
• Reader Type: Keypad
• Latch: 1/2 inch throw, deadlocking – 1-1/8 x 2-1/4 face
• Backset: 2-3/4 inches
• Strike: 4-7/8 x 1-1/4 ASA/ANSI strike with curved lip
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294
• Handing: Non-Handed
• Door Thickness: 1-3/4 inches
• Users: Up to 500
• Power: 4 AA batteries
• Battery Life: Up to 2 years with 4 AA batteries
• Warranty: 1 Year
